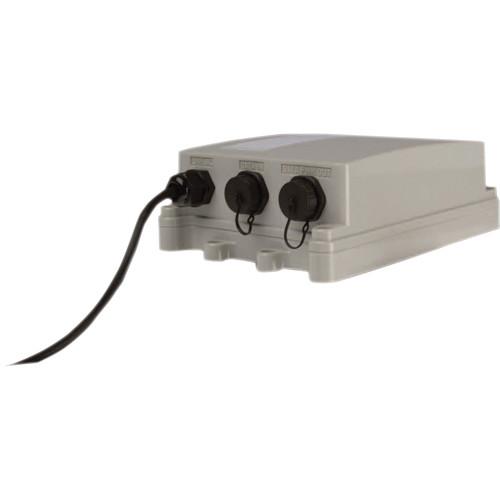

The Axis Communications T8123-E 30 W Outdoor Midspan (1-Port) offers an easy, fast, and cost-effective solution for powering network video products without the need for additional power supplies or enclosures. This PoE+ midspan can be connected to the mains power; it transforms the power and injects it into the network cable enabling AXIS network video products to receive data and power over the same Ethernet cable.

This high PoE (Power over Ethernet) midspan makes it easier to install network video products in areas where power cabling and outlets are unavailable, thereby reducing installation costs. The midspan is used to power all network devices that are IEEE 802.3at compliant, and can be used with all Axis network video products with built-in PoE support.

The midspan has an IP66-rated RJ-45 connector; the installer does not have to open the outdoor midspan but just connect the mains cable and the network video product. This outdoor-ready midspan is IP66 and NEMA 4X rated, with extended temperature range from -40 to 149°F (-40 to 65°C) at a certain output power.

The AXIS T8123-E also offers surge protection for both AC and PoE ports, thus ensuring that the outdoor equipment is protected from power surges.
If you own a Axis Communications power over ethernet (poe) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Axis Communications T8123-E 30 W Outdoor Midspan 5030-234 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Axis Communications T8123-E 30 W Outdoor Midspan 5030-234:
Midspan
Function Data and power are fed to a network video product through an Ethernet cable
Use together with a PoE+ splitter for a network video product without built-in PoE support
Data Rate 10/100/1,000 Mbps
Data & Power
Connectors Shielded rugged RJ-45 (with gasket), EIA 568A, and 568B
Power Cable Pre-installed 9.84' (3 m) shielded cable, pigtail
Wiring Data provided over pairs 1/2 and 3/6 for 10/100 Ethernet, over all 4 pairs for Gigabit Ethernet
Power over pairs 4/5 (+) and 7/8 (-)
Output Power 55 VDC (maximum 30 W)
Input Power AC Input Voltage: 100 to 240 VAC
AC Frequency: 50 to 60 Hz
Installation & Management Outdoor ready plug-and-play installation; automatically detects PoE- and PoE+-enabled devices and supplies inline power
General
Casing Polycarbonate casing; IP66 and NEMA 4X rated
Color: RAL 9002
Compliance RoHS, WEEE, CE, IEEE 802.3at compliant
Mounting Wall and pole mounting
Approvals Emission / Immunity:FCC part 15, Class B with FTP cabling, EN 55022 Class B, EN 55024, EN 61000-4-5 Class 5 (6kV CM), VCCI, ICES-003, KCC, C-tick, CQC
Safety:UL 60950-1 & UL 60950-22 (UL/cUL), GS Mark, CB, KC, S-mark
Dust and Water Intrusion:IEC 60529 IP66, NEMA 250 Type 4X, ASTM B-117
Surge Protection:Designed to meet GR-1089-CORE lightning protection demands, ITU-T K.20 6 kV on AC lines
Operating Conditions Humidity 10 to 100% RH (condensing)
-40 to 131°F (-40 to 55°C ) at 30 W
-40 to 149°F (-40 to 65°C) at 15.4 W
Storage -40 to 185°F (-40 to 85°C)
Humidity maximum 95% RH (non-condensing)
Dimensions (H x W x D) 2.8 x 5.9 x 0.9" (70 x 150 x 23 mm)
Weight 2.4 lb (1 kg)
Packaging Info
Package Weight 3.2 lb
Box Dimensions (LxWxH) 10.9 x 9.0 x 3.6"
The user manual for the Axis Communications T8123-E 30 W Outdoor Midspan 5030-234 can be downloaded in .pdf format if it did not come with your new power over ethernet (poe), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Axis Communications users keep a unique electronic library for Axis Communications power over ethernet (poe)s, where you can use our link to download the user manual for the Axis Communications T8123-E 30 W Outdoor Midspan 5030-234.

The user manual lists all of the functions of the Axis Communications T8123-E 30 W Outdoor Midspan 5030-234, all the basic and advanced features and tells you how to use the power over ethernet (poe). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Axis Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Axis Communications T8123-E 30 W Outdoor Midspan 5030-234. User manuals are also available on the Axis Communications website under Surveillance - Surveillance Video - Wired Networking - Power over Ethernet (PoE).
