User manual AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV

Operating instructions and pdf manual for use - AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV User manual, User manual AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV, AXRTEC, AXR-A-1040BV, Bi-Color, LED, Light, Panel, AXR-A-1


User manual for AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV
  • Manufacturer: AXRTEC
  • Basic description and contents of package
  • Product classification: Lighting & Studio - Continuous Lighting - LED Lights
  • Safety instructions
  • Startup and operation of the led lights
  • Tips for setting up your AXRTEC
  • Settings and expert assistance
  • Contact AXRTEC service
  • Troubleshooting
  • Warranty information
  • Price: 675 USD
AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV
Click to enlarge image

We recommend checking out our discussion threads on the AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV, which address similar problems with connecting and setting up LED Lights AXRTEC.



User manual for the AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV

The user manual for the AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV provides necessary instructions for the proper use of the product Lighting & Studio - Continuous Lighting - LED Lights.

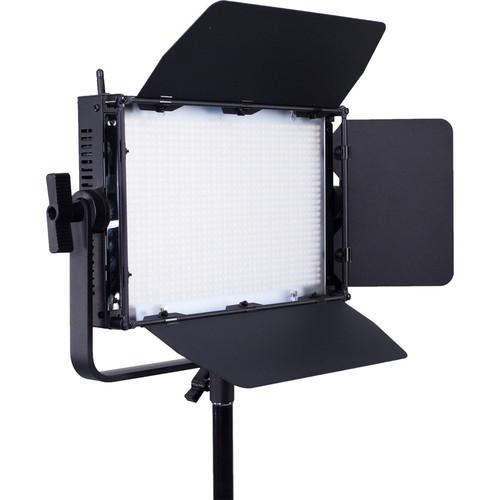

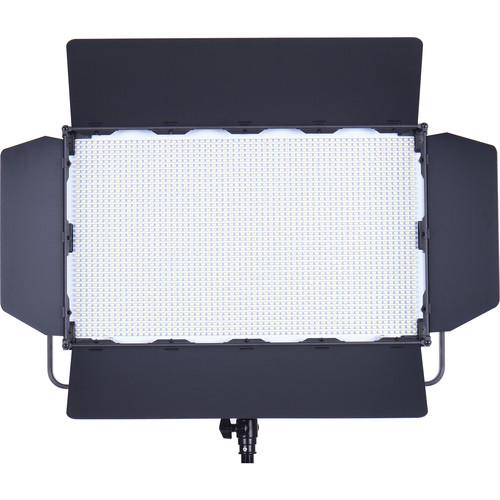

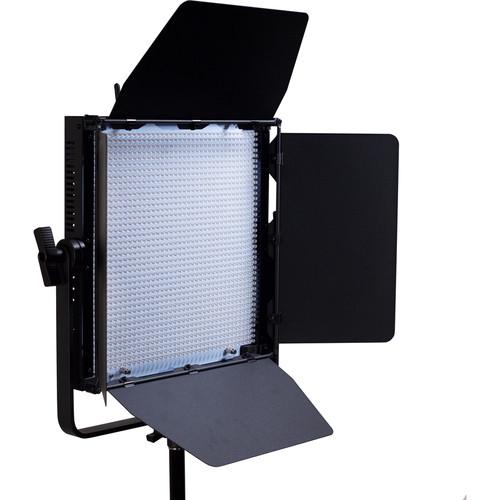

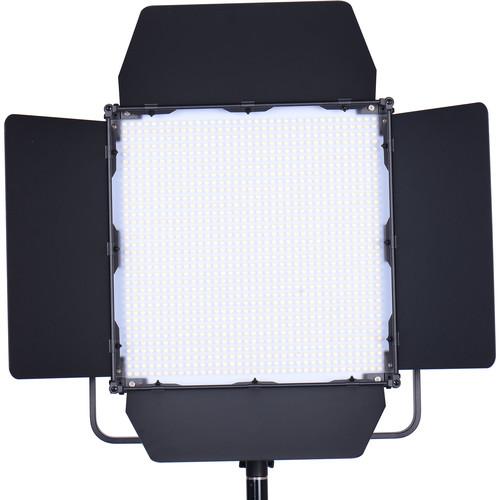

The AXR-A-1040BV Bi-Color LED Panel with V-Mount Battery Plate & DMX from AXRTEC is a variable color LED panel with 1040 LEDs that allows you to select color temperatures from 3200K to 5600K with a simple twist of a knob. Light intensity is also variable from 100 to 0%, making the LED panel a very flexible lighting tool. The AXR-A-1040BV can be controlled locally or remotely with the included 2.4 GHz remote at distances up to 164' or via DMX. The light runs on 100-240 VAC current with the included adapter or on batteries via the onboard V-Mount battery plate for outdoor and on-location use.
If you own a AXRTEC led lights and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV:
Light Source 1040 LEDs
Lamp life: 50,000 hr.
Output Power 32 W
Lumens 3,840
Color Range 3200 to 5600 K
Light Intensity 3' (0.9 m)
CCT 5546 K: 5732 lux, 533 fc
CCT 4439 K: 5299 lux, 492 fc
CCT 3089 K: 3987 lux, 370 fc

6' (1.8 m)
CCT 5546 K: 1396 lux, 130 fc
CCT 4423 K: 1390 lux, 129 fc
CCT 3069 K: 1151 lux, 107 fc

9' (2.7 m)
CCT 5465 K: 648 lux, 60 fc
CCT 4433 K: 312 lux, 57 fc
CCT 3076 K: 500 lux, 46 fc

12' (3.7 m)
CCT 5460 K: 360 lux, 33 fc
CCT 4409 K: 351 lux, 33 fc
CCT 3089 K: 289 lux, 27 fc
CRI ≥ 95
Beam Angle 45°
Dimming 10 to 100%
Remote Control Via included 2.4 GHz remote (range 154': 50 m+)
DMX 512 Connectors 2 x RJ45 (DMX adapter included)
Mount Yoke with 5/8" (16 mm) receiver
Battery Plate Type V-Mount
Operating Voltage Voltage: 13 - 19 VDC
Power adapter: 15 VDC, 4 A GX16-2
Input voltage: 100 - 240 VAC, 50/60 Hz
Dimensions 13 x 8.26 x 1.9" (330 x 210 x 48.5 mm)
Weight Not specified by manufacturer
Packaging Info
Package Weight 3.5 lb
Box Dimensions (LxWxH) 18.4 x 13.7 x 6.4"
The user manual for the AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV can be downloaded in .pdf format if it did not come with your new led lights, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other AXRTEC users keep a unique electronic library for AXRTEC led lightss, where you can use our link to download the user manual for the AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV.

The user manual lists all of the functions of the AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV, all the basic and advanced features and tells you how to use the led lights. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from AXRTEC service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the AXRTEC AXR-A-1040BV Bi-Color LED Light Panel AXR-A-1040BV. User manuals are also available on the AXRTEC website under Lighting & Studio - Continuous Lighting - LED Lights.
