User manual Behringer CX2310 Crossover CX2310

Operating instructions and pdf manual for use - Behringer CX2310 Crossover CX2310 User manual, User manual Behringer CX2310 Crossover CX2310, Behringer, CX2310, Crossover, CX2310, Video


User manual for Behringer CX2310 Crossover CX2310

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Behringer  CX2310 Crossover CX2310
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Crossovers
  • Safety instructions
  • Startup and operation of the crossovers
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
  • Price: 80 USD
We recommend checking out our discussion threads on the Behringer CX2310 Crossover CX2310, which address similar problems with connecting and setting up Crossovers Behringer.



User manual for the Behringer CX2310 Crossover CX2310

The user manual for the Behringer CX2310 Crossover CX2310 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Crossovers.

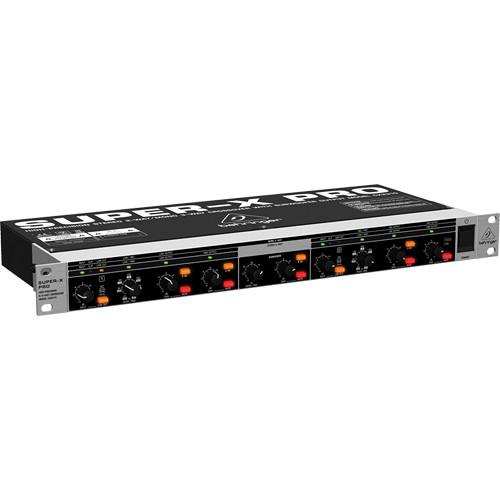

The CX2310 SUPER-X PRO from Behringer is an active frequency crossover enabling two-way stereo or three-way mono operation. Each band features two 24dB Linkwitz-Riley filters, as well as individual polarity switches for each output that allow for quick and easy runtime compensation for various driver and horn types.
If you own a Behringer crossovers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer CX2310 Crossover CX2310 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Behringer  CX2310 Crossover CX2310Download user manual for Behringer CX2310 Crossover CX2310
(PDF file, 1.43 MB)
Additional parameters of the Behringer CX2310 Crossover CX2310:
Filter Type 24dB per octave Linkwitz-Riley, state-variable
Operating Modes Stereo 2-way, switchable to mono 3-way
Crossover Frequencies Stereo Mode Frequencies
  • Low/High: 44Hz to 930Hz (440 Hz to 9.3 kHz using x10 switch)

Mono Mode Frequencies

  • Low/Low-Mid: 44Hz to 930Hz (440 Hz to 9.3 kHz using x10 switch)
  • Low/High: 44Hz to 930Hz (440 Hz to 9.3 kHz using x10 switch)
  • High-Mid/High: 440Hz to 9.3kHz
Gain Range +/-6dB
Front Panel Switches Mute (individual per band)
Phase (individual per band)
Low cut (per side)
Inputs 2 x XLR
Outputs 5 x XLR
Maximum Input Level +22dBu typical, balanced or unbalanced
Maximum Output Level +20dBm, balanced or unbalanced
Frequency Response 5Hz to 60kHz, +/-3dB
Dynamic Range Not specified by manufacturer
Noise SNR: Between >91dBu and >95dBu, depending on configuration
Dimensions (WxDxH) 19" x 8 1/2" x 1 3/4"
Weight 6.6 lbs
Specialties 25Hz sub-sonic filter on each input for low-frequency driver protection
Packaging Info
Package Weight 6.7 lb
Box Dimensions (LxWxH) 20.7 x 12.3 x 4.3"
The user manual for the Behringer CX2310 Crossover CX2310 can be downloaded in .pdf format if it did not come with your new crossovers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Behringer users keep a unique electronic library for Behringer crossoverss, where you can use our link to download the user manual for the Behringer CX2310 Crossover CX2310.

The user manual lists all of the functions of the Behringer CX2310 Crossover CX2310, all the basic and advanced features and tells you how to use the crossovers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Behringer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Behringer CX2310 Crossover CX2310. User manuals are also available on the Behringer website under Pro Audio - Live Sound - Crossovers.
