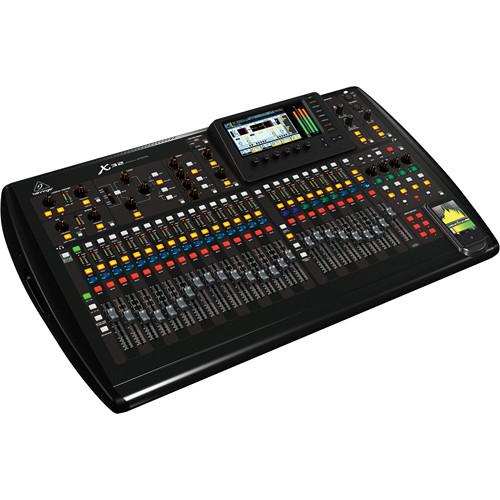

Behringer X32 40-Channel, 25-Bus Digital Mixing Console X32
  • Manufacturer: Behringer
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Digital Mixers
  • Safety instructions
  • Startup and operation of the digital mixers
  • Tips for setting up your Behringer
  • Settings and expert assistance
  • Contact Behringer service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Behringer X32 40-Channel, 25-Bus Digital Mixing Console X32, which address similar problems with connecting and setting up Digital Mixers Behringer.



User manual for the Behringer X32 40-Channel, 25-Bus Digital Mixing Console X32

The user manual for the Behringer X32 40-Channel, 25-Bus Digital Mixing Console X32 provides necessary instructions for the proper use of the product Pro Audio - Recording - Digital Mixers.

The X32 40-Channel, 25-Bus Digital Mixing Console from Behringer provides a wealth of features in a compact design, ideal for professional live and recording applications. The mixer features 32 fully programmable MIDAS-designed mic preamps. The Main LCR (left, center, right) channels, 16 mix busses, and 6 independent matrix mix busses all have 6-band parametric EQs and integrated dynamics processing for excellent sonic tailoring capabilities.

The mixer has 16 analog XLR outputs, as well as 6 balanced line-level 1/4" Aux inputs and outputs and two 1/4" headphone jacks. The talkback section allows you to communicate with the integrated mic or an external mic. The mixer also has a pair of AES50 ports that feature KLARK TEKNIK SuperMAC networking capability for use with 48-channel digital snakes for ultra-low jitter and latency. The system also has an integrated expansion port that ships with a 32 x 32 XUF FireWire/USB audio card installed.

The built-in Virtual FX offers 8 true-stereo FX slots that deliver high-end simulations of popular processors, such as Lexicon 480L and PCM70, EMT250 and Quantec QRS, etc. The integrated high-power 40-bit floating-point DSP system delivers "unlimited" dynamic range, no internal overload, and near-zero latency between inputs and outputs for top-quality performance. The mixer also has 6 mute groups and 8 DCA groups on 8 dedicated faders for easy access.

The intuitive interface offers tremendous ease-of-use with a dedicated channel strip section that has direct-access controls. There is also a high-resolution 7" color TFT display with associated controls and individual RGB backlit graphic LCDs on every channel. The unit has 25 motorized 100mm faders for extensive user-definable control.

The system has a USB flash connector to provide file storage for uncompressed recordings, show presets, and system updates. There are also connections that support the P-16 personal monitoring system, AES/EBU stereo digital outputs, and MIDI. Adjustable line delays are available on all of the physical inputs and outputs.

Other features of the X32 include networked remote control or show setups with the included remote editor software via USB and Ethernet ports. You can even conveniently handle the scene management duties of complex productions. All of these features are packed into a compact and durable enclosure to ensure a long life of professional use.
If you own a Behringer digital mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Behringer X32 40-Channel, 25-Bus Digital Mixing Console X32 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Behringer X32 40-Channel, 25-Bus Digital Mixing Console X32Download user manual for Behringer X32 40-Channel, 25-Bus Digital Mixing Console X32
(PDF file, 11.11 MB)
Additional parameters of the Behringer X32 40-Channel, 25-Bus Digital Mixing Console X32:
Processing
Input Channels 32 input channels, 8 aux channels, 8 fx return channels
Effects Engine 8 x true stereo
16 x mono
Scene File Memory 100 recall scenes, including preamp and fader settings
Bit Depth 40-bit floating point
Audio Converters 24-bit @ 44.1/48 kHz, 114 dB dynamic range
I/O Delay 0.8 mS, input to output console latency
1.1 mS, stagebox in -> console -> stagebox out network latency
Connectors
Mic Preamps 32 x XLR inputs, programmable mic preamps
Talkback Mic Input 1 x XLR
RCA 2 x input (1 x L/R)
2 x output (1 x L/R)
Line Outputs 16 x XLR
Monitor Outputs 2 x XLR
2 x 1/4" TRS balanced
AUX Inputs 6 x 1/4" TRS balanced
AUX Outputs 6 x 1/4" TRS balanced
Headphone Outputs 2 x 1/4" TRS stereo
AES/EBU Audio Output 1 x XLR digital
AES50 Ports 2 x SuperMAC
Expansion Port 1 x 32-channel I/O card, various standards available
P-16 Connector 1 x Ultranet (no power supplied)
MIDI In/Out 1 x MIDI In
1 x MIDI Out
USB Ports 1 x USB type A - audio and data export/import
1 x USB type B - for remote control
Ethernet Connector 1 x RJ45 - for remote control
Microphone Inputs
Designer MIDAS
THD + Noise < 0.006% A-weighted (20 dB gain, 0 dBu out)
Input Impedances 5kΩ unbalanced
10kΩ balanced
Maximum Input Level +23 dBu without clipping
Phantom Power +48V, switchable per channel
Equivalent Input Noise -128 dBu (input shorted)
CMRR > 70 dB @ 20 dB gain (typical)
> 80 dB @ 40 dB gain
Performance
Frequency Range 10 Hz to 22 kHz @ 48 kHz sample rate, 0 dB to -1 dB
Dynamic Range Analog: 106 dB, typical
A/D: 109 dB, typical
D/A: 108 dB
Cross Talk 100 dB rejection @ 1 kHz, adjacent channels
Output Level XLR:
+4 dBu, nominal
+21 dBu, maximum
Output Impedance XLR:
75Ω
Input Impedance 1/4" TRS:
40kΩ balanced, 20kΩ unbalanced
Maximum Input Level 1/4" TRS:
+16 dBu without clipping
Nominal Output Level 1/4" TRS:
+4 dBu
Output Impedance 1/4" TRS:
300Ω balanced, 150Ω unbalanced
Headphone Output Level +25 dBm (stereo)
Headphone Output Impedance 40Ω
Residual Noise -87 dBu A-weighted
Display
Screens Main screen: 7", 800 x 480, 262k color TFT
Channel LCD screen: 128 x 64, LCD with RGB color backlight
Metering 24-segment (-57 dB to clip)
Power
Power Supply Switch-mode autorange 100 to 240V (50/60 Hz)
Power Consumption 120W
Dimensions & Weight
Dimensions (W x D x H) 35.4 x 20.8 x 7.9" (900 x 528 x 200 mm)
Weight 45.4 lb (20.6 kg)
Packaging Info
Package Weight 62.45 lb
Box Dimensions (LxWxH) 40.0 x 26.0 x 13.0"
