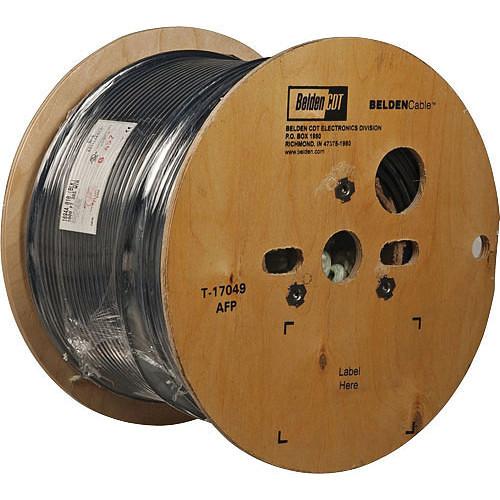

Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK
  • Manufacturer: Belden
  • Basic description and contents of package
  • Product classification: Pro Audio - Installation Sound - Bulk Cable
  • Safety instructions
  • Startup and operation of the bulk cable
  • Tips for setting up your Belden
  • Settings and expert assistance
  • Contact Belden service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK, which address similar problems with connecting and setting up Bulk Cable Belden.



User manual for the Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK

The user manual for the Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - Bulk Cable.

The Belden 4-Conductor Star Quad, Low-Impedance Cable features 24 AWG stranded (42 x 40) high-conductivity bare copper conductors, polyethylene insulation, tinned copper braid shield (95% coverage), and PVC jacket.
If you own a Belden bulk cable and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK:
Conductor Number of Conductors: 4, 24 AWG
Conductor Material: SBC, Soft Bare Copper
Diameter: 0.03" (0.06 cm)
Stranding 42 x 40
Insulation Material Insulation Material: PE - Polyethylene
Wall Thickness: 0.02" (0.05 cm)
Diameter: 0.06" (0.15 cm)
Outer Shield Material Type: Braid
Outer Shield Material: TC - Tinned Copper
Coverage (%): 95
Outer Jacket Material Outer Jacket Material: PVC - Polyvinyl Chloride
Nominal Wall Thickness: 0.05" (0.13 cm)
Cable Cabling Color Code:
1: Blue
2: White
3: Blue with white stripe
4: White with blue stripe
Nominal Diameter: 0.25" (0.6 cm)
Impedance 40 Ω
Inductance 0.21 µH/feet
Capacitance Nominal Capacitance Conductor to Conductor: 39.2 pF/feet
Nominal Capacitance Between Conductor in a Quad Configuration: 57.4 pF/feet
Velocity of Propagation 66%
Conductor DC Resistance 26.6 at 20°C (Ω/1000 ft)
Outer Shield DC Resistance 7.1 at 20°C (Ω/1000 ft)
Maximum Voltage 100 Vrms (UL) 18.0 kV (Nominal breakdown voltage between conductors) 16.9 kV (Nominal breakdown voltage conductors to shield)
Current 2.9 A per conductor at 25°C
Compliance EU Directive 2011/65/EU (ROHS II)
EU CE Mark
EU Directive 2000/53/EC (ELV)
EU Directive 2002/95/EC (RoHS)
EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
EU Directive 2002/96/EC (WEEE)
EU Directive 2003/11/EC (BFR)
CA Prop 65 (CJ for Wire & Cable)
MII Order #39 (China RoHS)
Temperature Operating Temperature Range: -22 to 167°F (30 to +75°C)
Non-UL Temperature Rating: 167°F (75°C)
Tension Control Recommended Pulling Tension: 21 lb (9.5 kg) maximum
Bend Radius 2.5" (6.4 cm)
Weight 33 lb (15 kg)
Packaging Info
Package Weight 37.8 lb
Box Dimensions (LxWxH) 9.7 x 9.4 x 8.0"
The user manual for the Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK can be downloaded in .pdf format if it did not come with your new bulk cable, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Belden users keep a unique electronic library for Belden bulk cables, where you can use our link to download the user manual for the Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK.

The user manual lists all of the functions of the Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK, all the basic and advanced features and tells you how to use the bulk cable. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Belden service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Belden 4-Conductor Star Quad, Low-Impedance Cable 1192A-1000BK. User manuals are also available on the Belden website under Pro Audio - Installation Sound - Bulk Cable.
