User manual for the Benro S7 Video Tripod Kit with A373F Carbon Fiber Legs C373FBS7

The user manual for the Benro S7 Video Tripod Kit with A373F Carbon Fiber Legs C373FBS7 provides necessary instructions for the proper use of the product Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.

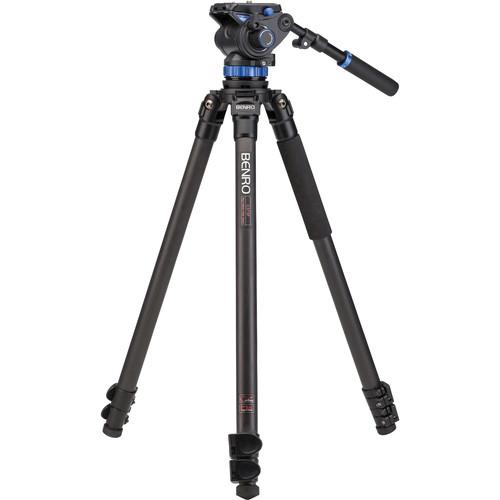

The Benro S7 Tripod Kit with A373F Carbon Fiber Legs is designed to support camera rigs weighing up to 15.4 pounds. The kit pairs the S7 Video Head with the 2-stage, 3-section A373F Series 3 carbon fiber tripod. The head attaches to the tripod using a 75mm bowl adapter features a 75mm half ball adapter, which can be removed attaching directly to tripods, monopods, sliders, and other camera support equipment with a 3/8"-16 threaded stud. The system has a maximum height of 63.58", a minimum height of 11.6", and weighs 7.5 pounds. A carrying case is included for convenient transport and storage.

The head features a 4-step counterbalance system to help you counter the weight of your camera or heavy lens, and continuous pan drag adjustment, so you can dial in the right amount of tension for each shot. The pan and tilt locks operate independently of each other and are located on the operator side of the head for easy access and control. The head has tilt range of -50° to +90°. Your camera attaches to the S7 head via an included Manfrotto 501/504PL compatible sliding quick-release plate. Also included is an adjustable length pan bar handle, which can be mounted on either side of the head. Additional features include an illuminated bubble level and two 3/8"-16 threads for attaching optional accessories such as a monitor or recorder.

The A3573F Series 3 carbon fiber tripod legs features a 2-stage design, with three sections that are secured using flip-lock levers. The legs feature a spreader-less design with three discreet stops for locking them at different degrees of spread. In addition, they can be opened fully for low-angle shooting. For a secure grip on virtually any surface, the tripod has screw-in rubber feet can be easily swapped out with included spiked feet.
If you own a Benro tripod systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Benro S7 Video Tripod Kit with A373F Carbon Fiber Legs C373FBS7 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Benro S7 Video Tripod Kit with A373F Carbon Fiber Legs C373FBS7:

Go To

System
Load Capacity 15.4 lb (7 kg)
Maximum Height 63.58 in (161.5 cm)
Minimum Height 11.6" (29.5 cm)
Weight 7.5 lb (3.4 kg)
Head
Load Capacity 15.4 lb (7 kg)
Head to Tripod Mounting Thread 3/8"-16 thread (75mm half ball adapter included)
Counterbalance Steps 4-step: 0 lb (0 kg), 5.0 lb (2.2 kg), 10 lb (4.5 kg), 15.4 lb (7 kg)
Pan Drag Continuous
Tilt Drag 4-step (0 to 3) fluid cartridge
Panning Range 360°
Tilt Range -50° to +90°
Quick Release Plate QR6 (Manfrotto 501/504PL compatible)
1/4"-20 and 3/8"-16 cameras screws
Accessory Mounting Threads 2 x 3/8"-16
Leveling Bubble / Illuminated Yes / Yes
Height 4.72" (12 cm)
Weight 3.2 lb (1.4 kg)
Legs
Material Carbon Fiber
Bowl Diameter 75mm
Leg Stages / Sections 2 / 3
Leg Lock Type Flip lock
Packaging Info
Package Weight 11.15 lb
Box Dimensions (LxWxH) 35.0 x 7.2 x 7.0"
The user manual for the Benro S7 Video Tripod Kit with A373F Carbon Fiber Legs C373FBS7 can be downloaded in .pdf format if it did not come with your new tripod systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Benro users keep a unique electronic library for Benro tripod systemss, where you can use our link to download the user manual for the Benro S7 Video Tripod Kit with A373F Carbon Fiber Legs C373FBS7.

The user manual lists all of the functions of the Benro S7 Video Tripod Kit with A373F Carbon Fiber Legs C373FBS7, all the basic and advanced features and tells you how to use the tripod systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Benro service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Benro S7 Video Tripod Kit with A373F Carbon Fiber Legs C373FBS7. User manuals are also available on the Benro website under Professional Video - Tripods, Supports & Rigs - Tripods & Accessories - Tripod Systems.
