User manual for the Beseler 45MXT Enlarger (Chassis, 230V) 8221

The user manual for the Beseler 45MXT Enlarger (Chassis, 230V) 8221 provides necessary instructions for the proper use of the product Photography - Darkroom - Enlargers.

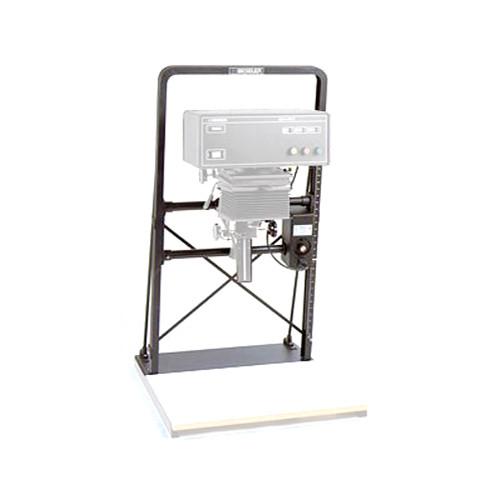

The Beseler 45MXT is the latest in a series of 45M enlargers that Beseler has been manufacturing and continuously improving for more than half a century. The triangular truss reinforced, twin-girder frame provides a rock-steady foundation for this classic enlarging system, enabling it to produce tack-sharp prints from 35mm film larger than 16 x 20" on the baseboard (+ 17.5 x 22"), up to 25.5 x 38.5" on an Adjus-Table and even larger images via wall projection. A neoprene light seal in the upper negative stage virtually eliminate stray light leakage in the darkroom.
If you own a Beseler enlargers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Beseler 45MXT Enlarger (Chassis, 230V) 8221 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Beseler 45MXT Enlarger (Chassis, 230V) 8221:
Maximum Film Size Up to 4 x 5"
Up to 8 x 10" with 810 Coldlight kit (No.8350)
Light Source 1) Condenser Lightsource (No.8121/120v)(No.8123/230v)
2) Dichro 45S Colorhead (No.8278/120v)(No.8279/230v)
3) 8x10" Coldlight Conversion Kit (No.8350)
Maximum Height With Condenser Lightsource: (No.8121 or 8123) 571/2" (146cm)
With Dichro 45S Colorhead: (No.8278 or 8279) 54-1/4" (138 Cm)
With 8x10" Coldlight Head (No.8350) 58" (147mm)
Baseboard Size Laminated 20.3 x 25.5"
Maximum Print Size On Baseboard >16 x 20" (+ 17.5 x 22")
Filter Drawer Only in Condenser Head (accepts 6 x 6" variable contrast or color printing filters)
Replacement Lamp For condenser head: PH 212 (150w)
For Dichro 45S: EVW bulb (250w/82v)
For 8 x 10" Coldlight: 2 coated lamps (No.10-52720) + 2 uncoated lamps (No.10-625-30-40)
Reversible Column No
Wall Projection Yes, with accessory Wall Projection Bracket (No.8128)
Tilts Yes
Voltage 120V (No.8227) 230V (No.8221)
Voltage Stabilized 45S Head: Yes
Condenser Head: No
810 Coldlight(No. 8235): Yes
Weight Chassis: 56 lbs (25.4kg)
Baseboard: 21 lbs (9.5kg) (not included)
Specialties Sturdy heavy gauge steel enlarging table for the 45M series. Drop-top design permits the standard MXT baseboard (No.8232) to be lowered into a series of slots within the frame of the Adjus-Table. The lower the baseboard, the greater the magnification, up to 30x with 50mm lens and up to 11x with 150mm lens. Maximum full frame print size is 24 x36".

In addition, Wall Mount Kit (No.8239), attaches 45MXT chassis to wall for extra rigidity with the baseboard, for extra large printing, or over table for applications where a baseboard isn't required.

Also includes upper chassis support bracket to secure to wall for maximum system rigidity. Requires user installation.

Modular Head System See "Light Sources" above
Lens Mounting System Individual Lensboards:
Lenses with 39mm rear thread size:
Most 50mm lenses can be mounted on (No.8021) lensboards.
Most 75-80-90-105mm lenses can be mounted on (No.8023) lensboards.
Most 135-150mm lenses can be mounted on (No.8029) lensboards.
Most 150mm lenses with 50mm rear thread size can be mounted on (No.8037) lensboards.

Other lensboards are available to accomodate virtually every lens.
3-Lens Turret (No.8225):
Most 35-150mm lenses with 39mm rear thread size screw directly into the Turret without an adapter. Lens adapters are available for other lenses.

NOTE: If in doubt about mounting a specific lens onto the Turret, please call store to learn which lens adapter is required, if any.

Accessories Wall/Table Mount (No.8239), Adjust-Table (No.8540), Wall Projection Bracket (No.8128), Lens Stage Conversion Kit (No.8226) (for older 45 series enlargers prior to MXT to accept 3 lens turret. Offers improved alignment and adjustable below the lens filter holder. Takes 4 x 4" lensboards), Bilateral Alignment Tool (No.8139).
Packaging Info
Package Weight 81.2 lb
