User manual Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001

Operating instructions and pdf manual for use - Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001 User manual, User manual Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001, Blackhawk, Imaging, M6-200, 6, MP, Digital, Window


User manual for Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001

Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001
  • Manufacturer: Blackhawk Imaging
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Blackhawk Imaging
  • Settings and expert assistance
  • Contact Blackhawk Imaging service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001, which address similar problems with connecting and setting up Wired IP Cameras Blackhawk Imaging.



User manual for the Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001

The user manual for the Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

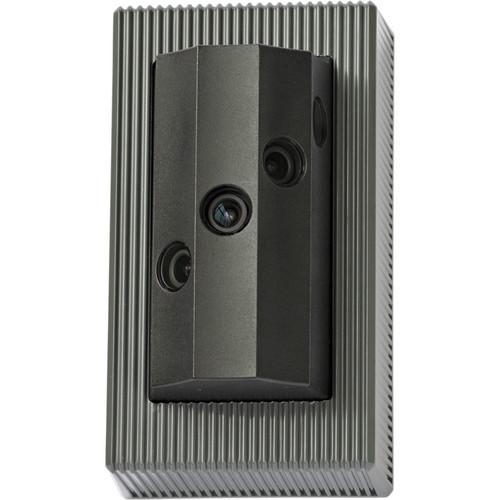

The Scallop Imaging M6-200 6 MP Digital Window Video Surveillance Camera from Blackhawk Imaging is a stand-alone computational imaging system. The imaging task is distributed among 5 powerful image sensors. The M6-200’s embedded CPUs synthesize the image data into one seamless 200° field of view. The embedded web server will service connection requests and provide clients with two simultaneous video streams.
If you own a Blackhawk Imaging wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001:
Specifications
    Camera
    Image Device 5 x 1.2 MP monochrome CMOS
    Number of Effective Pixels 6 MP
    Shutter Electronic rolling shutter
    Gain Control Automatic gain control
    Exposure Control Average, 5 zone independent
    Depth-of-Field 2' (0.6 m) to infinity
    Minimum Illumination 0.02 lux at 15 fps (without IR illumination)
    Imaging
    Image Size (H x V) 2 simultaneous video streams:

    A standard 15 fps 720p HD frame consisting of one 1280 x 320 situational awareness (SA) window plus a 1280 x 400 sub window, which can be configured to display up to 4 zoom views

    4800 x 1280 full resolution stream at 3 fps
    Field of View 200 x 60° ; 21 pixels per degree of field of view
    Compression H.264
    Maximum Frame Rate 15 fps for 720p HD stream
    3 fps for full resolution window
    4800 x 1280 stream
    Compression Ratio User selectable
    Bandwidth Using H.264 at Good Quality Compression

    720p HD Window: At 15 fps, less than 2 Mb/s

    Full Resolution Image: At 3 fps, less than 6 Mb/s

    Minimum System Requirements Windows 7 or Windows 8
    2.0 GHz CPU (Dual-core 1.8 GHz or higher CPU with 2 GB RAM or higher recommended)
    2 GB RAM or higher
    200 MB hard drive space
    256 MB or higher video memory
    Minimum display resolution 1280 x 720
    10/100 Mb Ethernet adapter
    PoE Switch or 12 VDC power supply (not included)
    Internet Explorer or Mozilla FireFox
    Network
    Protocols TCP/IP, HTTP, SMTP, DHCP, RTP/RTSP, DNS, BONJOUR
    Supported Web Browsers Internet Explorer, Firefox
    Interface
    Ethernet 10Base-T/100Base
    General
    Power Requirements 48 V PoE, 12 VDC
    Power Consumption <7 W
    Storage Temperature -40 to 185ºF (-40 to 85°C)
    Operating Temperature -40 to 140ºF (-40 to 60°C)
    Dimensions (W x H x D) 3.28 x 5.72 x 3.17" (83 x 145 x 81 mm)
    Weight 12 oz (340.19 g)
    Packaging Info
    Package Weight 2.15 lb
    Box Dimensions (LxWxH) 13.543 x 5.197 x 4.961"
    The user manual for the Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackhawk Imaging users keep a unique electronic library for Blackhawk Imaging wired ip camerass, where you can use our link to download the user manual for the Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001.

    The user manual lists all of the functions of the Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackhawk Imaging service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackhawk Imaging M6-200 6 MP Digital Window DW05 - 100 - 001. User manuals are also available on the Blackhawk Imaging website under Surveillance - Surveillance Video - Wired IP Cameras.
