User manual Blackmagic Design DeckLink Quad BDLKDVQD

Operating instructions and pdf manual for use - Blackmagic Design DeckLink Quad BDLKDVQD User manual, User manual Blackmagic Design DeckLink Quad BDLKDVQD, Blackmagic, Design, DeckLink, Quad, BDLKDVQD, Video


User manual for Blackmagic Design DeckLink Quad BDLKDVQD

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

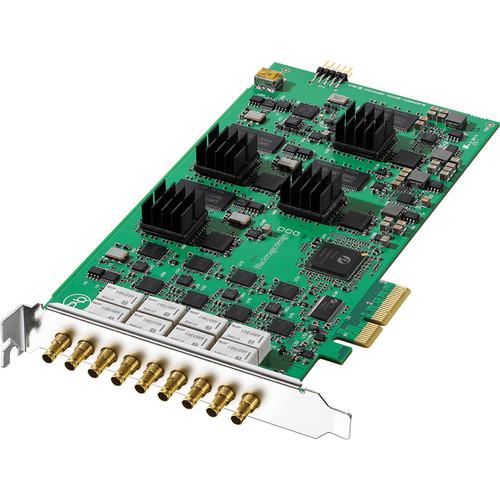

Blackmagic Design  DeckLink Quad BDLKDVQD
  • Manufacturer: Blackmagic Design
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your Blackmagic Design
  • Settings and expert assistance
  • Contact Blackmagic Design service
  • Troubleshooting
  • Warranty information
  • Price: 945 USD
We recommend checking out our discussion threads on the Blackmagic Design DeckLink Quad BDLKDVQD, which address similar problems with connecting and setting up Computer Hardware Blackmagic Design.



User manual for the Blackmagic Design DeckLink Quad BDLKDVQD

The user manual for the Blackmagic Design DeckLink Quad BDLKDVQD provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

Combing four independent SDI capture and playback cards in one, the Blackmagic Design DeckLink Quad features four SDI inputs and four SDI outputs that can be independently switched between SD and HD video formats. It also provides a common black burst/tri-sync input for all four channels, and features a built in watchdog timer under API control with bypass relays for a robust broadcast solution that automatically switches to bypass if power is lost, or software crashes. The DeckLink Quad appears as four independent SDI cards to the computer, but uses only a single PCIe slot.

Enabling 8/10-bit 4:2:2 recording and playback, the DeckLink Quad is ideal for use in live broadcast and post production works by avoiding any generational or compression loss. The card is compatible with Mac OS X, Windows 7/8, and Linux computers, and includes a media express application for capturing, organizing, and managing your media, making it a good companion to applications that applications that don't capture video on their own.
If you own a Blackmagic Design computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design DeckLink Quad BDLKDVQD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design DeckLink Quad BDLKDVQD:
Specifications
    Computer Interface PCI Express 4 lane, compatible with 4, 8, and 16 lane PCIe slots.
    Inputs 4 x SD/HD-SDI, 10-bit (DIN 1.0/2.3 connectors)
    Outputs 4 x SD/HD-SDI, 10-bit (DIN 1.0/2.3 connectors)
    SDI Audio Input 8 channels per input, embedded in SD and HD
    SDI Audio Output 8 channels per input, embedded in SD and HD
    Sync Input Blackburst in SD, 720p50, 720p59.94, 1080i50, and 1080i59.94 formats or Tri-Sync in any HD format
    Codecs Supported AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2
    Resolutions and Frame Rates 625/25 PAL
    525/29.97 NTSC
    720p 50/59.94/60
    1080i 50/59.94/60
    1080PsF 23.98/24/25/29.97/30
    1080p 23.98/24/2529.97/30
    SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M
    SDI Metadata Support VITC read for 3:2 pulldown removal
    VANC capture and playback using up to 3 lines of video in file
    HD RP188 and closed captioning
    Audio Sampling 48 kHZ, 24-bit
    Video Sampling 4:2:2
    Color Precision 10-bit
    Color Space Rec. 601, Rec. 709
    Compatible Operating Systems Mac OS X 10.9 or later
    Windows 7 and Windows 8 64-bit Linux
    Operating Temperature 32 to 104°F (5 to 40°C)
    Storage Temperature -4 to 113°F (-20 to 45°C)
    Relative Humidity 0 to 90% non-condensing
    Packaging Info
    Package Weight 0.6 lb
    Box Dimensions (LxWxH) 8.8 x 5.8 x 0.9"
    The user manual for the Blackmagic Design DeckLink Quad BDLKDVQD can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design computer hardwares, where you can use our link to download the user manual for the Blackmagic Design DeckLink Quad BDLKDVQD.

    The user manual lists all of the functions of the Blackmagic Design DeckLink Quad BDLKDVQD, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackmagic Design DeckLink Quad BDLKDVQD. User manuals are also available on the Blackmagic Design website under Professional Video - Post Production - Computer Hardware.
