User manual Blackmagic Design H.264 PRO Recorder VIDPROREC

Operating instructions and pdf manual for use - Blackmagic Design H.264 PRO Recorder VIDPROREC User manual, User manual Blackmagic Design H.264 PRO Recorder VIDPROREC, Blackmagic, Design, H.264, PRO, Recorder, VIDPROREC, Video


User manual for Blackmagic Design H.264 PRO Recorder VIDPROREC

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

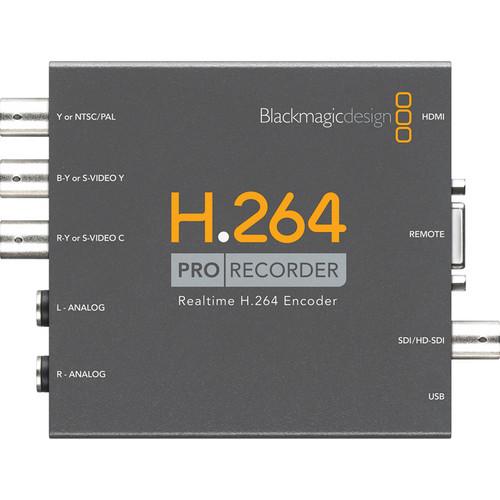

Blackmagic Design  H.264 PRO Recorder VIDPROREC
  • Manufacturer: Blackmagic Design
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your Blackmagic Design
  • Settings and expert assistance
  • Contact Blackmagic Design service
  • Troubleshooting
  • Warranty information
  • Price: 470 USD
We recommend checking out our discussion threads on the Blackmagic Design H.264 PRO Recorder VIDPROREC, which address similar problems with connecting and setting up Computer Hardware Blackmagic Design.



User manual for the Blackmagic Design H.264 PRO Recorder VIDPROREC

The user manual for the Blackmagic Design H.264 PRO Recorder VIDPROREC provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

The Blackmagic Design H.264 Pro Recorder is designed for the industry professionals who require professional encoding from SDI, HDMI, analog/component composite, and balanced audio. The flexible Pro Recorder enables you to capture old or new video formats into the same file formats used on the web, iPad, iPod, iPhone, Apple TV, and more, providing a convenient solution to capture from professional broadcast decks directly to SD and HD H.264 files.
If you own a Blackmagic Design computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design H.264 PRO Recorder VIDPROREC in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Blackmagic Design  H.264 PRO Recorder VIDPRORECDownload user manual for Blackmagic Design H.264 PRO Recorder VIDPROREC
(PDF file, 5.14 MB)
Additional parameters of the Blackmagic Design H.264 PRO Recorder VIDPROREC:
Connections
  • SDI Video Input: 1 x 12 bit SD/HD switchable.

  • Analog Video Input: 1 x Component YUV on 3 BNCs switchable to S-Video or Composite.
    Component supports HD and SD.

  • HDMI Video Input: 1 x HDMI type A connector.

  • SDI Audio Input: 2 Channels from embedded SDI audio.

  • Analog Audio Input: 2 Channels of professional balanced analog audio with standard 1/4 inch jack connections.

  • HDMI Audio Input: 2 Channels from embedded HDMI audio.

  • Device Control: Sony compatible RS422 deck control port.

  • Computer Interface: USB 2.0 high speed (480Mb/s)
  • Standards
  • HD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60.

  • SD Format Support: 625/25 PAL, 525/29.97 NTSC and 480p.

  • SDI Compliance: SMPTE 259M and 292.

  • Multiple Rate support: SDI, HDMI and component analog video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD-SDI.

  • Video Sampling: 4:2:2

  • Color Precision: 12 bit

  • Color Space: 4:2:2 YUV

  • Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.

  • HDMI Color Precision: 12 bit

  • Copy Protection: For legal reasons HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
  • Processing
  • Encoding: Hardware based real time H.264 encoder supports multiple profiles for small, portable video devices through to full resolution HDTV.

  • Real-time Scaling: Capture at full HD or SD resolution, or use direct resize in real-time to scale and encode for the intended playback device, such as iPhone, iPad or iPod.

  • Real-time Cropping: Adjustable tools provide real-time cropping of unwanted video artifacts such as black borders and VHS switching.
  • Firmware
  • Firmware upgrade via USB.
  • Installation
  • Connect unit to the computer's USB 2.0 port, install Blackmagic H.264 Pro Recorder software and run Media Express.
  • Packaging Info
    Package Weight 1.3 lb
    Box Dimensions (LxWxH) 6.2 x 5.4 x 2.6"
    The user manual for the Blackmagic Design H.264 PRO Recorder VIDPROREC can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design computer hardwares, where you can use our link to download the user manual for the Blackmagic Design H.264 PRO Recorder VIDPROREC.

    The user manual lists all of the functions of the Blackmagic Design H.264 PRO Recorder VIDPROREC, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackmagic Design H.264 PRO Recorder VIDPROREC. User manuals are also available on the Blackmagic Design website under Professional Video - Post Production - Computer Hardware.
