Blackmagic Design  MultiView 16 HDL-MULTIP6G/16
  • Manufacturer: Blackmagic Design
  • Basic description and contents of package
  • Product classification: A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors
  • Safety instructions
  • Startup and operation of the multi viewer processors
  • Tips for setting up your Blackmagic Design
  • Settings and expert assistance
  • Contact Blackmagic Design service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Blackmagic Design MultiView 16 HDL-MULTIP6G/16, which address similar problems with connecting and setting up Multi Viewer Processors Blackmagic Design.



User manual for the Blackmagic Design MultiView 16 HDL-MULTIP6G/16

The user manual for the Blackmagic Design MultiView 16 HDL-MULTIP6G/16 provides necessary instructions for the proper use of the product A/V Presentation - Signal Processing & Distribution - Multi Viewer Processors.

The Blackmagic Design MultiView 16 features sixteen 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of the high resolution displays to view each source with increased clarity. The MultiView 16 allows for 4, 9, or 19 views to be selected, with each input fully re-synchronized. Two HD-SDI, two 6G-SDI, and one HDMI multi-view outputs are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.

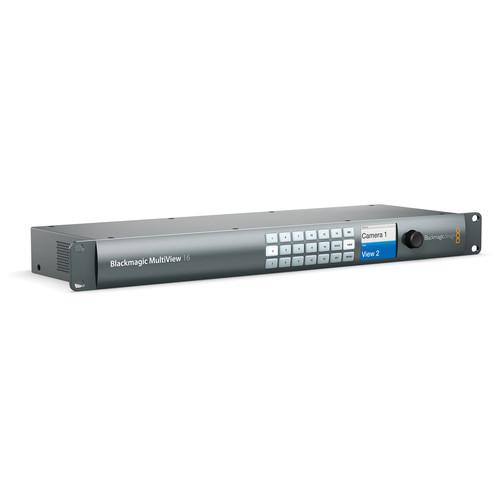

Housed in a 1RU machined aluminum frame, the MultiView 16 is ready for use in the studio, broadcast truck, or even on location. It can be controlled using the illuminated buttons, spin knob, and 1.5" LCD screen on the front panel, or with the included control software via the Ethernet port. A SOLO button lets instantly full screen a single source. For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240VAC.

Note: IEC power cable is not included.
If you own a Blackmagic Design multi viewer processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design MultiView 16 HDL-MULTIP6G/16 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design MultiView 16 HDL-MULTIP6G/16:
Specifications
    Connections
    SDI Video Input 16 x 10-bit SD/HD/6G-SDI
    SDI Video Output 16 x 10-bit SD/HD/6G-SDI loop outputs
    Multi-View Outputs 2 x 10-bit 6G-SDI
    2 x 10-bit HD-SDI
    1 x HDMI, type A (supports EDID of the monitor)
    Reference Input Blackburst and TriSync for SD, HD, and 4K
    Multi-Rate Support Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video.
    Updates USB 2.0 high speed (480 Mb/s) interface or via Ethernet
    Control 16 buttons
    5 buttons and scroll wheel for control of LCD display
    1 x RJ45 Ethernet
    1 x RS-422 input (for configuration layouts)
    Configuration Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting
    Reclocking On all SDI outputs; auto switching between SD, HD, or 6G-SDI video
    Standards
    Format Support SD Format Support
    625/25 PAL
    525/29.97 NTSC

    HD Format Support
    720p 50/59.94/60
    1080i 50/59.94/60
    1080PsF 23.98/24/25/29.97/30
    1080p 23.98/24/25/29.97/30/50/59.94/60

    2K Format Support
    2048x1080p 23.98/24/25
    2048x1080PsF 23.98/24/25

    4K Format Support
    3840x2160p 23.98/24/25/29.97/30
    4096x2160p 24
    SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601
    SDI Video Rates SD-SDI: 270 Mb/s
    HD-SDI: 1.5 Gb/s
    3G-SDI: 3 Gb/s
    6G-SDI: 6 Gb/s
    SDI Video Sampling 4:2:2 and 4:4:4
    SDI Color Precision 4:2:2 and 4:4:4 10-bit
    SDI Color Space YUV or RGB
    SDI Audio Sampling 48 kHz and 24-bit
    SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M
    Software
    Software Control Multi-view control software included free for Windows and Mac OS X
    Internal Software Upgrade Via included updater application
    General
    Display 1.5" (3.81 cm) LCD (for menu settings)
    Power Supply IEC power cable required
    90 to 240 VAC input
    Power Fail Protection Settings preserved and restored instantly at power on
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature -4 to 113°F (-20 to 45°C)
    Relative Humidity 0 to 90% non-condensing
    Rack Space 1 RU
    Dimensions (W x H x D) 18.97 x 1.74 x 6.03" (48.18 x 4.42 x 15.32 cm)
    Weight 4.62 lb (2.1 kg)
    Packaging Info
    Package Weight 5.8 lb
    Box Dimensions (LxWxH) 19.3 x 7.5 x 3.4"
    The user manual for the Blackmagic Design MultiView 16 HDL-MULTIP6G/16 can be downloaded in .pdf format if it did not come with your new multi viewer processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design multi viewer processorss, where you can use our link to download the user manual for the Blackmagic Design MultiView 16 HDL-MULTIP6G/16.

    The user manual lists all of the functions of the Blackmagic Design MultiView 16 HDL-MULTIP6G/16, all the basic and advanced features and tells you how to use the multi viewer processors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.
