User manual Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON

Operating instructions and pdf manual for use - Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON User manual, User manual Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON, Blackmagic, Design, UltraStudio, Mini, Monitor, BDLKULSD


User manual for Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.

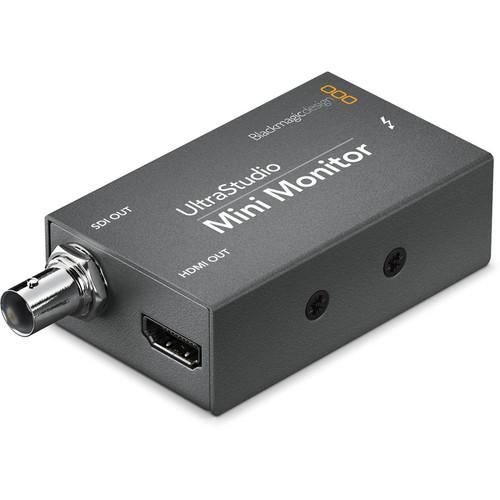

Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON
  • Manufacturer: Blackmagic Design
  • Basic description and contents of package
  • Product classification: Professional Video - Post Production - Computer Hardware
  • Safety instructions
  • Startup and operation of the computer hardware
  • Tips for setting up your Blackmagic Design
  • Settings and expert assistance
  • Contact Blackmagic Design service
  • Troubleshooting
  • Warranty information
  • Price: 138 USD
We recommend checking out our discussion threads on the Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON, which address similar problems with connecting and setting up Computer Hardware Blackmagic Design.



User manual for the Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON

The user manual for the Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON provides necessary instructions for the proper use of the product Professional Video - Post Production - Computer Hardware.

The Blackmagic Design UltraStudio Mini Monitor Playback Device is a very interesting and a highly useful device that Blackmagic has put out there. It is the "playback" aspect of any Blackmagic capture and playback device (and of any capture and playback device in general).

Where a capture and playback device, such as the UltraStudio 3D or the Intensity Extreme, captures video from a camera, transfers it to a computer, and additionally lets you output the video to a display other than that of your computer's, UltraStudio Mini Monitor only performs the last of these functions, also referred to as "playback." The point of outputting to a separate display is to output to a top-resolution display, the kind that your computer's display likely isn't, the kind that'll give you the best representation of your footage, the kind that'll let you get as precise as possible in color-grading, perhaps the kind that has features like Waveform. Mini Monitor connects to your computer by Thunderbolt and outputs to a monitor by either HDMI or SDI. (You'll need a Thunderbolt-equipped computer, such as any Mac.)

So, if you want to color grade on a top-resolution monitor, and you don't need the other characteristics of a capture and playback device, then UltraStudio Mini Monitor is all you need and it comes at a small portion of the cost of an average capture and playback device (also known as an I/O device).

(If you'll need the "capture" aspect instead, please check out the UltraStudio Mini Recorder).
If you own a Blackmagic Design computer hardware and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON:
SDI Video Output 1x 10-bit SD/HD switchable
HDMI Video Output 1x HDMI type A connector
SDI Audio Output 8 channels embedded in SD and HD
HDMI Audio Output 8 channels embedded in SD and HD
Computer Interface Thunderbolt
SD Format Support 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC
HD Format Support 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60
SDI Compliance SMPTE 259M and SMPTE 292M
SDI Metadata Support VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file
HD RP188
Closed captioning
Sampling Video:
4:2:2

Audio:
Television standard sample rate of 48 kHz at 24 bit
Color Precision 10-bit
Color Space REC 601, REC 709
HDMI Configuration HDMI automatically configures to connected display
HDMI Resolution Pixel for pixel HD resolution input to connected device
HDMI Color Precision 10-bit
Multiple Rate Support SDI and HDMI are switchable between standard definition and high definition
Colorspace Conversion Hardware based real time
HD Down Conversion Software based down conversion during video playback
Real Time Effects Apple Final Cut Pro internal effects
Adobe Premiere Pro Mercury Playback Engine effects
Avid Media Composer 6 internal effects
Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation Requires computer with a Thunderbolt port
System Compatibility Mac OS X 10.7 Lion or later, and Mac OS X 10.8 Mountain Lion or later.
Packaging Info
Package Weight 0.6 lb
Box Dimensions (LxWxH) 5.2 x 5.2 x 1.5"
The user manual for the Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON can be downloaded in .pdf format if it did not come with your new computer hardware, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Blackmagic Design users keep a unique electronic library for Blackmagic Design computer hardwares, where you can use our link to download the user manual for the Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON.

The user manual lists all of the functions of the Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON, all the basic and advanced features and tells you how to use the computer hardware. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Blackmagic Design service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Blackmagic Design UltraStudio Mini Monitor BDLKULSDZMINMON. User manuals are also available on the Blackmagic Design website under Professional Video - Post Production - Computer Hardware.
