User manual for the Blackmagic Design URSA Mini 4K Digital Cinema CINECAMURSAM40K/PL
The user manual for the Blackmagic Design URSA Mini 4K Digital Cinema CINECAMURSAM40K/PL provides
necessary instructions for the proper use of the product Professional Video - Digital Cine Cameras.

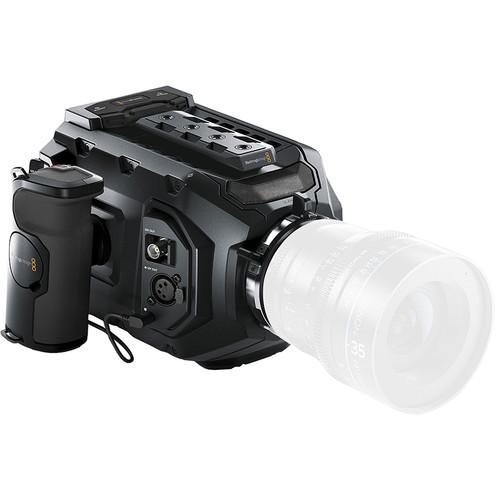

Now in a smaller, more handheld friendly form factor, the URSA Mini 4K Digital Cinema Camera from Blackmagic Design can record cinematic images with its Super-35mm 4K, global-shutter sensor with 12 stops of dynamic range. The ergonomic body design is balanced and can be used for many different styles of filmmaking. The PL-mount is compatible with a plethora of popular lenses, opening up different aesthetic options. A rosette on the side of the camera accepts the included side handle which can control start/stop via a LANC connection.
If you own a Blackmagic Design digital cine cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Blackmagic Design URSA Mini 4K Digital Cinema CINECAMURSAM40K/PL in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Blackmagic Design URSA Mini 4K Digital Cinema CINECAMURSAM40K/PL:
| Size || 21.12 x 11.88 (Super-35) |
| Lens Mount || PL Mount |
| Effective Resolution || 4000 x 2160 |
| Dynamic Range || 12 stops |
| Shooting Resolutions || 4000 x 2160 |
3840 x 2160
1920 x 1080
| Frame Rates || 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps |
| Dimensions || 5" diagonal |
| Screen Type || LCD capacitive touchscreen |
| Resolution || 1920 x 1080 |
| Media Card Slots || 2 x CFast 2.0 |
| Recording Formats || CinemaDNG Raw (Uncompressed or 3:1 Compressed) @ 4000 x 2160 (film dynamic range) |
Apple ProRes @ 3840 x 2160, 1920 x 1080 (film or video dynamic range)
| Data Rates || 4000 x 2160: |
CinemaDNG Raw - 265 MB/s
CinemaDNG RAW 3:1 - 125 MB/s
3840 x 2160:
Apple ProRes 444 XQ - 312.5 MB/s
Apple ProRes 444 - 165 MB/s
Apple ProRes 422 HQ - 110 MB/s
Apple ProRes 422 - 73.6 MB/s
Apple ProRes 422 LT - 51 MB/s
Apple ProRes Proxy - 22.4 MB/s
1920 x 1080:
Apple ProRes 444 XQ - 62.5 MB/s
Apple ProRes 444 - 41.25 MB/s
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Rates based on 30 frames per second.
| Metadata Support || Automatic camera data and user entered data such as shot number, filenames, and keywords |
| Output || 1 x 12G-SDI -- 10-bit 4:2:2 |
| Reference || 1 x Reference input |
| Timecode || 1 x Timecode input |
| Analog Audio Inputs || 2 x XLR -- selected mic/line level and +48 V phantom power |
| SDI Audio Output || 2-channel |
| Remote Control || 2 x LANC on 2.5 mm sub-mini -- controls record START/STOP, iris, and focus |
| USB || 1 x USB 2.0 mini type B for software updates |
| Supported Standards || SDI Compliance: SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1 |
SDI Audio Sampling: 48 kHz and 24-bit
| Microphone || 2 x Built-in cardioid microphones for stereo recording with -10dB pad and low-cut filter |
| Speaker || Integrated mono (enabled in playback when headphones are not used) |
| Controls || Touch screen menus on 5" screen, push button controls for navigating menus |
| Mounting Options || Integrated rod mounts compatible with 15mm Light Weight Support (LWS) standard |
| System Requirements || Mac OS X 10.9 or newer, Windows 7 (64-bit) or 8 (64-bit) |
Note: See Blackmagic website for detailed system requirements and configuration guides.
| Power Connectors || Inputs: |
1 x 4-pin XLR input for external power supply or battery
1 x 12-pin molex connector on rear battery plate
1 x 12V output using 4-pin XLR for powering external accessories such as EVF
1 x 12V regulated output from rear molex 12-way connector
| Battery Plate Support || Mounting holes for V-mount and Gold Mount battery plates |
| Operating Temperature || 32 to 104°F / 0 to 40°C |
| Storage Temperature || -4 to 113°F / -20 to 45°C |
| Humidity || 0 to 90% RH, non-condensing |
| Dimensions || 8.2 x 7.6 x 5.8" / 21 x 19.3 x 14.7 cm |
| Weight || 5 lb / 2.3 kg |
| Package Weight || 8.45 lb |
| Box Dimensions (LxWxH) || 13.0 x 10.0 x 8.0" |
