User manual Bogen Communications TAMB2 Telephone Access Module TAMB2PS

Operating instructions and pdf manual for use - Bogen Communications TAMB2 Telephone Access Module TAMB2PS User manual, User manual Bogen Communications TAMB2 Telephone Access Module TAMB2PS, Bogen, Communications, TAMB2, Telephone, Access, Module,


User manual for Bogen Communications TAMB2 Telephone Access Module TAMB2PS

Bogen Communications TAMB2 Telephone Access Module TAMB2PS
  • Manufacturer: Bogen Communications
  • Basic description and contents of package
  • Product classification: Pro Audio - Location Sound - Telephone Audio Interfaces
  • Safety instructions
  • Startup and operation of the telephone audio interfaces
  • Tips for setting up your Bogen Communications
  • Settings and expert assistance
  • Contact Bogen Communications service
  • Troubleshooting
  • Warranty information
  • Price: 192 USD
We recommend checking out our discussion threads on the Bogen Communications TAMB2 Telephone Access Module TAMB2PS, which address similar problems with connecting and setting up Telephone Audio Interfaces Bogen Communications.



User manual for the Bogen Communications TAMB2 Telephone Access Module TAMB2PS

The user manual for the Bogen Communications TAMB2 Telephone Access Module TAMB2PS provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Telephone Audio Interfaces.

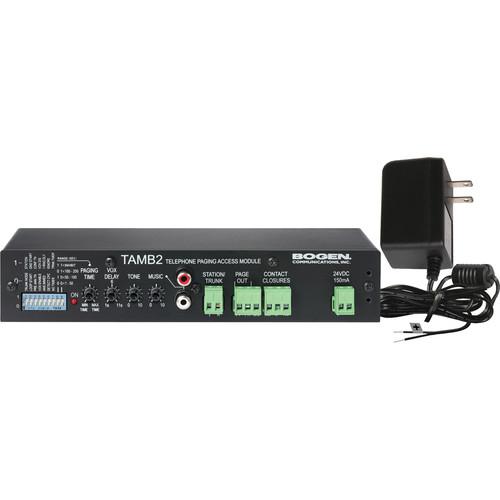

This TAMB2 Telephone Access Module with Power Supply from Bogen Communications is designed as an interface between a telephone system and a paging system, providing dual-purpose voice paging. It's compatible with the full range of analog telephone port types, and is capable of station port or trunk port operation. Music from a background music source (with stereo-combining RCA jacks and volume control) is possible via a line-level input, which allows background music to be used during a page with central paging amplifiers don't have a muting provision. This module is ideal for simple or complex telephone paging situations. A 24V power supply is included and is required for all modes of operation.
If you own a Bogen Communications telephone audio interfaces and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bogen Communications TAMB2 Telephone Access Module TAMB2PS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bogen Communications TAMB2 Telephone Access Module TAMB2PS:
Frequency Response Paging Frequency Response: 200 - 8000 Hz, ±1 dB
Impedance Input/Output Impedance: 600 ohms, nominal
Ringer Equivalence 1.3B
Compatibility Station Port: two-wire ring start
Trunk Port: two-wire loop start or ground start
Pre-announce/Confirmation Tones 800 Hz, ±20%, one-half second duration
Default Disconnect Timer 1 to 200 seconds, adjustable or inhibit
VOX Disconnect Timer 1 to 11 seconds, adjustable or inhibit
Auxiliary Contact Rating 0.6 A @ 125 VAC resistive
0.6 A @ 110 VDC resistive
2.0 A @ 30 VDC resistive
Connection Terminal Pluggable screw terminal
Power Requirements 24 VDC @ 150 mA (included)
Operating Temperature Range 32 to 120°F (0 to 49°C)
Finish Black enclosure with white lettering
Dimensions 8.5 x 1.75 x 3" (21.59 x 4.44 x 7.62 cm)
Weight 2.0 lb (0.9 kg)
Packaging Info
Package Weight 2.05 lb
Box Dimensions (LxWxH) 9.8 x 6.0 x 2.1"
The user manual for the Bogen Communications TAMB2 Telephone Access Module TAMB2PS can be downloaded in .pdf format if it did not come with your new telephone audio interfaces, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bogen Communications users keep a unique electronic library for Bogen Communications telephone audio interfacess, where you can use our link to download the user manual for the Bogen Communications TAMB2 Telephone Access Module TAMB2PS.

The user manual lists all of the functions of the Bogen Communications TAMB2 Telephone Access Module TAMB2PS, all the basic and advanced features and tells you how to use the telephone audio interfaces. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bogen Communications service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bogen Communications TAMB2 Telephone Access Module TAMB2PS. User manuals are also available on the Bogen Communications website under Pro Audio - Location Sound - Telephone Audio Interfaces.
