User manual for the Bosch LTC8501/60 64x8 Switching Bay 4.998.147.263

The user manual for the Bosch LTC8501/60 64x8 Switching Bay 4.998.147.263 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Matrix Solutions - Matrix Switches.

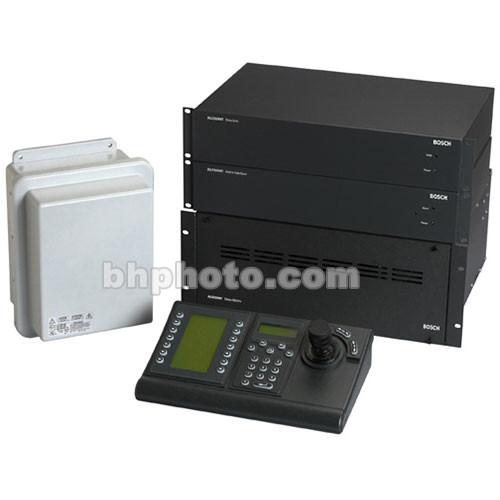

The Bosch LTC8501/60 is a matrix system consisting of a switching bay with CPU and a power supply. The unit accepts a number of optional video input and output modules for a maximum of 64 video inputs and 8 video outputs. Any camera can be selected for display on any or all monitors either manually or by programming auto switching with individual dwell times. Optional software can be used to program sequence activation based on a certain date and time.

A number of ports are available to connect receivers and drivers which enable an operator to control a wide range of dome camera functions in addition to basic pan, tilt and zoom operation. This unit will also accept a Billinx interface unit which provides convenient PTZ control using a communication protocol embedded in the standard video signal. Optional keyboards are required to program and control this unit.
If you own a Bosch matrix switches and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch LTC8501/60 64x8 Switching Bay 4.998.147.263 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch LTC8501/60 64x8 Switching Bay 4.998.147.263:
Signal System NTSC
Channels Up to 64
Switching Method Manual or Sequential
Connectors Video In: up to x64 BNC
Video Out: up to x8 BNC
Video In (satellite):  x256
Alarm In: x128
Alarm Out: x8
RS-232 Control: x1
RS-232 Printer Port: x1
Keyboard Ports: RS-485 x8
Receiver/Drivers: x64
Receiver/Drivers (satellite): x256
Power Requirements 120 VAC
Power Consumption 192W
Operating Temperature 32 - 122°F (-0 ~ +50°C)
Dimensions (WxHxD) 19 x 7 x 14" (483 x 178 x 356mm)
Weight 18.2 lbs (8.2kg)
The user manual for the Bosch LTC8501/60 64x8 Switching Bay 4.998.147.263 can be downloaded in .pdf format if it did not come with your new matrix switches, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bosch users keep a unique electronic library for Bosch matrix switchess, where you can use our link to download the user manual for the Bosch LTC8501/60 64x8 Switching Bay 4.998.147.263.

The user manual lists all of the functions of the Bosch LTC8501/60 64x8 Switching Bay 4.998.147.263, all the basic and advanced features and tells you how to use the matrix switches. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bosch service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bosch LTC8501/60 64x8 Switching Bay 4.998.147.263. User manuals are also available on the Bosch website under Surveillance - Surveillance Video - Matrix Solutions - Matrix Switches.
