User manual for the Bosch MIC-612TIALB36N Dual Thermal/Optical Camera F.01U.249.105

The user manual for the Bosch MIC-612TIALB36N Dual Thermal/Optical Camera F.01U.249.105 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired Analog & HD Cameras.

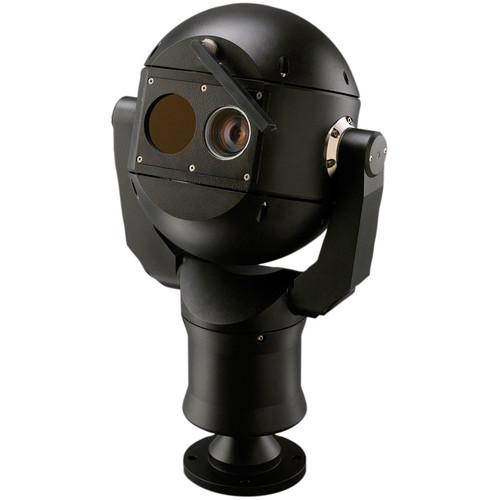

The MIC-612TIALB36N Dual Thermal/Optical Camera (Black, 35mm, NTSC) from Bosch has been designed to offer an extremely reliable, robust, and high-quality surveillance solution for security applications that demand excellent performance. Precision engineered to exacting standards, the camera offers a ruggedized dual optical/thermal image capture solution.

Image control and quality are integral aspects of any PTZ camera, and the MIC 612 delivers. A high-quality day/night camera core with 36x optical zoom lens and a full 12x digital zoom, and a high-performance, un-cooled thermal imaging core sit side-by-side within the housing. The MIC 612 has two video outputs: one for the optical camera, and one that is user-switchable between the optical camera and the thermal imager. The optical camera provides 550 TVL of horizontal resolution for outstanding clarity and image detail, and incorporates Wide Dynamic Range (WDR) that dramatically improves the dynamic range by 128 times and results in clear image reproduction in extreme, high-contrast environments. Features of AutoScaling (proportional zoom) and AutoPivot (automatically rotates and flips the camera) ensure optimal control. Day/night capabilities and outstanding sensitivity make the MIC 612 an exceptional performer in all lighting conditions. In low light, the optical camera automatically switches from color to monochrome by removing the IR filter to boost sensitivity while maintaining superior image quality. For operation in the darkest conditions, the SensUp control feature automatically reduces the shutter speed to as little as 1 second. This increases sensitivity by more than 50 times. In addition to low light applications, the optical camera is an exceptional performer when viewing under a sodium vapor lamp (for example, a street or tunnel lamp), which normally gives a yellowish tint to images. The camera automatically compensates and restores objects to their original color. The thermal imager has user-selectable color options including White Hot, Black Hot, and many others, and built-in sun protection that allows the camera to self-heal if pointed directly at the sun. Standard-resolution models also have a user-selectable on-screen temperature display (spot meter) and alarm.

Subjected and certified to rigorous ingress certification tests, this camera is perfectly suited for installation in even the most unforgiving environments, thus eliminating the need for pressurization. The camera is machined from solid aluminum and protected from corrosion by 2 different processes: first, it receives a coating of Alodine 5200, a chromate conversion coating of aluminum that is used in the aerospace and defense industries, where a protective layer is required to improve corrosion resistance. Second, it receives a robust, powder-paint coating. The camera is sealed with ‘O’ rings and can operate submerged in up to 3.3’ (1 m) of water for sustained periods of time (a maximum duration of 24 hours). It is not rated to be installed permanently under water. The thermal camera will show no detail if submerged.
If you own a Bosch wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch MIC-612TIALB36N Dual Thermal/Optical Camera F.01U.249.105 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch MIC-612TIALB36N Dual Thermal/Optical Camera F.01U.249.105:
Specifications
    Optical Camera Core, 36x Day/Night
    Imager 1/4" EXview HAD CCD (progressive scan)
    Resolution 768 x 494 (H x V)
    Picture Elements Approximately 380,000
    Lens 36x Zoom (3.4 to 122.4 mm) F/1.6 to 4.5
    Zoom Movement Speed 4 seconds (optical wide to optical TELE)
    6.2 seconds (optical wide to digital TELE)
    Focus Automatic with manual override
    Iris Automatic with manual override
    Field of View 1.7 to 57.8º
    Video Output 1 Vp-p, 75 Ohm
    Gain Control Auto/Manual/Maximum (-3 dB to +28 dB, 2 dB steps)
    Aperture Correction Horizontal and vertical
    Digital Zoom 12x
    Horizontal Resolution 550 TVL typical
    Sensitivity 30 IRE: Day Mode
    SensUp Off: 0.66 lux
    SensUp On (1/4s, 15X): 0.04 lux

    Night Mode
    SensUp Off: 0.104 lux
    SensUp On (1/4s, 15X): 0.0052 lux

    50 IRE: Day Mode
    SensUp Off: 1.4 lux
    SensUp On (1/4s, 15X): 0.1 lux

    Night Mode
    SensUp Off: 0.209 lux
    SensUp On (1/4s, 15X): 0.0103 lux

    Unless otherwise stated, test conditions are as follows: F1.6; shutter = 1/60s; maximum AGC.

    Filter Automatic IR-cut filter
    Electronic Shutter Speed 1/1 to 1/10,000 seconds (22 steps)
    Wide Dynamic Range 92 dB (50 dB with WDR Off)
    Signal-to-Noise Ratio >50 dB
    White Balance 2000 to 10,000 K
    Thermal Camera Core
    Type 35 mm, Standard Resolution
    Imager Focal Plane Array (FPA), un-cooled Vanadium Oxide microbolometer with userselectable on-screen temperature display (spot meter) and alarm; 7.5 Hz
    Resolution 320 x 240 pixels
    Lens 35 mm (F1.2)
    Field of View 13 x 10°
    Spectral Response 7.5 to 13.5 μm
    Thermal Sensitivity <50 mk f>
    Digital Zoom 2x, 4x
    Focus Factory-set at infinity focus
    Performance Human 5.9 x 1.6’ (1.8 x 0.5 m)
    Detection: 2,625’ (800 m)
    Recognition: 656’ (200 m)
    Identification: 344’ (105 m)

    Object - 7.5 x 7.5’ (2.3 x 2.3 m)
    Detection: 7,382’ (2250 m)
    Recognition: 1,936’ (590 m)
    Identification: 951’ (290 m)

    AGC (Automatic Gain Control) Outdoor (default mode), Indoor, Low Contrast
    User-selectable Thermal Modes White Hot (default mode), Black Hot, IceFire, Glowbow, Ironbow 1, Ironbow 2, Rainbow, Fusion, Sepia, Color 1, Color 2, RedHot, GreenHot, Rain
    Mechanical
    Drive Unit Brushless integral pan/tilt motor drive
    Pan Range 360° continuous rotation
    Tilt Angle 180°
    Tilt Range -58 to 90°
    Pan Speed 0.2 to 72° per second (variable)
    Tilt Speed 0.2 to 90° per second (variable)
    Pre-Position Speed 120°/second
    Preset Accuracy ±0.30° (typical)
    Proportional Pan / Tilt to Zoom Yes
    Audible Noise <66dB
    Electrical
    Input Voltage 18 VAC, ±10%, 50/60 Hz (dual source)
    Power Consumption Camera: 36 VA
    With heater: 54 VA
    Input Current Camera: 2 A, Heater: 1 A
    Miscellaneous
    Sectors/Titling 16 independent sectors, each with 20-character title
    Privacy Masking 24 individually-configurable privacy masks
    Prepositions 99, each with 20-character title
    Guard Tours Recorded Tours: 2, total duration 15 minutes
    Preset Tours: 1, consisting of up to 99 scenes, consecutively, and 1 customized up to 99 scenes
    Camera Control RS-485, Bilinx (coaxial)
    Washer Drive Optional washer kit (MIC-WKT Kit used with the appropriate HAC-WAS washer pump)
    Communication Protocol Bosch (Bilinx, OSRD), Pelco D/P
    Bosch OSRD requires use of converter device (MIC-BP3 or MIC-BP4, sold separately)
    (Bicom/Bilinx support on visible channel only)
    Languages English, Dutch, French, German, Italian, Portuguese, Spanish

    Czech and Russian available with separate language upload

    User Connection
    Power Via composite cable (sold separately)
    Control Data RS-485 (Twisted pair; Simplex, half and full duplex operation via composite cable) Biphase ±, (Optional; requires MIC Biphase module with external power supply)
    Video Dual coaxial via composite cable (sold separately) (Optical and optical/thermal cameras selectable)
    Alarm Input 1 tamper input (8 additional inputs possible with optional alarm card)
    Relay Outputs 2 relay outputs and washer relay output only with optional alarm card
    Alarm Communication Tamper switch (ground connection)
    Software CTFID software allows direct connection to a USBequipped PC via the MIC Series PSU over a full duplex to provide access to all camera functions and useful diagnostic tools
    Environmental
    Ingress Protection Rating IP68/NEMA 6P
    Operating Temperature -40 to 140 °F (-40 to 60 °C), with heater
    Cold Start -40 °F (-40 °C) (Requires 30-minute warm-up prior to PTZ operations)
    Storage Temperature Range -40 to 158 °F (-40 to 70 °C)
    Humidity 0 to 100%
    Wind Rating 150 mph (240 kph) (sustained)
    Camera: 517 N (116 lbf)
    Wall Mount: 130 N (29 lbf)
    Effective Projected Area (EPA) Camera: 0.192 m² / 2.06 ft²
    Wall Mount: 0.0483 m² / 0.52 ft²
    Vibration IEC 60068-2-6, Test Fc: Vibration (operational), 10m/s² (1.0 xg)
    Shock IEC 60068-2-27, Test Ea: Shock, 30 xg
    IK Code IK10
    Construction
    Viewing Window Tempered flat glass (optical) and germanium covering (thermal)
    Construction Machined aluminum
    Finish Alodine 5200 surface treatment with powder-coat paint, sand finish
    Window Wiper Standard, long-life silicone wiper
    Heater Standard
    Sunshield Optional; sold separately
    Dimensions (W x H x D) 10.5 x 17.8 x 7.9" (267 x 452 x 201 mm)
    Weight 23.50 lb (10.66 kg) (including 4" pitch circle diameter (PCD) base)
