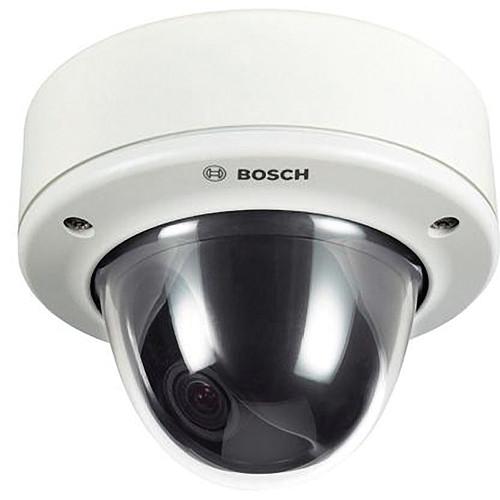

The Bosch VDC-485V09-20S Indoor FlexiDome XF Camera (Surface Mount), with a 1/3" CCD image sensor and 9-22mm (f/1.4) varifocal lens, delivers high-quality imagery with a resolution up to 540TVL (color).
If you own a Bosch wired analog & hd cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch VDC-485V09-20S Indoor FlexiDome XF Camera F.01U.081.328 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch VDC-485V09-20S Indoor FlexiDome XF Camera F.01U.081.328:
Signal System NTSC
Image Sensor 1/3" IT CCD
Number of Pixels 768 x 494
Resolution 540 TVL
Lens Focal Length: 9-22mm (f/1.4)
Viewing Angle: Wide 31.2 x 22.8° (H x V) / Tele 12.8 x 9.6° (H x V)
Focus: Manual
Zoom: Manual
Iris Operation Automatic iris control
Minimum Illumination Color

30 IRE: 2.48 Lux
50 IRE: 0.62 Lux
100 IRE: 0.28 Lux

Color + 10x SensUp

30 IRE: 0.248 Lux
50 IRE: 0.062 Lux
100 IRE: 0.028 Lux

NightSense

30 IRE: 0.88 Lux
50 IRE: 0.23 Lux
100 IRE: 0.099 Lux

NightSense + 10x SensUp

30 IRE: 0.088 Lux
50 IRE: 0.023 Lux
100 IRE: 0.0099 Lux
IR Illumination None
Signal-to-Noise Ratio >50dB
Controls AGC :Auto, maximum level selectable 28 dB
Auto black: On/off selectable
Electronic shutter: Flickerless, on/off, default shutter
NightSense (XF only): Auto, forced, off selectable
Day/Night (DN only): Auto, monochrome, color selectable
Dynamic range: 32 x dynamic range enhancement
Dynamic noise reduction: Automatic, off, selectable
Sharpness correction: Horizontal and vertical, symmetrical
Backlight compensation: Off, programmable window and level selectable
White balance: Automatic sensing (2500 to 9000 K), AWB hold and manual
Video motion detector: Four (4) areas, sensitivity selectable
Camera ID: 16-character editable string, position selectable
Video output: Composite video 1.0 Vpp, 75 ohm
Remote control: Bi-directional coaxial communication
Synchronization: Internal or LineLock
Connector: Flying leads (through the back)
Microphone None
Video Output BNC (Composite video 1.0 Vpp, 75 Ohm)
Mechanical Mounting: Flush on hollow surface with three 3 screws in a 4S electrical box
Color: White (RAL9010) trim ring with black inner liner
Adjustment Range: 360º pan, 90º tilt, ±90º azimuth
Dome Bubble: Polycarbonate, clear with UV blocking anti-scratch coating
Trim Ring: Aluminum
Power Rated Voltage: 12 VDC or 24 VAC, 50/60 Hz

Voltage Range: 10.8 to 39 VDC or 12 to 28 VAC, 45 to 65 Hz
Power Consumption 4 W (6 W with heater operating)
Operating Temperature -58 ~ 122°F (-50 ~ 50°C) - heater on
Dimensions (Diam. x H) Flush mount: 6.2 x 3.4" (158 x 85mm) - portion below ceiling
Surface mount: 6.2 x 5.1" (158 x 131mm)
Weight 1.6 lb (740g)
Packaging Info
Package Weight 3.7 lb
Box Dimensions (LxWxH) 9.1 x 8.5 x 7.6"
The user manual for the Bosch VDC-485V09-20S Indoor FlexiDome XF Camera F.01U.081.328 can be downloaded in .pdf format if it did not come with your new wired analog & hd cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bosch users keep a unique electronic library for Bosch wired analog & hd camerass, where you can use our link to download the user manual for the Bosch VDC-485V09-20S Indoor FlexiDome XF Camera F.01U.081.328.

The user manual lists all of the functions of the Bosch VDC-485V09-20S Indoor FlexiDome XF Camera F.01U.081.328, all the basic and advanced features and tells you how to use the wired analog & hd cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bosch service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bosch VDC-485V09-20S Indoor FlexiDome XF Camera F.01U.081.328. User manuals are also available on the Bosch website under Surveillance - Surveillance Video - Wired Analog & HD Cameras.
