User manual for Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589

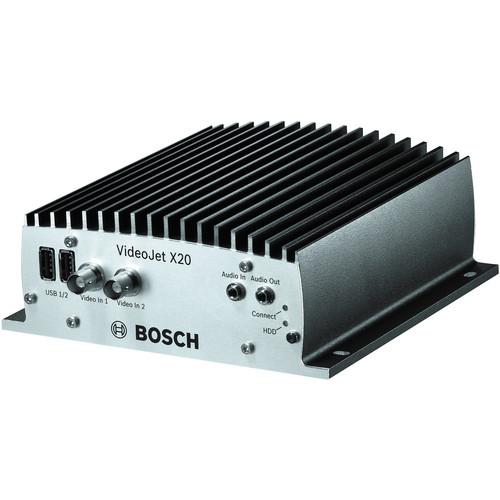

Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589
  • Manufacturer: Bosch
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders
  • Safety instructions
  • Startup and operation of the video encoders & decoders
  • Tips for setting up your Bosch
  • Settings and expert assistance
  • Contact Bosch service
  • Troubleshooting
  • Warranty information
  • Price: 480 USD
We recommend checking out our discussion threads on the Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589, which address similar problems with connecting and setting up Video Encoders & Decoders Bosch.



User manual for the Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589

The user manual for the Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.

The Bosch VideoJet X20 XF E H.264 Video Encoder compresses audio and video signals from 2 analog surveillance cameras into digital data for transmission over the network. This encoder supports the H.264 format for compressing high-quality audio and video signal without compromising on clarity. Furthermore, the dual streaming capability of this encoder allows you to view the live recording of 2 different places simultaneously on the monitor.

For integration with third-party analog surveillance cameras, this encoder features an independently configured M-JPEG stream. You can control compatible cameras via the RS-422, RS-232, and RS-485 signals. Additionally, the X20 XF E H.264 Video Encoder supports a host of protocols that allow you to configure and control the camera.
If you own a Bosch video encoders & decoders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589:
Input/Output
Video Input: 2x
Connector: BNC
Impedance: 75 ohm, switchable
Signal: Analog composite, 0.7 to 1.2 Vpp, NTSC
Audio Input: 2x mono line
Output: 1x mono line
Connector: 2x 3.5 mm stereo jack

Signal line in: 9 Kohm typical, 5.5 Vpp maximum
Signal line out: 3.0 Vpp at 10 Kohm / 1.7 Vpp at 16 ohm typical
Audio Formats AAC:
Profile: AAC-LC
Frequency range: 300 Hz to 6.4 KHz
Data rate: 48 Kbps at 16 KHz sampling rate
G.711:
Frequency range: 300 Hz to 3.4 KHz
Data rate: 80 Kbps at 8 KHz sampling rate
L16:
Frequency range: 300 Hz to 6.4 KHz
Data rate: 640 Kbps at 16 KHz sampling rate
Signal-to-noise ratio: >50 dB
Impedance 75 ohm, switchable
Alarm Input: 4x
Connector: Clamp (non-isolated closing contact)
Activation resistance: 10 ohm maximum
Relays Output: 1x
Connector: Clamp
Signal: 30 Vpp (SELV), 200 mA
Com Ports Clamp, RS‑232/422/485
Video
Standards H.264 main profile, H.264 baseline profile (ISO/IEC 14496‑10)
Data Rates 9.6 Kbps to 6 Mbps per channel
GOP Structure I, IP, IPBB, IBBRBP
Overall IP Delay 120 ms
Frame Rate 1 to 30 (NTSC)
Network
Ethernet 10/100 base‑T, auto-sensing, half/full duplex, RJ45
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP, IGMP V2/V3, ICMP, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB‑II), 802.1x, SMTP, iSCSI, UPnP (SSDP)
Encryption TLS 1.0, SSL, AES (optional)
Controls
Software Update Flash ROM, remote programmable
Configuration Configuration manager or web browser
Camera Control Via serial interface
Supported protocols and devices: Bosch (AutoDome, HSPT, MIC1-300 IP, TC8x00), Canon (VCC1, VC-C4R), CBC (SMD 12P/12PII/20P), JVC(TK-C676), Panasonic (WV-CS850), Pelco (Spectra D/P), Sensomatic (SpeedDome Ultra), Sony (EVI D30/31/D100), Ultrak (KD6), VT (VPT4x)

Basic functions only, no claim for full functionality valid. Bosch may not be made responsible if functions are not implemented or not working under all circumstances.

Certifications
Safety Region: IEC 60950-1
System Region: IEC 62676-2, EN 50132-5-2
Electromagnetic Compatibility Region: EU (EN 55103-1 video and audio equipment, EN 55103-2, EN 50130-4 alarm systems, EN 50121-4 railway, EN 55022 ITE, EN 55024 ITE, EN 61000-3-2, EN 61000-3-3), AUS/NZ (AS/NZS 3548 class B), US (FCC 47 CFR Part 15 subpart B class B)
Approvals USA: UL (Bosch Engineering UL online certifications directory)
Europe: CE(VideoJet X20 XF E)
Storage
Flash Card 1x CF slot for optional standard type I/II compact flash memory card, 2 TB maximum
Electrical
Power Supply Via external unit
Input Voltage 12 VDC
Current Consumption 0.75 A
Power Consumption Approximately 9 W
Environmental
Operating Temperature 32 to 122°F (0 to 50°C) ambient temperature
Mechanical
Dimensions (H x W x D) 1.5 x 5.7 x 7.2" (38 x 146 x 183 mm)
Weight Approximately 1.3 lb (0.6 kg)
Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 11.9 x 8.3 x 3.0"
The user manual for the Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589 can be downloaded in .pdf format if it did not come with your new video encoders & decoders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bosch users keep a unique electronic library for Bosch video encoders & decoderss, where you can use our link to download the user manual for the Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589.

The user manual lists all of the functions of the Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589, all the basic and advanced features and tells you how to use the video encoders & decoders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bosch service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bosch VideoJet X20 XF E H.264 Video Encoder F.01U.216.589. User manuals are also available on the Bosch website under Surveillance - Surveillance Video - Video Transmission - Video Encoders & Decoders.
