User manual Brother TD-4000 Desktop Bar Code Printer TD4000

Operating instructions and pdf manual for use - Brother TD-4000 Desktop Bar Code Printer TD4000 User manual, User manual Brother TD-4000 Desktop Bar Code Printer TD4000, Brother, TD-4000, Desktop, Bar, Code, Printer, TD4000, Video


User manual for Brother TD-4000 Desktop Bar Code Printer TD4000

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

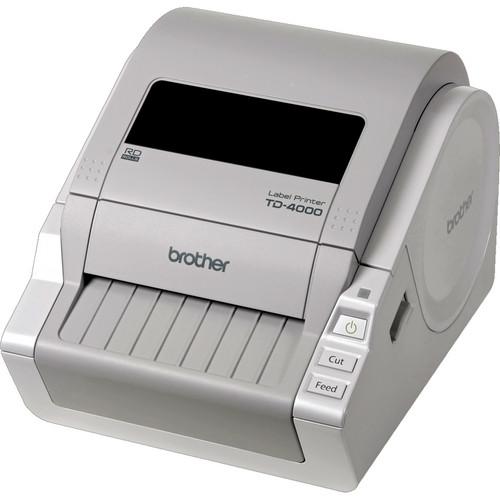

Brother  TD-4000 Desktop Bar Code Printer TD4000
  • Manufacturer: Brother
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Label Printer
  • Safety instructions
  • Startup and operation of the label printer
  • Tips for setting up your Brother
  • Settings and expert assistance
  • Contact Brother service
  • Troubleshooting
  • Warranty information
  • Price: 260 USD
We recommend checking out our discussion threads on the Brother TD-4000 Desktop Bar Code Printer TD4000, which address similar problems with connecting and setting up Label Printer Brother.



User manual for the Brother TD-4000 Desktop Bar Code Printer TD4000

The user manual for the Brother TD-4000 Desktop Bar Code Printer TD4000 provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Label Printer.

The Brother TD-4000 Desktop Bar Code Printer is a cost-effective way to print out labels, receipts, and tags all at your desktop. This true GDI printer is compatible with Windows operating systems, including Windows 7, and comes packaged with Brother's PT-Editor software. This application allows you to add bar codes, lines, curves and more to your printouts. In addition, the TD-4000 can be linked to a Microsoft Excel or Access database file or SQL server. The printer is also compatible with third party Windows-based software apps. Along with numerous design options, the TD-4000 also features a fast print speed of 4.3 inches per second. Other features include an automatic cutter, a 1-year limited warranty, and toll free customer support.
If you own a Brother label printer and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Brother TD-4000 Desktop Bar Code Printer TD4000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Brother  TD-4000 Desktop Bar Code Printer TD4000Download user manual for Brother TD-4000 Desktop Bar Code Printer TD4000
(PDF file, 5.62 MB)
Additional parameters of the Brother TD-4000 Desktop Bar Code Printer TD4000:
Color Grey/white
Operation Modes PC connected: dumb printer, template
Connected to host Peripheral: serial interface
Status Indicator LED (3 colors)
Cutter Automatic (built-in)
Cutter Life Approximately 300,000 cuts (liner only)
Approximately 150,000 cuts (label and liner)
Print Speed 4.29 ips (109mm/sec)
Printing Method Direct thermal
Sensor Fixed transmissive
location: edge
Media Type Drop-in roll or fanfold (rear slot) continuous label or paper, die cut labels, tag stock
Maximum media width: 4.13" / 105mm
Tape Sizes Maximum roll size - outside diameter: 4" (101.6mm)
Maximum Tape Width Thickness with adhesive: 0.003-0.007" (0.076-0.178mm)
Tickness without adhesive: 0.003"-0.006" (0.076-0.153mm)
Maximum Print Size Width: 3.88 x 1" (98.6 x 25.4mm)
Length: 1" (25.4mm)
Control Panel On/off, feed, cut
Maximum Resolution 300 x 300 dpi (12 x 12 dots/mm)
Fonts ESC P: Helsinki, Letter Gothic Template
Bitmap and outline: Helsinki, Brussels, Letter Gothic
Font Styles ESC P: 21, 28, 44, 56, 88, 120 dots
Template (bitmap): 21, 28 dots
Template (outline): 35 - 380 dots (20 sizes)
Printer Emulations Raster, ESC P, Template
Memory 2MB
Memory for Transferred Data Up to 99 template files
Symbols for Windows 1379
Mirror Printing Yes
Vertical Printing Yes
Rotate Printing Yes
Date/Time Stamp Through PC
Multiple Copies Up to 9,999 Copies (PT-Editor)
Bar-Code Types Linear: Code39, ITF (I-2/5), UPC-A, UPC-E, EAN8, EAN13, Codabar (NW-7), Code128, UCC/EAN128, Postnet, Laser Bar Code, ISBN-2, ISBN-5, GS1 DataBar (RSS)
2-Dimensional: PDF417, QR Code, Micro QR Code, Data Matrix, Maxicode
Microsoft Word Add-In Office 2000/2003/2007
Database File Compatibility .csv, .txt, .mdb, .xls and Microsoft SQL server
Software P-touch PT-Editor 5.0, Transfer Manager 2.1, Transfer Express, Library 2.1
Power Switch Mechanical
Networking N/A
Interface USB (1.1 or 2.0), Serial (RS-232C)
Compatibility PC
Operating System Windows 2000 Professional/XP/7, Windows Vista
Power Requirements 120VAC, 60Hz, 1.8A
Energy Star compliant
Dimensions 6.8 x 9.0 x 6.2" / 173 x 229 x 158mm
Weight 4 lb / 1.85kg
Without RD roll
Packaging Info
Package Weight 6.6 lb
Box Dimensions (LxWxH) 14.1 x 9.7 x 9.2"
The user manual for the Brother TD-4000 Desktop Bar Code Printer TD4000 can be downloaded in .pdf format if it did not come with your new label printer, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Brother users keep a unique electronic library for Brother label printers, where you can use our link to download the user manual for the Brother TD-4000 Desktop Bar Code Printer TD4000.

The user manual lists all of the functions of the Brother TD-4000 Desktop Bar Code Printer TD4000, all the basic and advanced features and tells you how to use the label printer. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Brother service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Brother TD-4000 Desktop Bar Code Printer TD4000. User manuals are also available on the Brother website under Computers & Solutions - Printers & Accessories - Label Printer.
