User manual Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024

Operating instructions and pdf manual for use - Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024 User manual, User manual Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024, Buffalo, BS-GS2024, 24, Port, Gigabit, Smart, Switch, BS-GS2


User manual for Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024

Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024
  • Manufacturer: Buffalo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your Buffalo
  • Settings and expert assistance
  • Contact Buffalo service
  • Troubleshooting
  • Warranty information
  • Price: 196 USD
Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024 Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024 Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024 Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024

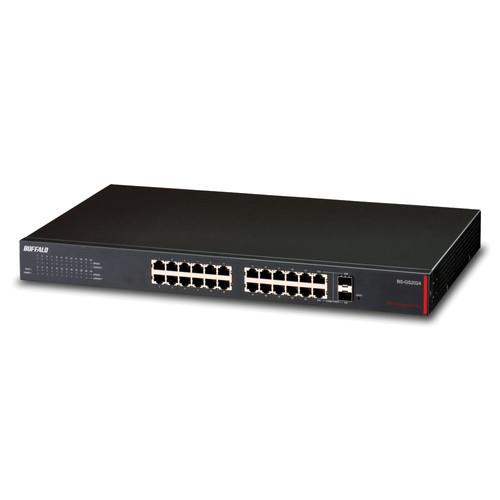

Click to enlarge image

We recommend checking out our discussion threads on the Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs Buffalo.



User manual for the Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024

The user manual for the Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

With plug-and-play functionality, the BS-GS2024 24 Port Gigabit Smart Switch from Buffalo can be added to nearly any existing network. The durable metal chassis and various installation options make this versatile switch easy to install and manage. With 24 Gigabit Ethernet ports and a 48 Gbps switching capacity the BS-GS2024 is capable of handling high bandwidth applications. Additionally, this smart switch comes equipped with 9 KB jumbo frame support, store and forward switching method, and a 16,384 MAC address table size.
If you own a Buffalo network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024:
LAN Interface 24 (2 x SFP ports)
Switching Capacity 48 Gbps
Buffer Memory 3 MB
Data Transfer Rate 10/100/1000 Mbps
Transmission Speed 1000 Mbps (1000 BASE-T), 100 Mbps (100 BASE-TX), 10 Mbps (10 BASE-T)
Switching Method Store and forward
Jumbo Frame 9,216 Bytes (Header 14 Bytes + FCS 4 Bytes inclusive)
Encryption 8B1Q4/4D-PAM5 (1000 BASE-T), 4B5B/MLT-3 (100 BASE-TX), Manchester encoding (10 BASE-T)
Access Methods CSMA/CD
Data Transfer Speed 1,488,095 packets/second (1000 BASE-T), 148,810 packets/second (100 BASE-TX), 14,881 packets/second (10 BASE-T)
MAC Address Table 16,384 (self learning)
Aging Time Default 300 seconds
Standard Compliance IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), IEEE802.1D Spanning Tree Protocol, IEEE802.1w Rapid Spanning Tree Protocol, IEEE802.1p Class of Service, Priority Protocol, IEEE802.1Q VLANs, IEEE802.3ad (LACP), IEEE802.3az, AUTO-MDIX
Flow Control IEEE 802.3x
Connector RJ-45 8-pin connector (shielded)
Power Internal AC 100-240V, 50/60 Hz
Power Consumption Max. 18.6 W
Operating Temperature 32 to 122°F / 0 to 50°C
Operating Humidity 10 to 85% non-condensing
Regulatory Compliance VCCI Class A, UL60950-1, FCC Class A, Canada IC Class A, VCCI Class B, FCC Class B, Canada IC Class B, UL
Dimensions 17.32 x 10.11 x 1.69" / 43.99 x 25.68 x 4.29 cm
Weight 6.8 lb / 3.1 kg
The user manual for the Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024 can be downloaded in .pdf format if it did not come with your new network switches, bridges & hubs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Buffalo users keep a unique electronic library for Buffalo network switches, bridges & hubss, where you can use our link to download the user manual for the Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024.

The user manual lists all of the functions of the Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024, all the basic and advanced features and tells you how to use the network switches, bridges & hubs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Buffalo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Buffalo BS-GS2024 24 Port Gigabit Smart Switch BS-GS2024. User manuals are also available on the Buffalo website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
