User manual Bushnell ImageView 15-45x70 Spotting Scope 111545

Operating instructions and pdf manual for use - Bushnell ImageView 15-45x70 Spotting Scope 111545 User manual, User manual Bushnell ImageView 15-45x70 Spotting Scope 111545, Bushnell, ImageView, 15-45x70, Spotting, Scope, 111545,


User manual for Bushnell ImageView 15-45x70 Spotting Scope 111545

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.

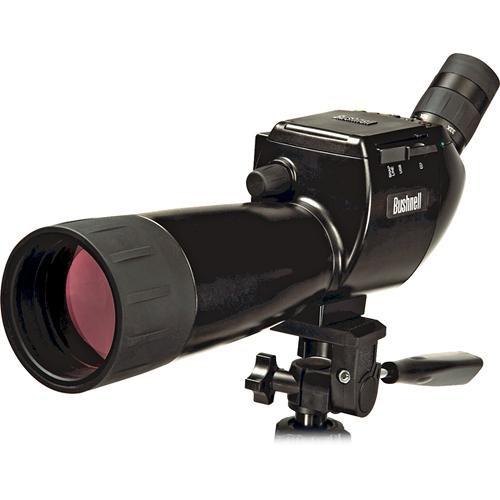

Bushnell ImageView 15-45x70 Spotting Scope 111545
  • Manufacturer: Bushnell
  • Basic description and contents of package
  • Product classification: Optics - Spotting Scopes - Spotting Scopes
  • Safety instructions
  • Startup and operation of the spotting scopes
  • Tips for setting up your Bushnell
  • Settings and expert assistance
  • Contact Bushnell service
  • Troubleshooting
  • Warranty information
  • Price: 300 USD
We recommend checking out our discussion threads on the Bushnell ImageView 15-45x70 Spotting Scope 111545, which address similar problems with connecting and setting up Spotting Scopes Bushnell.



User manual for the Bushnell ImageView 15-45x70 Spotting Scope 111545

The user manual for the Bushnell ImageView 15-45x70 Spotting Scope 111545 provides necessary instructions for the proper use of the product Optics - Spotting Scopes - Spotting Scopes.

The ImageView 15-45x70 Spotting Scope from Bushnell features multicoated optics and a respectable 70 mm objective lens - on the back end of things there's both a 15-45x normal eyepiece and an integrated 5.1-megapixel camera that provides 22x magnification.
If you own a Bushnell spotting scopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Bushnell ImageView 15-45x70 Spotting Scope 111545 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Bushnell ImageView 15-45x70 Spotting Scope 111545:
Binocular
Prism Type Porro
Magnification 15-45x
Objective Lens Diameter 2.8" (70mm)
Angle of View 15x:  2.3°
45x:  1.0°
Field-of-View (@ 1000 Yds) 15x:  121' (40 m @ 1000 m)
45x:  53' (17 m @ 1000 m)
Minimum Focus Distance 26.0' (7.9 m)
Exit Pupil Diameter 15x:  4.7mm
45x:  1.6mm
Eye Relief 11mm
Relative Brightness 15x:  21.8
45x:   2.4
Twilight Factor 15x:  32.4
45x:  56.1
Weatherproofing None
Digital Camera
Image Sensor 5.1 Megapixel CCD
Image File Formats JPEG (Best, Better, Standard)
Recorded Resolution Not Specified by Manufacturer
Video/Audio Recording No
Lens Focal Length Equivalent 951mm (35mm equivalent)
Digital Zoom Yes (3x)
Sensitivity Not Specified by Manufacturer
Shutter Speed Not Specified by Manufacturer
Exposure Modes Auto, Exposure Compensation (+/-2EV in 0.5EV increments)
Burst Capability Not Specified by Manufacturer
Self Timer Not Specified by Manufacturer
Date & Time Stamp Yes
Built-in Memory Not Specified by Manufacturer
Compatible Memory Cards Secure Digital (SD) Card {4GB Max}
Recording Capacity Not Specified by Manufacturer
Power Source Two 1.5-volt "AA" batteries
Computer Interface USB
Direct Print Capable No
Remote Control Remote release included
Video Output Via USB
System & Software Requirements Windows System ONLY
  • Pentium III 500 MHz Processor or better
  • Windows 98SE, Me, 2000, XP
  • 64MB RAM
  • 200MB available Hard Disk space
  • CD-ROM drive
  • USB port
  • SVGA video card (2MB Video RAM)
  • 800x600 pixel display with 16-bit high color

Images can be transferred to a Macintosh computer with a compatible SD Card Reader and an optional Secure Digital (SD) Card.

LCD Display 2.5" Flip-up Color LCD
Language Options English, French, Spanish, Italian, German, Chinese
Playback Options Single Image, Index (9-up), Slide Show, Zoom-in, Protect/Erase (one, all)
Dimensions 11.6" (295mm) in Length {unspecified width/height}
Weight 1.57 lbs (711g)
Packaging Info
Package Weight 6.55 lb
Box Dimensions (LxWxH) 18.1 x 10.6 x 5.1"
The user manual for the Bushnell ImageView 15-45x70 Spotting Scope 111545 can be downloaded in .pdf format if it did not come with your new spotting scopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Bushnell users keep a unique electronic library for Bushnell spotting scopess, where you can use our link to download the user manual for the Bushnell ImageView 15-45x70 Spotting Scope 111545.

The user manual lists all of the functions of the Bushnell ImageView 15-45x70 Spotting Scope 111545, all the basic and advanced features and tells you how to use the spotting scopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Bushnell service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Bushnell ImageView 15-45x70 Spotting Scope 111545. User manuals are also available on the Bushnell website under Optics - Spotting Scopes - Spotting Scopes.
