User manual for C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525

C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525
  • Manufacturer: C2G
  • Basic description and contents of package
  • Product classification: TVs & Entertainment - Cables & Accessories - HDMI Cables
  • Safety instructions
  • Startup and operation of the hdmi cables
  • Tips for setting up your C2G
  • Settings and expert assistance
  • Contact C2G service
  • Troubleshooting
  • Warranty information
  • Price: 35 USD

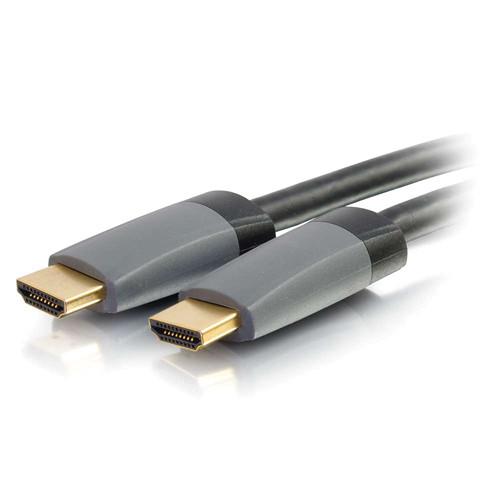

C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525 C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525 C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525
Click to enlarge image

We recommend checking out our discussion threads on the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525, which address similar problems with connecting and setting up HDMI Cables C2G.



User manual for the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525

The user manual for the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525 provides necessary instructions for the proper use of the product TVs & Entertainment - Cables & Accessories - HDMI Cables.

The black C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male HDMI Cable with Ethernet is a 23' cable that connects multimedia source devices in home theater, desktop or commercial audio video applications requiring high speed HDMI features. The CL2 rated cable jacket is designed to meet the requirements for in-wall installations. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection.

This cable supports Ultra HD, 4K at 50/60 Hz (2160p), up to 32 audio channels and wide angle theatrical 21:9 video aspect ratio.

Note: both the source device and display must support an HDMI feature in order to pass that feature through this cable.
If you own a C2G hdmi cables and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525:
General
Resolution Supported Up to 4K @ 50/60 Hz (2160p)
Support 3D video, Deep Color and x.v. Color
Dolby True HD, DTS-HD Master Audio and up to 32 audio channels
1536 kHz audio sample frequency
21:9 video aspect ratio
Connector Plating Gold
Connector 1 19-pin HDMI male
Connector 2 19-pin HDMI male
Length 23' (7 m)
Dimensions 0.51 x 0.82 x 1.5" (13 x 21 x 39 mm)
Weight 1.75 lb (0.79 kg)
Electrical
Bandwidth 10.2 Gbps
Nominal Impedance With Tolerance: 100 Ω
Nominal Capacitance 95.2 pF/m
Dielectric Strength 2.1
Insulation Resistance 10 MΩ
Nominal Attenuation 300 KHz - 825 MHz: < 8 dB
825 MHz - 2.475 GHz: < 21 dB
2.457-4.125 GHz: < 30 dB
Physical
Bend Radius 2.87" (73 mm)
Temperature Rating 176°F (80°C)
Operating Temperature -4-176°F (-20-80°C)
Storage Temperature -4-176°F (-20-80°C)
Approvals CMG, CE
Construction
Drain Wire 28 AWG (7/0.127) bare copper
Foil Shield Aluminum foil and Mylar 25% minimum overlapped
Braided Shield 16/10/0.12 CCAM 70% coverage
Jacket CMG (PVC, UL/CL2)
Outer Diameter 0.28 +/- 0.007" (7.3 +/- 0.2 mm)
Inner Diameter Conductor 1: 0.04 +/- 0.002" (1.05 +/- 0.05 mm)
Conductor 2: 0.02 +/- 0.002" (0.7 +/- 0.05 mm)
Insulation Conductor 1: foamed PE
Conductor 2: HDPE
Packaging Info
Package Weight 1.8 lb
Box Dimensions (LxWxH) 9.0 x 8.0 x 2.0"
The user manual for the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525 can be downloaded in .pdf format if it did not come with your new hdmi cables, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other C2G users keep a unique electronic library for C2G hdmi cabless, where you can use our link to download the user manual for the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525.

The user manual lists all of the functions of the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525, all the basic and advanced features and tells you how to use the hdmi cables. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from C2G service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the C2G In-Wall CL2-Rated Select High-Speed Male HDMI to Male 42525. User manuals are also available on the C2G website under TVs & Entertainment - Cables & Accessories - HDMI Cables.
