User manual C2G RapidRun Decora-Style Multi-Format Wall Plate 60054

Operating instructions and pdf manual for use - C2G RapidRun Decora-Style Multi-Format Wall Plate 60054 User manual, User manual C2G RapidRun Decora-Style Multi-Format Wall Plate 60054, C2G, RapidRun, Decora-Style, Multi-Format, Wall, Plate, 60054,


User manual for C2G RapidRun Decora-Style Multi-Format Wall Plate 60054

C2G RapidRun Decora-Style Multi-Format Wall Plate 60054
  • Manufacturer: C2G
  • Basic description and contents of package
  • Product classification: A/V Presentation - Cables & Accessories - Floor, Wall & Table Boxes
  • Safety instructions
  • Startup and operation of the floor, wall & table boxes
  • Tips for setting up your C2G
  • Settings and expert assistance
  • Contact C2G service
  • Troubleshooting
  • Warranty information
  • Price: 20 USD
We recommend checking out our discussion threads on the C2G RapidRun Decora-Style Multi-Format Wall Plate 60054, which address similar problems with connecting and setting up Floor, Wall & Table Boxes C2G.



User manual for the C2G RapidRun Decora-Style Multi-Format Wall Plate 60054

The user manual for the C2G RapidRun Decora-Style Multi-Format Wall Plate 60054 provides necessary instructions for the proper use of the product A/V Presentation - Cables & Accessories - Floor, Wall & Table Boxes.

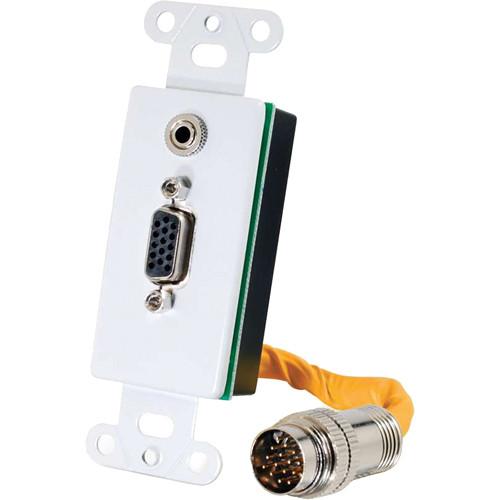

The white RapidRun Decora-Style Multi-Format Wall Plate with HD15 VGA Connector & 3.5mm Jack from C2G gives a clean and aesthetic finish to your in-wall audio/video installations. This wall plate can be used with a Multi-Format Runner Cable (sold separately) for projectors and any display requiring a VGA and 3.5mm audio connection.

Using pre-terminated breakaway flying leads (sold separately) and wall plates with an in-wall runner cable ensures flexible, efficient, and high-quality connections with no field terminations for all types of equipment.

Suitable for educational and institutional installations, this wall plate receives PC video and 3.5mm stereo audio signals from a single runner cable. Its aluminum body offers durability.

The wall plate also has a locking connector that enables the integrator to save valuable space inside the surface mount or electrical box, which typically is already packed with cables. The included keystone bezels will work with most brands of keystone inserts including Leviton, L-com, NetKey, ADC Krone, HellermannTyton, and Allen Tel.
If you own a C2G floor, wall & table boxes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the C2G RapidRun Decora-Style Multi-Format Wall Plate 60054 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the C2G RapidRun Decora-Style Multi-Format Wall Plate 60054:
Electrical
Component 3 Coax Conductor
Impedance 75 ± 5 Ω
Capacitance 71 ± 2 pF/ft (nominal)
Velocity of Propagation 78 ± 1%
DC Resistance 237 ± 10 Ω/km
Dielectric Strength 500 VAC/minute
Insulation Resistance At 500 V: 10 MΩ/km
Conductor Type: 24AWG (7/0.2) (tinned copper)
Foil Shield Aluminum foil (100% coverage)
Insulation PVC
Component 3 Twisted Pair Conductors
DC Resistance 93.25 Ω/m at 68°F (20°C)
Dielectric Strength 750 VAC/minute
Insulation Resistance 100 MΩ/km at 68°F (20°C)
Conductor Type: Tinned Copper: 24 AWG (7/0.2)
Foil Shield Aluminum foil (100% coverage)
Insulation PVC
Component Two 26 AWG Conductors
Conductor Type: Tinned Copper: 24 AWG (7/0.2)
Insulation PVC
Component VGA Connector
Connector Type HD15
Gender Female
Material Contact: Brass, 3 µm gold plated
Insulation Black PBT

Pin 9 is not loaded

Component 3.5mm Connector
Connector Type 3.5mm stereo
Gender Female
Material Contact: Brass, 3 µm nickel plated
Insulation Black PBT
Component RapidRun Din Connector
Connector Type DIN 15-pin
Gender Male
Material Contact: Brass, 3 µm gold plated
Insulation Black PBT
Attenuation Nominal
Minimum & Maximum Limits at 1 to 825 MHz Frequency: -5 dB
Minimum & Maximum Limits at 825 to 2475 MHz Frequency: -5 and -12 dB respectively
Minimum & Maximum Limits at 2475 to 4125 MHz Frequency: -12 and -20 dB respectively
Minimum & Maximum Limits at 4125 to 5100 MHz Frequency: -20 and -25 dB respectively
Physical
Cable Jacket Type Orange heat shrink
Voltage Rating 30 V
Temperature Minimum: -13°F (-25°C)
Maximum: 176°F (80°C)
Minimum Bend Radius 3.54" (90.00 mm)
Dimensions Length between two mounts: 3.9" (97.0 mm) Width: 1.3" (33.0 mm) Thickness (excluding protrusion): 0.8" (20.0 mm) Length of the cable (including connector): 5.11" (130.00 mm) Length of the HD15 VGA Connector: 1.5" (37.0 mm) Diameter of the HD15 VGA Connector: 0.7" (18.5 mm)
Weight 0.240 lb (0.108 kg)
Packaging Info
Package Weight 0.25 lb
Box Dimensions (LxWxH) 4.3 x 2.0 x 1.7"
The user manual for the C2G RapidRun Decora-Style Multi-Format Wall Plate 60054 can be downloaded in .pdf format if it did not come with your new floor, wall & table boxes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other C2G users keep a unique electronic library for C2G floor, wall & table boxess, where you can use our link to download the user manual for the C2G RapidRun Decora-Style Multi-Format Wall Plate 60054.

The user manual lists all of the functions of the C2G RapidRun Decora-Style Multi-Format Wall Plate 60054, all the basic and advanced features and tells you how to use the floor, wall & table boxes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from C2G service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the C2G RapidRun Decora-Style Multi-Format Wall Plate 60054. User manuals are also available on the C2G website under A/V Presentation - Cables & Accessories - Floor, Wall & Table Boxes.
