User manual for the Camplex SMPTE Hybrid FUW/PUW LEMO Gepco Outdoor HF-FUWPUW-G-0500
The user manual for the Camplex SMPTE Hybrid FUW/PUW LEMO Gepco Outdoor HF-FUWPUW-G-0500 provides
necessary instructions for the proper use of the product Professional Video - Cables - Fiber Optic Cables.

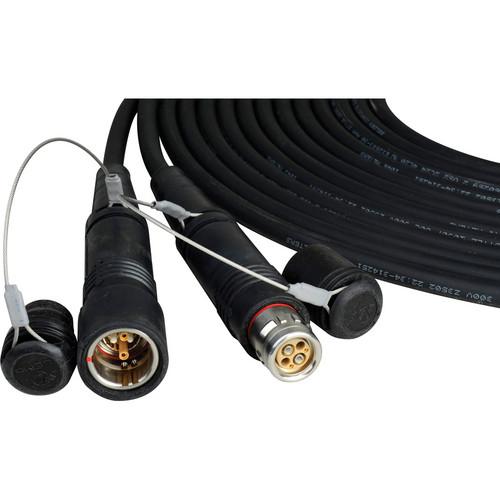

This 500 ft SMPTE Hybrid FUW/PUW LEMO Gepco Outdoor Fiber Cable from Camplex is a cable-mount, camera-to-CCU connection cable combining optical, electrical, and control signal paths. It features an FUW LEMO connector and round socket PUW LEMO connector. It uses an extra-flexible, Gepco, 9.2mm, harsh environment outside broadcast cable designed to US SMPTE standards. All assemblies are tested for < -55dB return loss, exceeding SMPTE 304M/311M standards. Diagnostics documentation is provided with each cable.
This cable is standardized by SMPTE for HDTV broadcast camera use. It supports 19.4 Mbps to 3 Gbps bandwidths.
|
If you own a Camplex fiber optic cables and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Camplex SMPTE Hybrid FUW/PUW LEMO Gepco Outdoor HF-FUWPUW-G-0500 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Camplex SMPTE Hybrid FUW/PUW LEMO Gepco Outdoor HF-FUWPUW-G-0500:
| Length | 500 ft (152 m) | | Cable Type | Gepco, extra-flexible, 9.2 mm, harsh environment outside broadcast cable | | Connector 1 | FUW LEMO connector | | Connector 2 | Round socket PUW LEMO connector | | Bandwidth | 19.4 Mbps to 3 Gbps | | Diagnostics | Tested for < -55dB return loss (documentation provided with each cable) | |
