User manual Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016

Operating instructions and pdf manual for use - Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016 User manual, User manual Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016, Canon, imageCLASS, MF624Cw, All-in-One, Colo


User manual for Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016

Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Printers & Accessories - Laser Printers
  • Safety instructions
  • Startup and operation of the laser printers
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
  • Price: 320 USD
Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016 Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016

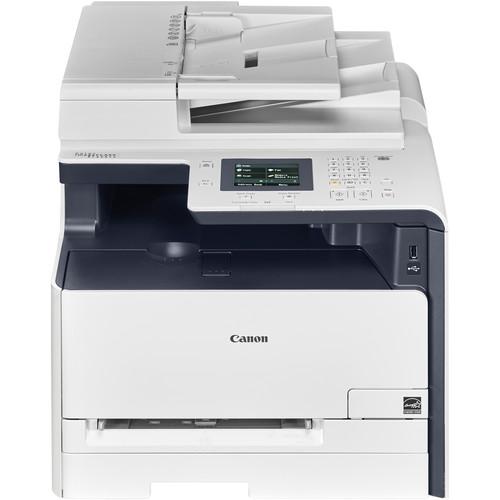

Click to enlarge image

We recommend checking out our discussion threads on the Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016, which address similar problems with connecting and setting up Laser Printers Canon.



User manual for the Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016

The user manual for the Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016 provides necessary instructions for the proper use of the product Computers & Solutions - Printers & Accessories - Laser Printers.

Take care of your basic needs with the imageCLASS MF624Cw All-in-One Color Laser Printer from Canon, which offers printing, scanning, and copying in a single unit. High quality documents can be produced at resolutions up to 600 x 600 dpi and at speeds up to 14 ppm and a first print out time of 18 seconds.

Scanning is possible with either the flatbed or ADF, which feature an optical resolution of 600 x 600 dpi, which can be interpolated up to 9600 x 9600 dpi. Copying benefits from this resolution as well as the print speed with simplex at up to 14 ppm. Also, it has a variety of settings and options to allow you to get the exact type of copy you need.

Paper is handled in a multitude of ways with a 150-sheet input tray, a 1-sheet multipurpose tray, and a 50-sheet automatic document feeder all available. The printer is also quite durable with a monthly duty cycle of 30,000 pages. Changing settings is simplified with the implementation of a 7-line QVGA color touchscreen LCD.

Wireless direct connection is possible so users can print from their mobile devices. Also, this allows for Scan to Cloud functionality. In addition to this, a USB host port is available for printing from and scanning to a mobile drive. And, the printer has standard USB 2.0 and Ethernet connectivity options.
If you own a Canon laser printers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016:
Specifications
Functions Print, scan, copy
Printer
Printing Technology Color laser
Print Color CMYK: Cyan, magenta, yellow, black
Maximum Resolution 600 x 600 dpi (1200 x 1200 dpi equivalent)
Print Speed 14 ppm
First Print Out Speed 18 seconds or less
Toner Cartridge Compatibility 131 H Black Toner Cartridge (~2,400 pages)
131 Black Toner Cartridge (~1,400 pages)
131 YMC Toner Cartridge (~1,500 pages)
Duplex Printing Manual
Maximum Printable Area 8.5 x 14" / 21.6 x 35.6 cm
Printer Duty Cycle Monthly: 30,000 pages
Printer Language UFR II LT (host-based)
Print Features Poster, watermark, page composer, toner saver, direct print from USB host
Scanner
Scanner Type Flatbed, ADF
Image Sensor Color Contact Image Sensor (CIS)
Optical Resolution 600 x 600 dpi
Interpolated Resolution 9600 x 9600 dpi
Maximum Scan Area Flatbed: 8.5 x 11.0" / 21.6 x 27.9 cm
ADF: 5.5 x 5.0" / 14.0 x 12.7 cm to 8.5 x 14.0" / 21.6 x 35.6 cm
Scanner Drivers TWAIN, WIA
Scan File Format JPEG, TIFF, PDF, Compact PDF, PDF (OCR)
Color Depth 24-bit
Grayscale 256 levels
Duplex Scanning No
Scanner Features Pull scan, push scan, scan to USB
Copier
Maximum Resolution 600 x 600 dpi
Copy Speed 14 ppm
First Copy-Out Time 19 sec
Maximum Copy Size Flatbed: 8.5 x 11.0" / 21.6 x 27.9 cm
ADF: 5.5 x 5.0" / 14.0 x 12.7 cm to 8.5 x 14.0" / 21.6 x 35.6 cm
Duplex Copying No
Quantity 99 copies
Reduction / Enlargement 25-400%
Recovery 8 seconds
Copy Features Frame erase, memory sort, 2-on-1, 4-on-1, ID Card Copy
Media Handling
Paper Handling Input tray
Multipurpose tray
Automatic document feeder
Output tray
Paper Capacity Input Tray: 150 sheets
Multipurpose Tray: 1 sheet
ADF: 50 sheets
Output: 125 sheets
Paper Types Plain, heavy, recycled, color, coated, transparency, label, envelope, index
Paper Sizes Input Tray: 3.3 x 5.0" / 8.3 x 12.7 cm to 8.5 x 14.0" / 21.6 x 35.6 cm
Multipurpose Tray: 2.0 x 5.0" / 5.1 x 12.7 cm to 8.5 x 14.0" / 24.6 x 35.6 cm
Media Weight 16 lb bond to 58 lb cover / 60 to 220 gsm
Connectivity
Interfaces USB 2.0
10/100 Base-T Ethernet
Wi-Fi 802.11b/g/n
Wireless Printing Features Canon PRINT Business, Apple AirPrint, Mopria Print Service, Google Cloud Print
OS Compatibility Windows 10, 8.1, 8, 7, Vista, Server 2012 R2, Server 2012, Server 2008 R2, Server 2008, Vista, Server 2003
Mac OS X 10.5.8 and later
Linux (print only)
General Attributes
Control Panel 7-line QVGA color touchscreen LCD
Favorites Settings one-touch button
Warm-Up Time 23 seconds or less
Power Requirements 120-127 VAC, 60 Hz
Power Consumption Max: 900 W or less
Operation: 400 W
Standby: 20 W
Energy Saver: 2 W
Typical Power Consumption 0.4 kWh
Acoustics Power Level
Standby Mode: Inaudible
Color Printing: 6.2 B(A) or less
Black & White Printing: 6.3 B(A) or less
Pressure Level
Standby Mode: Inaudible
Printing: 48 dB(A)
Environmental Conditions Temperature: 50 to 86°F / 10 to 30°C
Humidity: 20 to 80% relative, non-condensing
Dimensions 17.0 x 19.1 x 16.9" / 43.2 x 48.5 x 42.9 cm
Weight 57.3 lb / 26 kg with cartridges
Packaging Info
Package Weight 67.0 lb
Box Dimensions (LxWxH) 22.3 x 21.5 x 21.0"
The user manual for the Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016 can be downloaded in .pdf format if it did not come with your new laser printers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon laser printerss, where you can use our link to download the user manual for the Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016.

The user manual lists all of the functions of the Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016, all the basic and advanced features and tells you how to use the laser printers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon imageCLASS MF624Cw All-in-One Color Laser Printer 9946B016. User manuals are also available on the Canon website under Computers & Solutions - Printers & Accessories - Laser Printers.
