User manual Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002

Operating instructions and pdf manual for use - Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002 User manual, User manual Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002, Canon, VB-H41, 1080p, HD, Indoor, IP, PTZ, Camer


User manual for Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002

Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002
  • Manufacturer: Canon
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Wired IP Cameras
  • Safety instructions
  • Startup and operation of the wired ip cameras
  • Tips for setting up your Canon
  • Settings and expert assistance
  • Contact Canon service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002, which address similar problems with connecting and setting up Wired IP Cameras Canon.



User manual for the Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002

The user manual for the Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

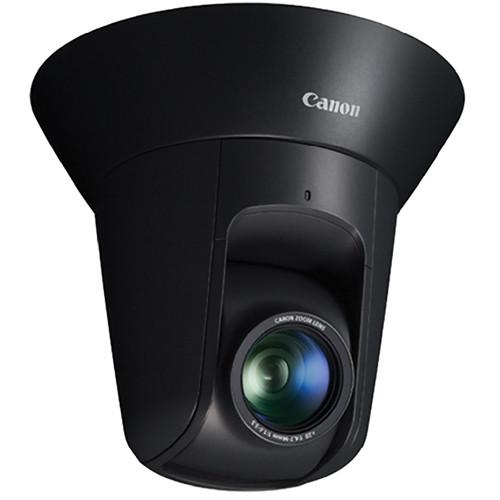

The Canon 6812B002 VB-H41 Full HD PTZ IP Security Camera comes with a 2.1 MP CMOS sensor that captures detailed images. The camera includes a 60.4° wide-angle 20x zoom lens (with 12x digital zoom) designed to maximize its low-light performance. The lens allows the camera to record color videos in up to 0.4 lux and black/white videos in up to 0.02 lux, making it suitable to use for low-light conditions.

Moreover, this Full HD Security Camera features the DIGIC DV III image processor, the DIGIC NET II network video processor, and an improved auto focus algorithm to improve focusing accuracy even in the most challenging low-light, low-contrast environments. Together with a built-in thermal sensor, the camera’s auto focus algorithm also corrects for temperature changes in the installation environment.

The Electronic Image Stabilization feature minimizes blur caused by vibration in the installation base, and the camera supports PTZ and preset control via a USB joystick. In addition, the recorded videos can be streamed with low bandwidth utilization and disk space usage thanks to the H.264 codec.

The VB-H41 camera is loaded with on-board video analytics and functions, including Moving Object Detection, Removed Object Detection, Abandoned Object Detection, Camera Tampering Detection, Volume Level Detection, and Passing (or “tripwire”) Detection, which allow it to be tailored to fit your monitoring needs. Moreover, SSL support and a built-in SD memory card slot add to the reliability and security of your monitored video. This IP Camera also conforms to the ONVIF Profile S standard ensuring compatibility with other ONVIF-compliant 3rd party products.

The VB-H41 camera is engineered with a new structural design for increased durability with improved bearings and a flexible-cable assembly.
If you own a Canon wired ip cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002:
Camera
Image Sensor 1/3" type CMOS (primary color filter)
Number of Effective Pixels Approximately 2.1 million pixels
Scanning Method Progressive
Lens 20x optical (12x digital) zoom lens with auto focus
Focal Length Wide x Tele: 4.7 to 94 mm
F Number F1.6 (wide) to F3.5 (tele)
Viewing Angle Horizontal: 60.4° (wide) to 3.2° (tele)
Vertical: 35.1° (wide) to 1.8° (tele)
Day/Night Switching Auto / manual
Minimum Subject Illumination Day Mode (Color):
0.4 lux: F1.6, shutter speed 1/30 sec, when Smart Shade Control is off, 50 IRE
0.03 lux: F1.6, shutter speed 1/2 sec, when Smart Shade Control is off, 50 IRE
0.01 lux: F1.6, shutter speed 1/2 sec, when Smart Shade Control is on, 50 IRE
Night Mode (Monochrome):
0.02 lux: F1.6, shutter speed 1/30 sec, when Smart Shade Control is off, 50 IRE
0.002 lux: F1.6, shutter speed 1/2 sec, when Smart Shade Control is off, 50 IRE
0.001 lux: F1.6, shutter speed 1/2 sec, when Smart Shade Control is on, 50 IRE
Focus One-shot AF /manual / fixed at infinity
Shooting Distance Range Day Mode: 12" to infinity (0.3 m to infinity) (Wide), 3.3' to infinity (1 m to infinity) (Tele)
Night Mode: 3.3' to infinity (1 m to infinity) (Wide), 4.9' to infinity (1.5 m to infinity) (Tele)
Shutter Speed 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/8,000, 1/16,000 sec
Exposure Auto/ auto (flickerless) / auto (shutter-priority AE) / manual (shutter speed, aperture, gain)
White Balance Auto/ light source (daylight fluorescent / white fluorescent / warm fluorescent / mercury lamp / sodium lamp / halogen lamp) / lock (one-shot WB) / manual
Metering Modes Center-weighted / average / spot
Exposure Compensation 9 levels
Smart Shade Control 7 levels (increases the brightness of shaded subjects in a video)
AGC (Automatic Gain Control) 5 levels
Image Stabilizer 2 levels (digital)
Pan Range 340° (±170°)
Tilt Range 100° (ceiling-mounted position: -90 to 10°) when the horizontal direction of the camera is 0°
Moving Speed Pan: Maximum 150°/sec,
Tilt: Maximum 150°/sec
Server
Video Compression Format M-JPEG & H.264
Video Resolution M-JPEG: 1920 x 1080, 960 x 540, 480 x 270, 320 x 240
H.264: 1920 x 1080, 960 x 540, 480 x 270
Video Quality M-JPEG, H.264: 5 levels
Frame Rate M-JPEG: 0.1 to 30 fps H.264: 1/2/3/5/6/10/15/30 fps
Maximum Frame Rate 1920 x 1080: 30 fps
I-Frame Interval 0.5 / 1 / 1.5 / 2 / 3 / 4 / 5 sec
Simultaneous Client Access Maximum 30 clients + 1 admin client

H.264: maximum 10 clients

Camera Control Administrator, authorized user, guest user (level of control varies depending on user) Maximum 50 user names and passwords registered for authorized users.
Access Control User authority (user name and password)
Host access restrictions (IPv4, IPv6)
Encrypted Communications SSL/TLS, IPsec (auto key exchange / manual)
Protocols IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, WV-HTTP (Canon proprietary), ONVIF
IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), ICMPv6, POP3, NTP, SMTP authentication, WV-HTTP (Canon proprietary), ONVIF
Audio Compression Method G.711 µ-law (64 Kbps)
Audio Communication Full-duplex (2-way) - echo cancellation function compliant Sound transfer protocol by Canon
Preset Maximum 20 positions (digital) (Preset Tour capable)
Intelligent Function Video Detection Types: Moving object detection, abandoned object detection, removed object detection, camera tampering detection, and passing detection
Detection Settings: Maximum 15
Volume: Volume detection
Event Trigger Type External device input, intelligent function (video), intelligent function (volume), timer
Image Upload FTP/HTTP/SMTP (email)
Temporary Storage Memory in Camera: Maximum approximately 5 MB
Frame Rate: Maximum 10 fps
Event Notification HTTP/SMTP (email)
IP Auto
On-Screen Display Available
Daylight savings Available
Interface
Network Terminal 1x LAN (RJ45, 100Base-TX) (auto / full-duplex / half-duplex)
Audio Input Terminals 1x mini-jack connector (mono), line-in or mic-in
Audio Output Terminals 1x mini-jack connector (mono), line-out
External Device I/O Terminals 2x input, 2x output
Memory Card SD, SDHC, SDXC memory card compatible
Frame Rate: Maximum 1 fps
Operating Environment
Temperature 14 to 122° F (-10 to 50° C)
Humidity 5 to 85% (without condensation)
Power Supply
PoE PoE power supply via LAN Connector (IEEE802.3af compliant)
External Power 24 VAC / 12 VDC
Power Consumption PoE: 9.2 W maximum (approximately)
AC Adapter PA-V17: 10.7 W maximum (approximately)
DC: 8.6 W maximum (approximately)
AC: 8.8 W maximum (approximately)
Mechanical
Dimensions (Diam. x H) 5.20 x 6.10" (132 x 155 mm)
Weight 2.51 lb (1.14 kg)
Packaging Info
Package Weight 3.55 lb
Box Dimensions (LxWxH) 9.0 x 8.4 x 7.5"
The user manual for the Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002 can be downloaded in .pdf format if it did not come with your new wired ip cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon wired ip camerass, where you can use our link to download the user manual for the Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002.

The user manual lists all of the functions of the Canon VB-H41 1080p HD Indoor IP PTZ Camera with 4.7 - 6812B002, all the basic and advanced features and tells you how to use the wired ip cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.
