User manual for the Canon XU-80W PTZ Camera 6143B002

The user manual for the Canon XU-80W PTZ Camera 6143B002 provides necessary instructions for the proper use of the product Professional Video - PTZ Cameras.

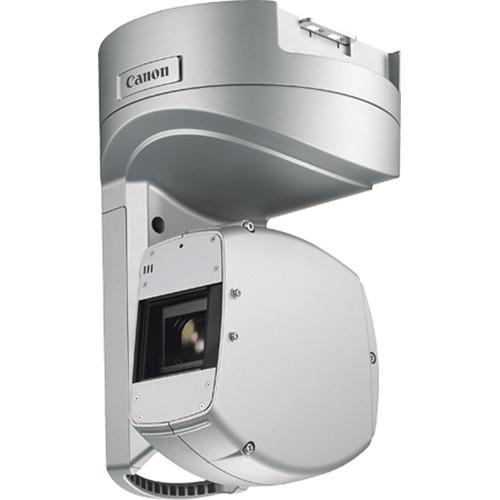

The Canon XU-80W PTZ Camera features remote controllable pan, tilt, and zoom, a 1/3" CMOS sensor with 2.1MP and a 20x zoom lens for capturing HD 1080i and 720p video. The XU-80W has a water and dust resistant enclosure with an IP55 rating. Moreover, a servo controlled ND filter and wiper unit make XU-80W suitable for permanent outdoor installations. The camera head pans and tilts very smoothly while simultaneously zooming, allowing for on-air movements similar to manually-operated cameras. Also, the XU-80 utilizes HD-SDI output, the standard in the broadcast market.

The XU-80W combines smooth, fast, and highly precise pan and tilt movements. In Normal Mode, operational movement has a noise rating of NC<30, making it suitable for quiet indoor environments. In High Speed Mode, the movements of the pan-tilt mechanism are accelerated by 50%, which is valuable in circumstances where higher speed is required. The XU-80W can be mounted upright or inverted (ceiling mount). In either position, the picture image will automatically flip when the tilt angle reaches 90°.

Users have the ability to select either the 1080i or 720p HD output to match their existing systems. Additionally, control can be toggled between RS-232 and RS-422, making the XU-80 extremely adaptable to new and existing multi-camera environments. Additional features include the slow-shutter function, which helps acquire extra brightness by using frame accumulation. The black & white mode without the IR cut filter will also support shooting in near-darkness.
If you own a Canon ptz cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Canon XU-80W PTZ Camera 6143B002 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Canon XU-80W PTZ Camera 6143B002:
Camera
Sensor 1/3" CMOS
Resolution 2.1 megapixels
Gain AUTO/MANU (0~+32dB)
White Balance AUTO/OUTDOOR/INDOOR/MANU/ATW
Shutter Speed 2 - 1/10,000 seconds
Digital Zoom 12x
AE Control AUTO/MANU/NIGHT/Shutter Priority/Aperture Priority
ICR ON/OFF
Video Format HD-SDI: 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
SD: NTSC/PAL (linked with the HD-SDI output)
Lens
Focal Length 4.7 - 94 mm
Aperture f/1.6 - 3.5
Zoom Ratio 20x
35mm Equivalent Focal Length 33.89 - 677.74 mm
Minimum Object Distance (M.O.D.) At telephoto end: 3.28' (1 m)
Angle of View In 1920×1080 (16:9): W 59.4 - T 3.0°
Focusing System AUTO/MANUAL/INF
ND Filter OFF, 1/32
Pan/Tilt
Range Pan: ±180°
Tilt: +220 ~ -40°
Speed Pan/Tilt (normal speed mode): 0.3 - 40° per second
Pan/Tilt (high speed mode): 0.3 - 60° per second
Preset Positions 128
Accuracy ±10' below (stationary)
Noise NC30 at 40° per second
NC45 at 60° per second
Note: when Wiper, ND Filter, and IRC Filter are not in operation
Interface
Video Output HD: BNC (HD-SDI)
SD: BNC (Composite Monitor)
Genlock Input: BNC (BB Sync/HD3value Sync)
Internal/External, auto switching
Control Interface RS-232 (x1, D-sub9)
RS-422 (x1, 6pin)
Control Protocol NU Protocol
Communication Speed 9,600 bps
Microphone Waterproof microphone (lower part of the camera/0dBm/600Ω unbalanced output, with limiter)
General
Waterproof/Dustproof Rating IP55
Wind Velocity Resistance Normal Operation: 49.2 feet per second
Operation Possible: 98.4 feet per second
Non Destruction: 196.8 feet per second
Picture Flip Flip ON/OFF
Operating Temperature 5 ~ 104° F (-15 ~ 40° C)
Operating Humidity 90% non-condensing
Power Source DC12V±10%
Power Consumption 20 W
Dimensions 8.54 x 12.24 x 8.54" (217 x 311 x 217 mm)
Note: without projections
Weight 14.55 lb (6.6 kg)
Note: without ND Filter and Wiper
Packaging Info
Package Weight 21.9 lb
Box Dimensions (LxWxH) 18.9 x 16.4 x 15.2"
The user manual for the Canon XU-80W PTZ Camera 6143B002 can be downloaded in .pdf format if it did not come with your new ptz cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Canon users keep a unique electronic library for Canon ptz camerass, where you can use our link to download the user manual for the Canon XU-80W PTZ Camera 6143B002.

The user manual lists all of the functions of the Canon XU-80W PTZ Camera 6143B002, all the basic and advanced features and tells you how to use the ptz cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Canon service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Canon XU-80W PTZ Camera 6143B002. User manuals are also available on the Canon website under Professional Video - PTZ Cameras.
