User manual Carlsbro CSD130 - Compact Electronic Drum Kit CSD130

Operating instructions and pdf manual for use - Carlsbro CSD130 - Compact Electronic Drum Kit CSD130 User manual, User manual Carlsbro CSD130 - Compact Electronic Drum Kit CSD130, Carlsbro, CSD130, Compact, Electronic, Drum, Kit, CSD130,


User manual for Carlsbro CSD130 - Compact Electronic Drum Kit CSD130

Carlsbro CSD130 - Compact Electronic Drum Kit CSD130
  • Manufacturer: Carlsbro
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Electronic Drums
  • Safety instructions
  • Startup and operation of the electronic drums
  • Tips for setting up your Carlsbro
  • Settings and expert assistance
  • Contact Carlsbro service
  • Troubleshooting
  • Warranty information
  • Price: 329 USD
We recommend checking out our discussion threads on the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130, which address similar problems with connecting and setting up Electronic Drums Carlsbro.



User manual for the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130

The user manual for the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130 provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Electronic Drums.

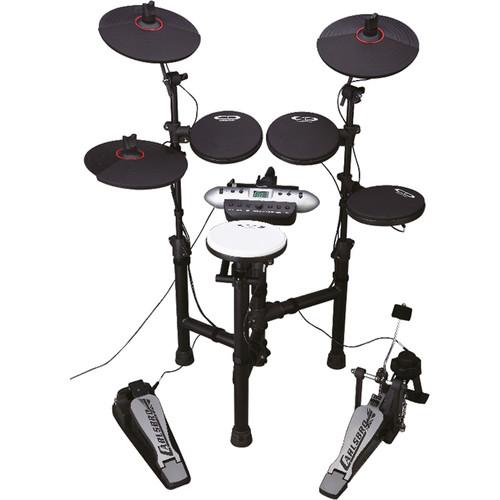

The CSD130 from Carlsbro is a compact 8-piece electronic drum kit featuring the Commander 150 sound module with 250 high-quality percussion voices, 20 preset kits, 10 user-defined kits, and 20 demo songs. The kit contains a bass drum pad and kick pedal, a dual-zone snare pad, three single-zone tom pads, a hi-hat controller pedal, and three single-zone cymbals for hi-hat, ride, and crash.

The sound module features an auxiliary input, stereo line output, and a headphone output. The module offers MIDI in and out via 5-pin DIN connectors as well as USB MIDI. Adjustable sensitivity, crosstalk, and trigger curve settings are provided to customize the module to any player's style. Connections between the drum pads and the module are made via a DB25 to 1/4" cable with each connector clearly labeled.

The CSD130 is highly portable with an ultra-compact 3-legged drum rack. The entire kit can fold down and fit into an optional backpack without removing any drum hardware or cabling.
If you own a Carlsbro electronic drums and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130:
Specifications
Tone Generator
Polyphony 32 voice maximum
Voices 250 high-quality percussion voices (drum, percussion, and SFX)
Drum Kits Preset Drum Kits: 20
User Defined Drum Kits: 10
Demo Songs 20 demo songs with a drum on/off function and on-board metronome
Recording and Playback Real time recording with demo songs, but cannot be saved
Tempo BPM: 35 to 280
Pad Control Adjustable pad sensitivity
Adjustable crosstalk
Multiple trigger curves
Effects Reverb
General
Connectors Drum Trigger Cable: 8-Channel DB25 to 1/4" / 6.35 mm
Audio Output: 2x 1/4" / 6.35 mm (L/mono, R)
Auxiliary Input: Stereo 1/8" / 3.5 mm
Headphones Output: Stereo 1/4" / 6.35 mm
MIDI MIDI In: 5-pin DIN
MIDI Out: 5-pin DIN
USB MIDI: USB B connection
Power Supply 9 VDC pin positive
Dimensions (L x W x H) Module: 9.7 x 6.1 x 5.0" / 24.6 x 15.4 x 12.7 cm
Bass Drum Pad: 2.0" / 5.1 cm
Snare Pad: 7.5" / 19.1 cm
Tom Pads: 7.5" / 19.1 cm
Cymbal Pads: 10.0" / 25.4 cm
Weight Module: 1.1 lb / 0.5 kg
Packaging Info
Package Weight 38.6 lb
Box Dimensions (LxWxH) 25.75 x 24.0 x 11.75"
The user manual for the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130 can be downloaded in .pdf format if it did not come with your new electronic drums, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Carlsbro users keep a unique electronic library for Carlsbro electronic drumss, where you can use our link to download the user manual for the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130.

The user manual lists all of the functions of the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130, all the basic and advanced features and tells you how to use the electronic drums. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Carlsbro service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130. User manuals are also available on the Carlsbro website under Pro Audio - Musical Instruments - Electronic Drums.



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Carlsbro CSD130 - Compact Electronic Drum Kit CSD130

Post new comment to Carlsbro CSD130 - Compact Electronic Drum Kit CSD130

Subject: Pad sensitivity
Date: 29.12.2022 14:14:18Author: Conrad
How is it that i can adjust the pad sensitivity for my crash pad on the carlsbro csd130
Reply

Subject: Manual
Date: 05.05.2022 15:38:56Author: Jorge Alberto Villa
Necesito obrener manual de Calsbro CSD 130 en castellano
Reply

Subject: Set up button
Date: 01.04.2022 05:15:08Author: Arthur
Did you ever find an answer for this? Also can’t find the setup button
Reply

Subject: Missing manual
Date: 25.03.2022 04:53:32Author: Adam Bradburn
Can I plz get a copy of the manual
Reply

Subject: CSD130 Manual
Date: 24.12.2021 22:06:30Author: Stephen Winder
Please can you email me the manual? Thanks
Reply

Subject: User manual for csd130 setup
Date: 16.11.2021 12:23:04Author: Joshua park
Could you plz send the manual via email?
Reply

Subject: Carlsbro CSD130W User Guide
Date: 11.04.2020 18:23:26Author: Chandramohan
Please can you share the user guide for Carlsbro CSD130
Reply

Subject: Need the manual
Date: 19.01.2018 08:12:56Author: Samuel Vijaykumar M
Hi Would need the manual
Reply

Subject: Required Carlsbro CSD130 user Manual
Date: 01.01.2018 15:15:52Author: Edward Samuel
Please provide the user manual for Carlsbro CSD130 durm kit. need it urgently
Reply

Subject: where is the "set up" button
Date: 03.12.2017 22:20:15Author: phil
Trying to reset a csd130 and the book says use the setup button but doesn't show it anywhere?
Reply

Subject: Hi-hat pedal replacement and pad tightener
Date: 06.03.2017 01:08:58Author: Tim Teubert
Hello. I am in need of hi-hat pedal replacement and hr tool used to tighten the pads. What is the process to replace or secure these items?
Reply

Subject: Bill Ballad
Date: 25.12.2016 16:42:51Author: Bill Ballad
We have one with out the manual need instructions for setup
Reply
