User manual Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK

Operating instructions and pdf manual for use - Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK User manual, User manual Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK, Casio, PX-160, Privia, 88-Key, Digital, Piano, Black, PX-1


User manual for Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK

Overall rating 3.0
Overall Rating: 3.0

60% of respondents would recommend this to a friend.

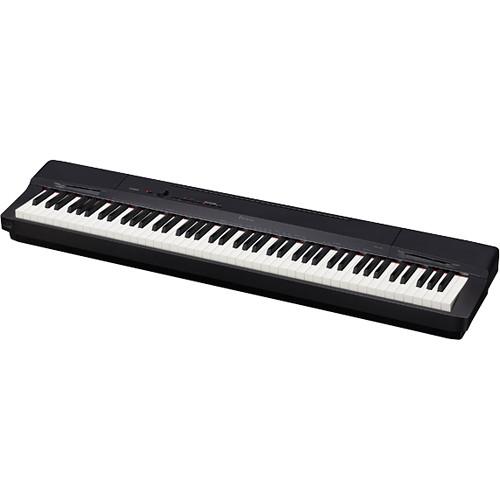

Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK
  • Manufacturer: Casio
  • Basic description and contents of package
  • Product classification: Pro Audio - Musical Instruments - Digital Pianos
  • Safety instructions
  • Startup and operation of the digital pianos
  • Tips for setting up your Casio
  • Settings and expert assistance
  • Contact Casio service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK
Click to enlarge image

We recommend checking out our discussion threads on the Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK, which address similar problems with connecting and setting up Digital Pianos Casio.



User manual for the Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK

The user manual for the Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK provides necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Digital Pianos.

The black PX-160 Privia 88-Key Digital Piano from Casio features the new AiR sound source, which provides multidimensional sound production and a natural reproduction of a grand piano's playing and sound properties. The Tri-sensor scaled hammer action includes real hammers that have a scaled weight, which when combined with the Damper Resonance simulator, give the user a closer feel to an acoustic piano. The 88-note keyboard is made from simulated ebony and ivory textured keys, and features three sensors per key to capture the dynamics of a performance, while the variable hammer mimics the timing that occurs naturally inside of an acoustic grand, relative to the attack velocity.

The PX-160 offers 128-note polyphony and includes 18 built-in instrument tones including pianos, electric pianos, strings, organs, a vibraphone and a bass. The keyboard offers a duet mode, which splits the keyboard into two equal ranges so a student and teacher may play together. Additional functions include splits, layers, and 17 preset scales. The PX-160 also has 60 built-in songs that may be used for practicing or for your listening pleasure. The song recorder allows you to record a song via MIDI with up to 2 tracks.

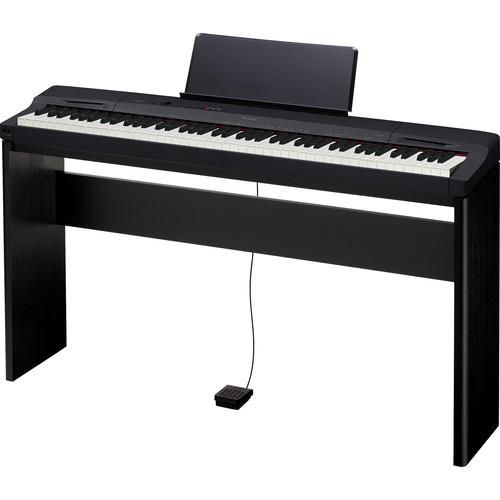

Class compliant USB connectivity also allows the PX-160 to be used with Mac or Windows and function as a MIDI controller. The optional SC-67 stand puts the PX-160 at the proper height, while the optional SP-33 pedal system provides the same 3-pedal functionality as a grand piano. The PX-160 ships with an AC adapter, sustain pedal, music book, and music stand.
If you own a Casio digital pianos and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK:
Specifications
    Keyboard Number of Keys: 88
    Key Action: Tri-sensor scaled hammer action keyboard II
    Key Surface Finish: Simulated ebony and ivory keys
    Touch Response: 3 sensitivity levels, off
    Polyphony 128 maximum
    Tones 18 built-in tones
    Grand Piano (Concert, Modern, Classic, Mellow, Bright), Elec Piano 1, Elec Piano 2, FM E. Piano, 60's E. Piano, Harpsichord, Vibraphone, Strings 1, Strings 2, Pipe Organ, Jazz Organ, Elec Organ 1, Elec Organ 2, Bass (Lower)
    Sound Engine Sound Source: Multi-Dimensional Morphing AiR
    Stereo Sampled Piano Tones: Yes
    Hammer Response: Yes
    Damper Noise: Yes
    Damper Resonance: Yes
    Split/Layer Yes/Yes
    Digital Effects Hall Simulator/Reverb: 4 (reverb)
    Chorus: 4
    Brilliance: Yes (-3 to +3)
    DSP: Yes (preset for some tones)
    Auto Accompaniment Built-In Songs: 60
    Song Expansion: 10 Songs (maximum), up to approximately 90 KB/Song
    Lesson/Guide Lesson Function: Part on/off
    Lesson Part Select: Right hand, left hand
    Recorder MIDI Recorder: 2 tracks, 1 song
    Recorder Capacity: Approximately 5,000 notes total
    Performance Modes Duet Mode: Yes (duet pan on/off)
    Transpose Octave Shift: ±2 octaves
    Transpose: 2 octaves (-12 to +12 semitones)
    Tuning Control: A4 = 415.5Hz ~ 440.0Hz ~ 465.9Hz
    Scale Scale Function: 17 preset temperaments
    Metronome 0, 2, 3, 4, 5, and 6 beats
    Tempo Range: 20 to 255
    Pedal Control Included: SP-3
    Optional: SP-20, SP-33 (damper, soft, and sostenuto)
    Half-Damper Pedal Operation: Yes (with optional SP-33 3-pedal unit)
    Operation Lock Yes
    MIDI Yes, via USB
    Connectors Phones: 2 x 1/8" / 3.5 mm stereo-mini TRS jacks
    Pedal: 1 (Damper)
    Connector for 3-Pedal Unit: Yes
    Line Out (L/Mono / R): 2 x 1/4" / 6.35 mm mono TS jacks
    USB Port: Yes
    Amplifiers and Speakers Speakers: 2 x 4.7" / 11.9 cm
    Amplifier: 8 W + 8 W
    Dimensions (W x D x H) Keyboard: 52.0 x 11.5 x 5.6" / 132.1 x 29.2 x 14.2 cm
    Keyboard with Optional Stand: 52.0 x 11.5 x 30.2" / 132.1 x 29.2 x 76.7 cm
    Weight Keyboard: 25.5 lb / 11.6 kg
    Keyboard with Optional Stand: 46.5 lb / 21.1 kg
    Packaging Info
    Package Weight 33.45 lb
    Box Dimensions (LxWxH) 57.5 x 14.5 x 8.0"
    The user manual for the Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK can be downloaded in .pdf format if it did not come with your new digital pianos, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Casio users keep a unique electronic library for Casio digital pianoss, where you can use our link to download the user manual for the Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK.

    The user manual lists all of the functions of the Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK, all the basic and advanced features and tells you how to use the digital pianos. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Casio service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Casio PX-160 Privia 88-Key Digital Piano (Black) PX-160BK. User manuals are also available on the Casio website under Pro Audio - Musical Instruments - Digital Pianos.
