User manual Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X

Operating instructions and pdf manual for use - Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X User manual, User manual Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X, Cerwin-Vega, CVA-121, 21, Active, Powered, Subwoofer,


User manual for Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X

Cerwin-Vega CVA-121 - 21
  • Manufacturer: Cerwin-Vega
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - PA Speakers
  • Safety instructions
  • Startup and operation of the pa speakers
  • Tips for setting up your Cerwin-Vega
  • Settings and expert assistance
  • Contact Cerwin-Vega service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X, which address similar problems with connecting and setting up PA Speakers Cerwin-Vega.



User manual for the Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X

The user manual for the Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X provides necessary instructions for the proper use of the product Pro Audio - Live Sound - PA Speakers.

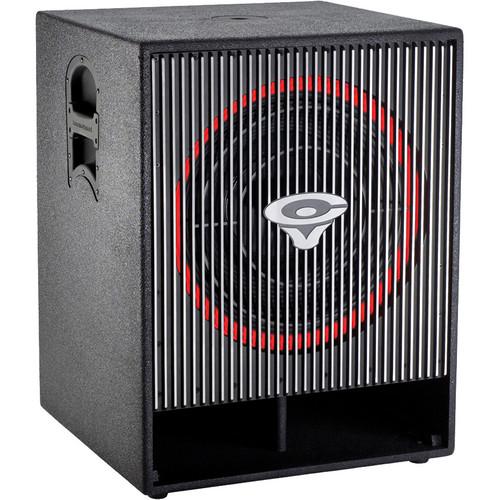

The Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer is designed for low frequency live sound reinforcement applications. The subwoofer uses a custom 21" woofer using Cerwin Vega's Stroker three spider technology for improved cone excursion and voice-coil efficiency. The technology provides a pair of double inverted spiders to control linearity and maintain a smooth excursion, with a third spider to provide a third plane of support. The third spider also helps keep the surround from pulling the cone.

The subwoofer features a built-in amplifier with 1,200W RMS continuous output and 2,400W peak output. The amplifier includes an on-board parametric equalizer that allows you to dial in the appropriate sub response for each venue. You can bump frequencies that need more emphasis or cut frequencies that occur from room corner loading or wall boundary conditions. The unit also includes a 4-position high pass filter and a sweepable low pass filter for selecting the appropriate crossover points. A cast aluminum grille protects the woofer and functions as a heat-sink to minimize power compression and optimize driver performance.

The subwoofer is constructed of solid 18mm hardwood in the footprint of an 18" subwoofer box. It features XLR and 1/4" TRS connectors, master/slave output connectors for daisy-chaining multiple CVA subwoofers using a single signal. A top-mounted 35mm pole socket accommodates a satellite speaker for full range performance and removable casters make it easier to transport the subwoofer from gig to gig.
If you own a Cerwin-Vega pa speakers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Cerwin-Vega CVA-121 - 21Download user manual for Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X
(PDF file, 2.24 MB)
Additional parameters of the Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X:
Subwoofer
System Type 21.0" (53.3 cm) active subwoofer
Power Capacity Continuous RMS: 1,200 W
Peak: 2,400 W
Frequency Response 35 to 135 Hz (±3 dB)
Frequency Range 32 to 135 Hz (-10 dB)
SPL 135 dB at 2,400 W
Sensitivity 101 dB (1 W / 1 m)
Driver SW21A, 21.0" (53.3 cm) with Stroker technology
Voice Coil 4.0" (10.2 cm)
Construction 18 mm hardwood
Power Rating 1,200 W RMS / 2,400 W peak
Input Connectors 2 x XLR/F balanced
2 x 1/4" TRS
Output Connectors 2 x XLR/M
2 x 1/4" TRS
XLR/M Slave
Crossover Control Variable LPF: 65 to 130 Hz
HPF: 25 Hz
HPF: 65, 85, 130 Hz
Variable LPF: 65, 130 Hz
Polarity Switch: 0 - 180
Parametric Equalizer Gain, Frequency, Q
Power Consumption (Idle) No more than 20 W
Dimensions (H x W x D) 31.75 x 23.50 x 23.50" (806.45 x 596.90 x 596.90 mm)
Weight 180.0 lb (81.6 kg)
The user manual for the Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X can be downloaded in .pdf format if it did not come with your new pa speakers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cerwin-Vega users keep a unique electronic library for Cerwin-Vega pa speakerss, where you can use our link to download the user manual for the Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X.

The user manual lists all of the functions of the Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X, all the basic and advanced features and tells you how to use the pa speakers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cerwin-Vega service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cerwin-Vega CVA-121 - 21" Active Powered Subwoofer CVA-121X. User manuals are also available on the Cerwin-Vega website under Pro Audio - Live Sound - PA Speakers.
