User manual for the Cerwin-Vega XD8s - 8" Subwoofer with Built-In XD-8S
The user manual for the Cerwin-Vega XD8s - 8" Subwoofer with Built-In XD-8S provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

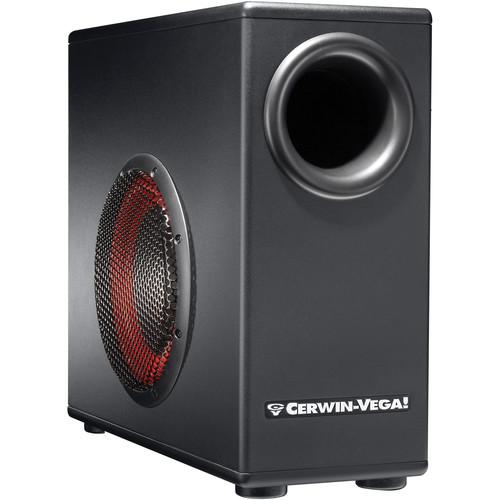

The Cerwin Vega XD8s - 8" Subwoofer with Built-In Amplifier is designed for augmenting the low frequency response of your system while listening to music, gaming on a computer, and producing media. The subwoofer utilizes a built-in 80W RMS plate amplifier with adjustable crossover to power an 8" high excursion side mounted subwoofer with a custom front firing port to deliver a frequency response of 35 to 255 Hz and a frequency range of 32 to 390 Hz.
The back of the subwoofer features a power switch, fuse, and adjustable control knobs for the volume level and the crossover point (including a bypass setting) for pairing with full range systems. A polarity switch can be engaged for proper phase alignment with the rest of the speakers in your system. For I/O the subwoofer features left and right RCA input connectors for unbalanced signals as well as left and right 1/4" TRS connectors for balanced signals. It also includes loop-thru outputs that bypass the crossover filter for sending a full range signal to the full range speakers in your system. The back panel also includes a serial port for connecting the included remote control.
The handheld remote control unit includes an illuminated master volume control for both the subwoofer and speakers connected to the unit's output. A quick access SUB MUTE button allows you to compare the mix with and without the enhanced low end. The remote also includes a front mounted 1/4" stereo-mini (male to male) port for connecting mobile devises such as a phone or media player into the speaker system.
|
If you own a Cerwin-Vega studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cerwin-Vega XD8s - 8" Subwoofer with Built-In XD-8S in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Cerwin-Vega XD8s - 8" Subwoofer with Built-In XD-8S:
| Configuration | Subwoofer with built-in amplifier | | Low Frequency Driver | 8" high excursion subwoofer | | Frequency Response | 35 to 255 Hz | | Frequency Range | 32 to 390 Hz | | Amplifier Power | 80 W RMS | | Port | Custom tuned front porting | | Controls | Selectable crossover (80 Hz, 100 Hz, 120 Hz, Bypass)
Rotary volume control
Switchable polarity 0 to 180° | | Connections | RCA input pair for unbalanced signals
RCA output pair for unbalanced signals
1/4" TRS input pair for balanced signals
1/4" TRS output pair for balanced signals | | Dimensions | 17.32 x 7.09 x 14.96" (440 x 175 x 380 mm) | | Weight | 18.5 lb (8.4 kg) | | Package Weight | 24.5 lb | | Box Dimensions (LxWxH) | 20.0 x 19.0 x 9.75" | |
The user manual for the Cerwin-Vega XD8s - 8" Subwoofer with Built-In XD-8S can be downloaded in .pdf
format if it did not come with your new studio monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Cerwin-Vega users keep a unique electronic library
for Cerwin-Vega studio monitorss,
where you can use our link to download the user manual for the Cerwin-Vega XD8s - 8" Subwoofer with Built-In XD-8S.
The user manual lists all of the functions of the Cerwin-Vega XD8s - 8" Subwoofer with Built-In XD-8S,
all the basic and advanced features and tells you how to use the studio monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Cerwin-Vega service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Cerwin-Vega XD8s - 8" Subwoofer with Built-In XD-8S. User manuals are also
available on the Cerwin-Vega website under Pro Audio - Recording - Studio Monitors.
