User manual for the Chrosziel MagNum 300 3-Channel Wireless Lens C-MN-300KIT-H

The user manual for the Chrosziel MagNum 300 3-Channel Wireless Lens C-MN-300KIT-H provides necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Wireless Lens Control Systems.

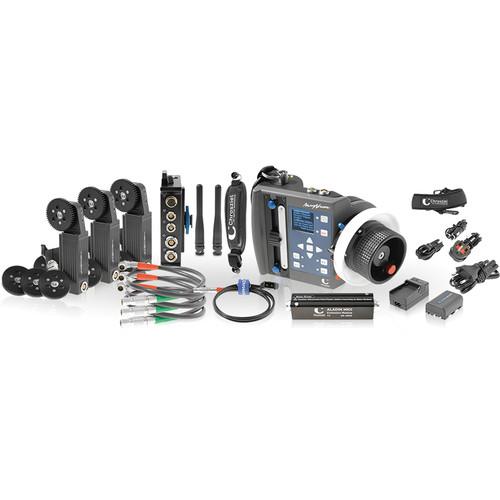

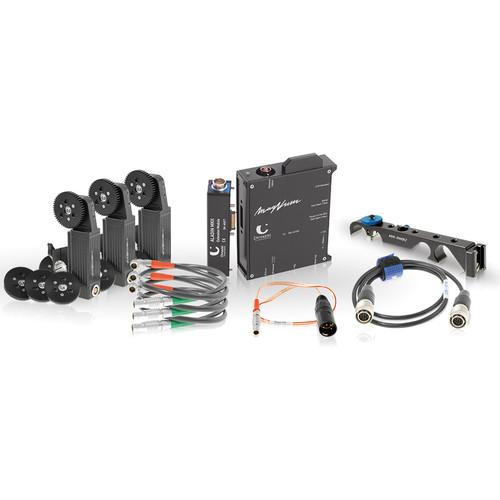

Chrosziel's MagNum 300 is a 3-channel lens control system that can precisely actuate up to three digital motors. The MagNum 300 is similar to the MagNum 200 system, but includes the MagNum extension module which enables control of a third motor. This MagNum kit is comprised of a wireless handheld controller with a battery and a charger, a 2-channel receiver with a third channel extension, three digital motors with cables, a d-tap power cable, and a protective carrying hard-case. See below for more information on the items included in this system.
If you own a Chrosziel wireless lens control systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Chrosziel MagNum 300 3-Channel Wireless Lens C-MN-300KIT-H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Chrosziel MagNum 300 3-Channel Wireless Lens C-MN-300KIT-H:
Specifications
    • MagNum 200 2-Channel Wireless Lens Control Hand Unit
      Channels 2 (focus and iris)
      Battery Sony NP-FM50 type
      Antennas 1 x Integrated 2.4 GHz
      1 x BNC 430 MHz
      Weight 1.27 lb / 577 kg
    • MagNum 200 2-Channel Wireless Lens Control Receiver
      Channels 2 (focus and iris), expandable to 3rd zoom channel
      Ports 1 x 12-pin Hirose for ENG demands
      1 x 9-pin LEMO serial port for camera start/stop control
      1 x 5-pin LEMO 10-30V power input and camera start/stop control
      2 x 7-pin LEMO digital motor interface 1 x BNC for 430MHz antenna
      Antennas 1 x Integrated 2.4 GHz
      1 x BNC 430 MHz
      Weight 0.6 lb / 262 g
    • MN-BAT MagNum Remote Control Battery
      Chemistry Lithium-ion
      Compatibility Sony NP-FM50/55
      Voltage 7.2 VDC
      Weight 2.5 oz (70 g)
      Packaging Info
      Box Dimensions (LxWxH) 2.3 x 1.8 x 0.4"
    • MN-CH MagNum Battery Charger
      Compatibility Type FM50/55 rechargeable batteries
      Power Input 100 - 240 VAC, 50/60 Hz
      Power Output 12 VDC
      Weight 17.6 oz (0.5 kg)
    • 3 x
      Digital Heden Motor with Digital Encoder
      Weight 0.82 lb (0.37 kg)
    • 3 x
      7-Pin LEMO Digital Motor Cable for AL2/Magnum (23")
      Connector 1 7-pin LEMO
      Connector 2 Angled 7-pin LEMO
      Length 23" / 60cm
    • AB D-Tap to MagNum Lemo 5-Pin 12V Power Cable
      Compatibility MagNum, Aladin MRKII/AL2-INTF
      Connector 1 AB D-tap
      Connector 2 Lemo 0B 5-pin
      Length 23.6" (60 cm)
      Weight 2.8 oz (80 g)
    • MN-RMB1 Mounting Bracket for MagNum Receiver
      Compatibility MagNum MN-100R and MN-200R receivers
      Weight 1.4 oz (40 g)
    • MagNum LCS Remote Control Case
      Dimensions (W x H x D) 15.4 x 12.2 x 6.7" (39 x 31 x 17 cm)
      Weight 5.2 lb (2.35 kg)
