User manual Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G

Operating instructions and pdf manual for use - Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G User manual, User manual Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G, Cinedeck, RX3G/AES, Multi-Format, Multi-Channel, 10000-RX3G,


User manual for Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G

Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G
  • Manufacturer: Cinedeck
  • Basic description and contents of package
  • Product classification: Professional Video - Recorders & Duplication - Solid State/HDD Recorders
  • Safety instructions
  • Startup and operation of the solid state/hdd recorders
  • Tips for setting up your Cinedeck
  • Settings and expert assistance
  • Contact Cinedeck service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G, which address similar problems with connecting and setting up Solid State/HDD Recorders Cinedeck.



User manual for the Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G

The user manual for the Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G provides necessary instructions for the proper use of the product Professional Video - Recorders & Duplication - Solid State/HDD Recorders.

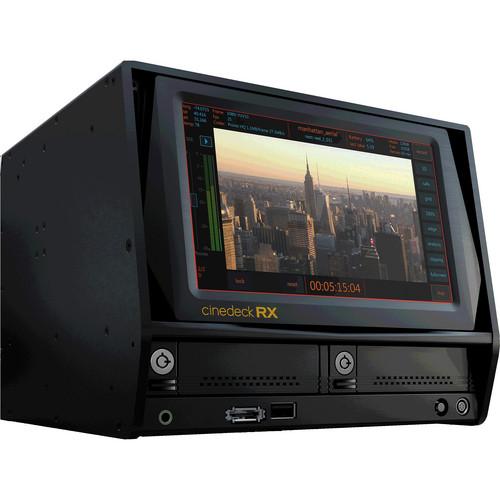

The Cinedeck RX3G/AES Multi-Format Multi-Channel Recorder, Monitor, and Playback System is designed for digital, file-based, and multi-camera productions. With this system you can free up your Avid workstations from transcoding so that you can edit fast without wasting time with ingest and transcoding. Record directly to an Avid ISIS and multiple editors can start editing immediately on a Media Composer.
If you own a Cinedeck solid state/hdd recorders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G:
Record Disc Formats Internal SSD, eSATA, USB, Network
Analysis Range 7" Touch Display, Waveform, Vectorscope, Histogram, 1:1 Pixel Zoom, Preview LUT, Clipping
Compatible SD-HD/SDI, 3G, Dual Link, HDMI, Component, Composite
I/O and Connectors
Front Panel 4 x 2.5" Removable SSD Drive
Configurable 4-pin GPI/O
2 x USB 3
USB 2
eSATA
Stereo mini headphone jack
Mini mic in
Mini line in
Rear Panel Redundant power
2 x eSATA
2 x USB3
4 x USB2
HDMI
2 x RS422 in (1 per channel)
2 x RS232
Balanced audio out (Left/Right)
8 x AES Audio
RS422 out
2 x Video Input & Output
Auxiliary Video Out
Bi / Tri -Level Sync
2 x GigE Lan (can be ganged together)
Master Clock / IRIG option
Signal 2 x Single-link HDSDI input
2 x Single-link HDSDI outputs
Dual-link (1.5G) HDSDI input
Dual-link (1.5G) HDSDI output
2 x 3G HDSDI input
2 x 3G HDSDI output
Full duplex video I/O
Character overlay
High frame rate, 50/60p
Stereoscopic 3D
4:2:2 and 4:4:4 3D support
Dual GigE LAN
8 x AES audio
Embedded SDI audio: 16 per video input
Balanced 2 channel audio I/O: 2 channel out only
Analog color black or tri-level sync
Connectivity Interconnectivity:
4 x Removable 2.5" SSD Drives
1 x DVI
1 x HDMI
6 x USB2
2 x USB3
1 x eSATA
2 x Gig E LAN
Headphone jack (for monitoring)
LTC Timecode
IRIG Timecode
Master Clock (jam and act as master clock) option available
Resolutions HD - 1080i, 1080p, 1080PsF, 720p
2K
4K RAW
SD - PAL/NTSC, 480
Image Image Analysis Tools:
WaveForm
Vectorscope
Histogram
Focus tools
Clipping
Preview LUTs
Functionality Realtime Upconvert SD to HD
Realtime Downconvert HD to SD
Realtime Crossconvert
Redundant file record
Rollover record
Chunk record
Circular (FIFO) record
Control Remote TCP/IP deck control application
3rd party USB jog / shuttle device support
RS 422
The user manual for the Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G can be downloaded in .pdf format if it did not come with your new solid state/hdd recorders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cinedeck users keep a unique electronic library for Cinedeck solid state/hdd recorderss, where you can use our link to download the user manual for the Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G.

The user manual lists all of the functions of the Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G, all the basic and advanced features and tells you how to use the solid state/hdd recorders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cinedeck service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cinedeck RX3G/AES Multi-Format Multi-Channel 10000-RX3G. User manuals are also available on the Cinedeck website under Professional Video - Recorders & Duplication - Solid State/HDD Recorders.
