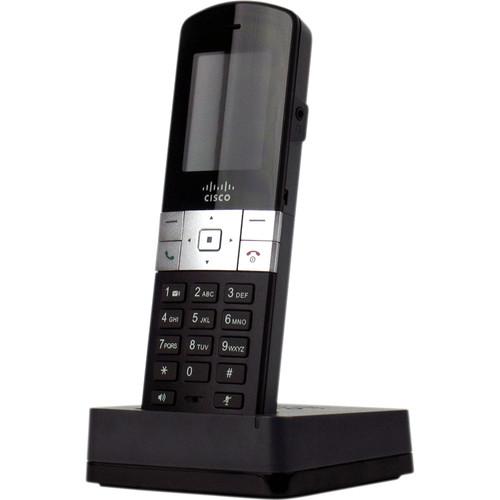

Designed to be used exclusively with the Cisco SPA232D Multi-Line DECT ATA base station, the SPA302D Multi-Line DECT Handset from Cisco is a cordless solution to VoIP calling that is capable of handling multiple numbers or lines. This handset features DECT (Digital Enhanced Cordless Telecommunications Technology) which uses the power of TDMA cellular technology to transmit a stronger signal to a larger number of users. Along with DECT technology, you benefit from wideband audio support for high-definition voice quality.
With a variety of calling features including multi-call operation, call transfer, conferencing, hold, new call, mute, speakerphone, voicemail, intercom, one touch dial, and one touch dial out from call-history logs you can manage your calls with ease. Additionally, the 176 x 220 pixel, 2-inch display located above the keypad allows you to utilize the various functions such as date and time, speed dials, call history, phone book entries, and more. Whether using just one SPA302D or managing of multiple handsets, the software for each unit can be upgraded over-the-air saving both time and money.
If you own a Cisco telephones and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cisco SPA302D Multi-Line DECT Handset SPA302D-G1 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco SPA302D Multi-Line DECT Handset SPA302D-G1:
Specifications
Physical Specifications
Off-hook button On-hook/Power off button Two soft-key buttons Dedicated speakerphone and mute buttons Four-way navigation keypad Headset jack: 2.5 mm Removable belt clip Charging cradle stand
Registrations
Five handset registrations on a Cisco SPA232D (DECT Base Station) Four simultaneous active calls 11 individual SIP accounts (10 DECT and 1 FXS) Page/Registration button Interfaces: FXS, FXO, LAN, and WAN (10/100BASE-T) T.38 Fax Codecs: G.722, G.711a-law and mu-law, G.729b and ab, and G.726 SIPv2 (RFCs 3261, 3262, 3263, and 3264) Dual-Tone Multi Frequency (DTMF): In-band and out-of-band (RFC 2833) (SIP INFO) Caller ID generation (name and number): Bellcore, DTMF, and ETSI
Localization
Handset display language support for English, French, German, Italian, Spanish, and Portuguese
Regulatory Compliance
FCC (Part 15 Class B), CE, ICES-003, A-Tick certification, Restriction of Hazardous Substances (RoHS), and UL
Power Supply
DC input voltage: 5 DC at 1.0 A maximum Power consumption: 5 W Switching type (100-240 V) automatic Power adapter: 100-240 V, 50-60 Hz (26-34 VA) AC input, 5.9 ft / 1.8 m cord
Battery
2 Ni-MH 800-mAh (1.2 V) AAA batteries (rechargeable) 10 hours of talk time 120 hours of standby time
Indicator Lights
Charging cradle power and charge
Operating Temperature
32 to 113°F / 0 to 45°C
Storage Temperature
-77 to 158°F / -25 to 70°C
Operating Humidity
10 to 90% non-condensing
Storage Humidity
10 to 90% non-condensing
Dimensions
2.0 x 5.8 x 1.0" / 5.0 x 15.0 x 2.5 cm
Weight
5 oz / 142 g
