User manual Cisco WAP551 High-Performance Wireless-N-Access Point

Operating instructions and pdf manual for use - Cisco WAP551 High-Performance Wireless-N-Access Point User manual, User manual Cisco WAP551 High-Performance Wireless-N-Access Point, Cisco, WAP551, High-Performance, Wireless-N-Access, Point


User manual for Cisco WAP551 High-Performance Wireless-N-Access Point

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

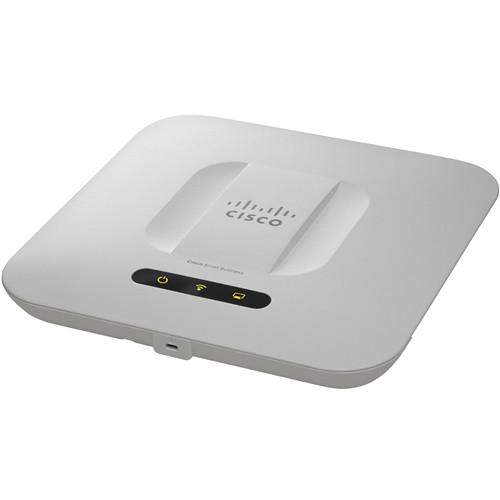

Cisco WAP551 High-Performance Wireless-N-Access Point
  • Manufacturer: Cisco
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Access Points
  • Safety instructions
  • Startup and operation of the wireless access points
  • Tips for setting up your Cisco
  • Settings and expert assistance
  • Contact Cisco service
  • Troubleshooting
  • Warranty information
  • Price: 200 USD
We recommend checking out our discussion threads on the Cisco WAP551 High-Performance Wireless-N-Access Point, which address similar problems with connecting and setting up Wireless Access Points Cisco.



User manual for the Cisco WAP551 High-Performance Wireless-N-Access Point

The user manual for the Cisco WAP551 High-Performance Wireless-N-Access Point provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

The WAP551 High-Performance Wireless-N-Access Point from Cisco is the perfect solution to extend your current network to areas currently out of reach. This access point features PoE connectivity eliminating the need to run additional power cords during installation.

Once installed you benefit from enhanced wireless security features including WPA2, 802.1X with RADIUS, and rogue access point detection to keep your network secure. With five internal antennas this access point is capable of reaching longer distances keeping more individuals connected while reducing the cost associated with adding additional access points. In addition to extended range, you can utilize the integrated bridge mode allowing you to wirelessly connect to a second Ethernet network.
If you own a Cisco wireless access points and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cisco WAP551 High-Performance Wireless-N-Access Point in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cisco WAP551 High-Performance Wireless-N-Access Point:
Specifications IEEE 802.11n
802.11g
802.11b
802.3af
802.3u
802.1X (security authentication)
802.1Q (VLAN)
802.1D (Spanning Tree)
802.11i (WPA2 security)
802.11e (wireless QoS)
IPv4 (RFC 791)
IPv6 (RFC 2460)
Ports LAN Gigabit Ethernet auto sensing
Cabling Type Category 5e or better
Antennas Internal antennas optimized for installation on a wall or ceiling
LED Indicators Power, WLAN, LAN
Operating System Linux
Physical Interface
Ports 10/100/1000 Ethernet, with support for 802.3af PoE
Buttons Reset button
LEDs Power, wireless, Ethernet
Network
VLAN Support Yes
Number of VLANs 1 management VLAN plus 16 VLANs for SSIDs
802.1X Supplicant Yes
SSID-to-VLAN Mapping Yes
Auto Channel Selection Yes
Spanning Tree Yes
Load Balancing Yes
IPv6 Yes
IPv6 host support
IPv6 RADIUS, syslog, Network Time Protocol (NTP)
Layer 2 Switching 802.1Q-based VLANs, 16 active VLANs plus 1 management VLAN
Security
WPA/WPA2 Yes, including enterprise authentication
Access Control Yes, management access control list (ACL) plus MAC ACL
Secure Management HTTPS
Wi-Fi Protected Setup Yes (soft WPS, no hardware push button)
SSID broadcast Yes
Rogue Access Point Detection Yes
Mounting Options
Mounting Mounting bracket included for easy ceiling or wall mounting
Security Lock Slot Kensington lock slot
Quality of Service (QoS)
Quality of Service (QoS) Wi-Fi Multimedia and Traffic Specification (WMM TSPEC)
Performance
Wireless Throughput Up to 450 Mb/s data rate (real-world throughput will vary)
Recommended User Support Up to 64 connective users, 30 active users per radio
Multiple-Access Point Management
Single Point Setup Yes
number of Access Points per Cluster 16
Active Client per Cluster 480
Configuration
Web User Interface Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)
Management
Management Protocols Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour
Remote Management Yes
Event Logging Local, remote syslog, email alerts
Network Diagnostics Logging and packet capture
Web firmware upgrade Firmware upgradable through web browser, imported/exported configuration file
Dynamic Host Configuration Protocol (DHCP) DHCP client
IPv6 Host Yes
HTTP Redirect Yes
Wireless
Frequency Selectable radio band (2.4 or 5 GHz)
Radio and Modulation Type Single radio
Orthogonal frequency division multiplexing (OFDM)
WLAN 802.11b/g/n
3x3 multiple-input multiple-output (MIMO) with 3 spatial streams
20 and 40 MHz channels
PHY data rate up to 450 Mb/s
802.11 dynamic frequency selection (DSF), EU version only
Wireless Isolation Wireless isolation between clients
External Antennas None
Internal Antennas 5 x internal dipole antennas
Antenna Gain In dBi 5 dBi each antenna
Wireless Distribution System (WDS) Yes
Fast Roaming Yes
Multiple SSIDs 16
Wireless VLAN Map Yes
WLAN security Yes
Wi-Fi Multimedia (WMM) Yes, with unscheduled automatic power save
Operating Modes
Access point Access point mode, WDS Bridging, Workgroup Bridge mode
Environmental
Power Options IEEE 802.3af Ethernet switch
Cisco SB-PWR-INJ-xx
Peak power:
● WAP551: 7.872 W
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 158°F / -20 to 70°C
Operating Humidity 10 to 85% non-condensing
Storage Humidity 5 to 90% non-condensing
System Memory 64 MB RAM
32 MB flash
Dimensions & Weight
Dimensions (WxHxD) 9.05 x 9.05 x 0.98" / 23.0 x 23.0 x 2.5 cm
Weight 1.41 lb / 0.64 kg
Packaging Info
Package Weight 2.45 lb
Box Dimensions (LxWxH) 11.5 x 10.9 x 3.0"
The user manual for the Cisco WAP551 High-Performance Wireless-N-Access Point can be downloaded in .pdf format if it did not come with your new wireless access points, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cisco users keep a unique electronic library for Cisco wireless access pointss, where you can use our link to download the user manual for the Cisco WAP551 High-Performance Wireless-N-Access Point.

The user manual lists all of the functions of the Cisco WAP551 High-Performance Wireless-N-Access Point, all the basic and advanced features and tells you how to use the wireless access points. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cisco service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Cisco WAP551 High-Performance Wireless-N-Access Point. User manuals are also available on the Cisco website under Computers & Solutions - Networking - Wireless Access Points.
