Cmple Premium IR Remote Extender/Repeater Kit 1183-N
  • Manufacturer: Cmple
  • Basic description and contents of package
  • Product classification: Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters
  • Safety instructions
  • Startup and operation of the video extenders & repeaters
  • Tips for setting up your Cmple
  • Settings and expert assistance
  • Contact Cmple service
  • Troubleshooting
  • Warranty information
  • Price: 50 USD
We recommend checking out our discussion threads on the Cmple Premium IR Remote Extender/Repeater Kit 1183-N, which address similar problems with connecting and setting up Video Extenders & Repeaters Cmple.



User manual for the Cmple Premium IR Remote Extender/Repeater Kit 1183-N

The user manual for the Cmple Premium IR Remote Extender/Repeater Kit 1183-N provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video Extenders & Repeaters.

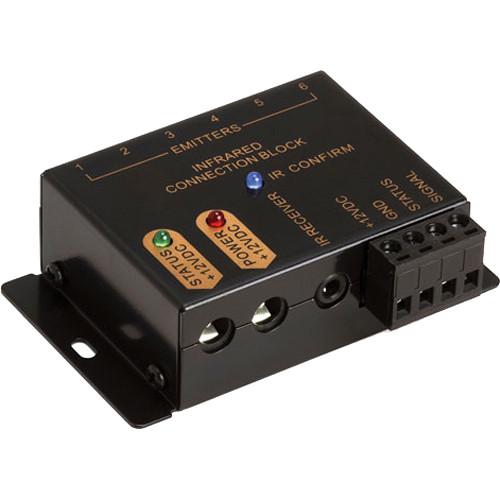

The Cmple Premium IR Remote Extender/Repeater Kit is a wired system for relaying IR remote signals to overcome the normal line-of-sight limitation of infrared. It features a Connecting Block with one IR receiver input and six IR emitter outputs. With this system is is possible to control up to 18 devices in your home theater or A/V setup, allowing you to keep your components hidden from view or even operate them from another room.

A dual-band IR receiver or eye plugs into to 3.5mm mini jack connector on the input side of the Connecting Block. The IR receiver features adhesive allowing it to mount to most surfaces and has a 10' cable. In addition, it features LEDs that provide feedback so you can be sure it is successfully picking up your remote.

On the output side of the Connecting Block are six 3.5mm mini jack connectors for the IR emitters. The IR emitters are double-headed, and two are included in the kit. As with the IR receiver, the emitters have adhesive allowing them to attach to a variety of surfaces, and feature 10' cables. Each of the emitter heads can be mounted directly over of the IR receiver of the devices you want to control, or they can be arranged to create a "flood" pattern allowing you to control multiple devices stored in one area.

The Connecting Block also features an Ethernet (CAT5 or higher) input on a terminal block connector for applications where the IR receiver needs to be further than 10' away. To use Ethernet extension, a transmitter balun, sold separately, will also be required that the IR receiver will then plug in to.
If you own a Cmple video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Cmple Premium IR Remote Extender/Repeater Kit 1183-N in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Cmple Premium IR Remote Extender/Repeater Kit 1183-N:
Operating Frequencies 38 kHz and 56 kHz
Input / Output Connectors 1x 3.5 mm mini jack connector for IR receiver
6x 3.5 mm mini jack connector for IR emitter
1x Ethernet on terminal block connector for IR receiver
1x 12 VDC status input jack with LED indicator
Power Requirements 12 VDC, 200mA - AC adapter included
Dimensions Connecting Block: 3.2 x 2.4 x 1.1" (82 x 60 x 27 mm)
IR Receiver: 0.5 x 0.2 x 0.3" (14 x 6 x 8 mm)
IR Emitter: 2.7 x 0.5 x 0.5" (68 x 13 x 12 mm)
Both receiver and emitters feature 10' (3 m) cables
Weight Not specified by manufacturer
Packaging Info
Package Weight 0.8 lb
Box Dimensions (LxWxH) 6.6 x 4.8 x 2.2"
The user manual for the Cmple Premium IR Remote Extender/Repeater Kit 1183-N can be downloaded in .pdf format if it did not come with your new video extenders & repeaters, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Cmple users keep a unique electronic library for Cmple video extenders & repeaterss, where you can use our link to download the user manual for the Cmple Premium IR Remote Extender/Repeater Kit 1183-N.

The user manual lists all of the functions of the Cmple Premium IR Remote Extender/Repeater Kit 1183-N, all the basic and advanced features and tells you how to use the video extenders & repeaters. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Cmple service.
