User manual for the computar T3Z2910CS-IR 1/3" Varifocal Day/Night T3Z2910CS-IR

The user manual for the computar T3Z2910CS-IR 1/3" Varifocal Day/Night T3Z2910CS-IR provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

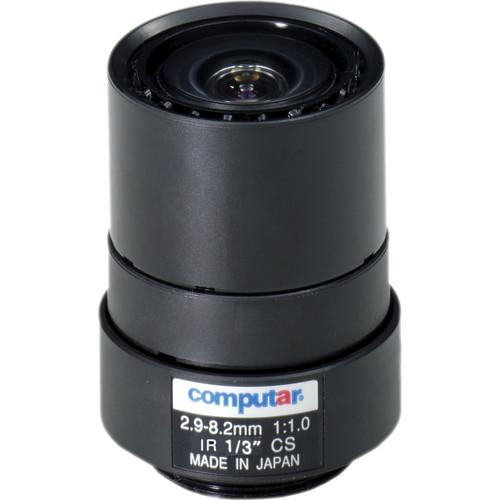

The computar T3Z2910CS-IR 1/3” Varifocal Day/Night Lens (2.9-8.2mm) is designed for CS-mount cameras with 1/3” format sensors. The lens facilitates easy focal length adjustments without having to move the camera from its installation point. With an aperture of f/1.0 to 16C, the lens is suitable for surveillance in low-light as well as bright light conditions. In addition, this IR-corrected day/night lens captures clear images, eliminating focus shift and infrared bleed.
If you own a computar lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the computar T3Z2910CS-IR 1/3" Varifocal Day/Night T3Z2910CS-IR in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the computar T3Z2910CS-IR 1/3" Varifocal Day/Night T3Z2910CS-IR:
Specifications
    Focal Length 2.9-8.2 mm
    Aperture Ratio 1:1.0
    Image Format 4.8 x 3.6 mm (ø6 mm)
    Operation Range Iris: F1.0 to F16C
    Focus: 1.64' to infinity (0.5 m to infinity)
    Zoom: 0.11 to 0.32" (2.9 to 8.2 mm)
    Control Iris / Focus / Zoom: Manual
    Angle of View 1/3-type: 125.6 to 44.7° (D), 95.0 to 35.6° (H), 69.0 to 26.7° (V)

    Operating Temperature 14 to 122°F (-10 to 50°C)
    Effective Lens Aperture Front: ø19.0 mm
    Rear: ø8.5 mm
    Back Focal Length Tele: 0.55" (14.0 mm)
    Wide: 0.30" (7.8 mm)
    Flange Back Length 0.49" (12.5 mm)
    Mount CS-mount
    Certifications CE, RoHS
    Dimensions ø1.31 x 1.83 x 1.74" (ø33.5 x 46.6 x 44.3 mm)
    Weight 1.55 oz (44 g)
    Packaging Info
    Package Weight 0.3 lb
    Box Dimensions (LxWxH) 5.0 x 4.0 x 3.0"
