User manual computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm)

Operating instructions and pdf manual for use - computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm) User manual, User manual computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm), computar, T6Z5710M, 1/3, 3, Motor, Lens, 5.7, to, 34.2mm,


User manual for computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm)

computar T6Z5710M 1/3
  • Manufacturer: computar
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Lenses - Lenses
  • Safety instructions
  • Startup and operation of the lenses
  • Tips for setting up your computar
  • Settings and expert assistance
  • Contact computar service
  • Troubleshooting
  • Warranty information
  • Price: 476 USD
We recommend checking out our discussion threads on the computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm), which address similar problems with connecting and setting up Lenses computar.



User manual for the computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm)

The user manual for the computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm) provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

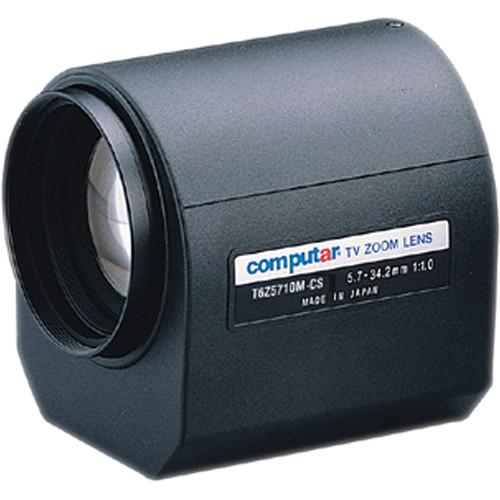

The computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm) allows you to control focal length, iris and focus via a lens controller. It is suitable for applications requiring long distance surveillance such as in parking lots and highways, where variable focal length and remote control are required.
If you own a computar lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm) in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm):
Specifications
    Focal Length 5.7 to 34.2 mm
    Aperture Ratio 1:1.0
    Image Format 0.19 x 0.14" / 4.8 x 3.6 mm (ø6 mm)
    Operation Range Iris: F1.0 to F16C
    Focus: 3.94' to infinity (1.2 m to infinity)
    Zoom: 0.22 to 1.35" (5.7 to 34.2 mm)
    Control Iris: Motorized
    Focus/Zoom: Motorized
    Object Dimensions at M.O.D. 5.7 mm: 40 x 29.61" (101.6 x 75.2 cm)
    34.2 mm: 6.7 x 5.12" (17 x 13 cm)
    Angle of View 56.5 to 10° (D), 45.9 to 8.1° (H), 34.8 to 6.2° (V)
    Supply Voltage 8 VDC
    Current 25 mA or less
    Response Time 2 seconds approximately
    Operating Temperature 14 to 122°F (-10 to 50°C)
    Effective Lens Aperture Front: ø41 mm
    Rear: ø10.2 mm
    Back Focal Length 8.5 mm
    Flange Back Length 12.5 mm
    Mount CS-mount
    Filter Size M49 P = 0.75 mm
    Tripod Mounting Screw 1/4 - 20UNC
    Certifications CE, RoHS
    Dimensions 2.7 x 3 x 3.25" (68.5 x 76.3 x 82.5 mm)
    Weight 15.17 oz (430 g)
    Packaging Info
    Package Weight 0.95 lb
    Box Dimensions (LxWxH) 3.25 x 3.0 x 2.7"
    The user manual for the computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm) can be downloaded in .pdf format if it did not come with your new lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other computar users keep a unique electronic library for computar lensess, where you can use our link to download the user manual for the computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm).

    The user manual lists all of the functions of the computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm), all the basic and advanced features and tells you how to use the lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from computar service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the computar T6Z5710M 1/3" 3 Motor Lens (5.7 to 34.2mm). User manuals are also available on the computar website under Surveillance - Surveillance Video - Lenses - Lenses.
