User manual for the Compuvideo CV-9270 SDI-ANP 3G HD/SD-SDI CV-9270 SDI-ANP

The user manual for the Compuvideo CV-9270 SDI-ANP 3G HD/SD-SDI CV-9270 SDI-ANP provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Video & Audio Signal Generators.

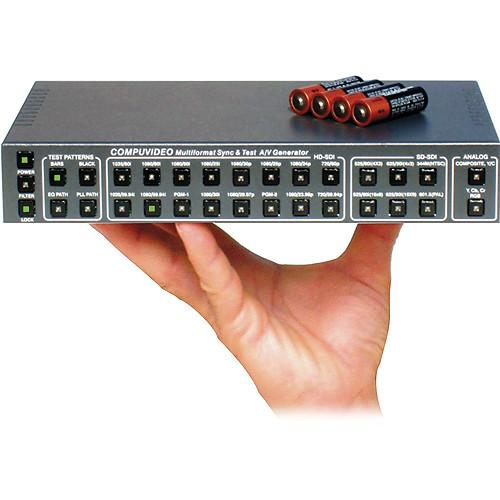

The CV-9270 SDI-ANP 3G HD/SD-SDI Multiformat Generator and PAL Analog A/V from Compuvideo is a digital multiformat(NTSC/PAL) HD-SDI, SD-SDI, and PAL analog professional generator. The device features a 31 direct function front panel control with last settings memory. It can be powered by AC/DC power for uninterrupted operation or by internal AA-batteries (included) for 100 hours of average operation. The CV-9270 SDI-ANP provides 2 HD/SD-SDI matched low jitter outputs, that can be used as broadcast high quality test patterns or master sync black reference generator to Genlock HD-SDI and SD-SDI video/audio systems.

The generator has a front panel program function for future standards/formats upgrades. In addition to HD-SDI / SD-SDI outputs, the CV-9270 SDI-ANP provides composite, component, and Y/C outputs in PAL, with 2 channel XLR balanced audio. The unit performs a comprehensive go/no-go test of the HD/SD-SDI & analog systems, testing for errors using the EDH system for SD or the CRC system for HD. The generator can be used in a rackmount, desktop, or handheld configuration. A rackmount kit is included.
If you own a Compuvideo video & audio signal generators and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Compuvideo CV-9270 SDI-ANP 3G HD/SD-SDI CV-9270 SDI-ANP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Compuvideo CV-9270 SDI-ANP 3G HD/SD-SDI CV-9270 SDI-ANP:
HD-SDI (SMPTE292M) Data Rates:
1.485 Gbps
Video Resolution:
720 / 59.94p, 60p
1035 / 59.94i, 60i
1080 / 23.98p, 24p, 25i, 25p, 29.97p, 30p, 30i, 50i, 59.94i, 60i
SD-SDI (SMPTE259M-C) Data Rates:
270 Mbps, 360 Mbps and 540 Mbps
Video Resolution:
525 / 59.94i, 625 / 50i (4 x 3)
525 / 59.94i, 625 / 50i (16 x 9)
344M (NTSC), BT-601 (PAL)
Connectors 2 x BNC, SDI output
6 x BNC, Composite test patterns or black reference output
1 x 4-pin mini DIN, Y/C output
3 x BNC, Component Y output
1 x BNC, Component Sync output 2 x 3-pin XLR male, channel balanced audio
1 x BNC, Audio 1 kHz tone
1 x DC Barrel power
Front Panel Controls 3 x Lite pushbutton; power, filter, lock
4 x Lite pushbutton; test patterns
16 x Lite pushbutton; HD-SDI
6 x Lite pushbutton; SD-SDI
2 x Lite pushbutton; analog
Back Panel Controls 1 x 2-position switch, microphone/line level
1 x 2-position switch, External DC/Internal battery
TV Standard PAL (BT-601) for analog video section
Dimensions (H x W x D) 1.7 x 10.0 x 6.0" (4.3 x 25.4 x 15.2 cm)
Weight 3.0 lb (1.4 kg)
Packaging Info
Package Weight 3.0 lb
Box Dimensions (LxWxH) 14.0 x 10.0 x 6.0"
The user manual for the Compuvideo CV-9270 SDI-ANP 3G HD/SD-SDI CV-9270 SDI-ANP can be downloaded in .pdf format if it did not come with your new video & audio signal generators, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Compuvideo users keep a unique electronic library for Compuvideo video & audio signal generatorss, where you can use our link to download the user manual for the Compuvideo CV-9270 SDI-ANP 3G HD/SD-SDI CV-9270 SDI-ANP.

The user manual lists all of the functions of the Compuvideo CV-9270 SDI-ANP 3G HD/SD-SDI CV-9270 SDI-ANP, all the basic and advanced features and tells you how to use the video & audio signal generators. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Compuvideo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Compuvideo CV-9270 SDI-ANP 3G HD/SD-SDI CV-9270 SDI-ANP. User manuals are also available on the Compuvideo website under Professional Video - Signal Processing & Distribution - Video & Audio Signal Generators.
