User manual for Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1
![Overall rating 4.5 Overall rating 4.5](./images/rating/4.5.gif) Overall Rating: 4.5
90% of respondents would recommend this to a friend.
- Manufacturer: Cooler Master
- Basic description and contents of package
- Product classification: Computers & Solutions - Computer Components - Fans & CPU Coolers
- Safety instructions
- Startup and operation of the fans & cpu coolers
- Tips for setting up your Cooler Master
- Settings and expert assistance
- Contact Cooler Master service
- Troubleshooting
- Warranty information
- Price: 16 USD
Click to enlarge image
|
We recommend checking out our discussion threads on the Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1,
which address similar problems with connecting and setting up Fans & CPU Coolers Cooler Master.
|
User manual for the Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1
The user manual for the Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1 provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Fans & CPU Coolers.

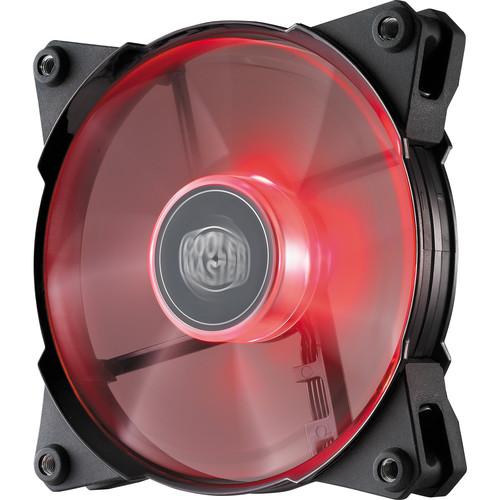

The red JetFlo 120 Ultra Cooling Fan from Cooler Master is a 4.7" / 120mm cooling fan that features a life expectancy of 160,000 hours, seven blades, speeds of 800 - 2,000 rpm, silent modes at 1,200 and 1,600 rpm, airflow levels up to 95 CFM, dust and water resistance, polarity proofing, and Polyoxymethylene (POM) bearings. It is also designed with a high efficiency motor, a low starting voltage, and fan-jam protection that includes an auto-resume function after the blade obstructions have been cleared. Additionally, steel threaded rubber pads help to absorb fan vibration and keep noise down.
The JetFlo 120 operates using a 4-pin connector, 12 VDC, 0.4A, and consumes 4.8W. Included with this cooling fan are two silent mode adapters and four metal screws.
|
If you own a Cooler Master fans & cpu coolers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1:
LED Color | Red | Fan Speed | 800 - 2,000 rpm (PWM) ±10%; with silent adapter: 1600/1200 rpm (fixed) | Air Flow | 95 CFM ± 10% | Air Pressure | 2.72 mm H2O ± 10% | Life Expectancy | 160,000 hrs | Noise Level | 19 dBA (1,200 rpm with included silent mode adapter) 28 dBA (1,600 rpm with included silent mode adapter) 12 - 36 dBA (PWM) | Bearing Type | POM Bearing - CM 4th Gen. bearing (POM: Polyoxymethylene) | Connector | 4-pin (PWN) | Voltage | 12 VDC | Current | 0.4 A | Power Consumption | 4.8 W | Dimensions | 4.7 x 4.7 x 1.0" / 120.0 x 120.0 x 25.0 mm | Weight | Not specified by manufacturer | Package Weight | 0.55 lb | Box Dimensions (LxWxH) | 7.1 x 5.1 x 1.3" | |
The user manual for the Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1 can be downloaded in .pdf
format if it did not come with your new fans & cpu coolers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Cooler Master users keep a unique electronic library
for Cooler Master fans & cpu coolerss,
where you can use our link to download the user manual for the Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1.
The user manual lists all of the functions of the Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1,
all the basic and advanced features and tells you how to use the fans & cpu coolers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Cooler Master service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Cooler Master JetFlo 120 Ultra Cooling Fan (Red) R4-JFDP-20PR-R1. User manuals are also
available on the Cooler Master website under Computers & Solutions - Computer Components - Fans & CPU Coolers.
