User manual for the Corsair RM Series RM1000 1000W 80 PLUS Gold CP-9020062-NA
The user manual for the Corsair RM Series RM1000 1000W 80 PLUS Gold CP-9020062-NA provides
necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Power Supplies.

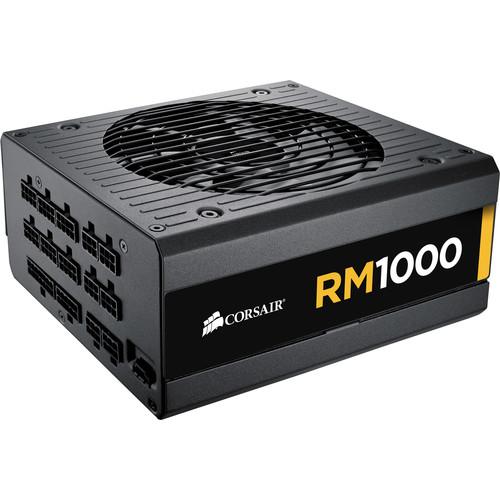

The black RM Series RM1000 1000W 80 PLUS Gold Certified Fully Modular Power Supply Unit (PSU) from Corsair offers reliable operation and is optimized for silence and high efficiency. It is built with low-noise capacitors and transformers, and the Zero RPM Fan Mode ensures that the fan does not even spin until the power supply is under heavy load.
|
If you own a Corsair power supplies and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Corsair RM Series RM1000 1000W 80 PLUS Gold CP-9020062-NA in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Corsair RM Series RM1000 1000W 80 PLUS Gold CP-9020062-NA:
| Continuous Power | 1000 W | | Peak Power | 1100 W | | Motherboard Support | Version:
ATX12V 2.4
EPS12V 2.92 | | Cable Management | Fully modular | | MTBF | 100,000 hours | | Temperature | Operating Temperature Range: 32 to 122°F (0 to 50°C)
Continuous Output Rated Temperature: 104°F (40°C) | | AC Input | Input Voltage: 100 to 240 V
Input Frequency: 47 to 63 Hz
Input Current: 6.5 to 13 A
PFC: Yes
Power Factor at 100% Load: 0.99
Intel C6/C7 Sleep State Compatible: Yes
Hold-Up Time: 16.0 ms | | DC Output | Ability to Toggle Single/Multiple +12 V Rails: No
+12 V: 83.3 W
+12 V: 1000 W
+3.3 V: 25 A
+5 V: 25 A
Maximum Combined Power 3.3 + 5 V: 150 W
+5 Vsb: 3 A
-12 V: 0.8 A | | Cooling | Fanless Mode: Yes
Load for Fan to Turn On: 0.4%
Fan Bearing Technology: Rifled
Maximum Fan Speed: 1,105 rpm
dB at 20% Load (6 dBA noise floor): 6.0 A
dB at 50% Load: 10.9 A
dB at 100% Load: 26.7 | | Safety Certfication | OCP (Over Current Protection): Yes OVP (Over Voltage Protection): Yes UVP (Under Voltage Protection): Yes SCP (Short Circuit Protection): Yes OTP (Over Temperature Protection): Yes OPP (Over Power Protection): Yes CE: Yes CB: Yes TÜV: Yes FCC: Yes cUL: Yes | | Efficiency | 80 PLUS Certification Level: Platinum
Efficiency at 115 V, 10% Load 87.79%
Efficiency at 115 V, 20% Load 90.68%
Efficiency at 115 V, 50% Load: 91.13%
Efficiency at 115 V, 100% Load: 87.32%
Efficiency at 230 V, 10% Load: 88.92%
Efficiency at 230 V, 20% Load: 91.72%
Efficiency at 230 V, 50% Load: 92.36%
Efficiency at 230 V, 100% Load: 89.42%
Power Consumption in Standby: <0.45 W
Energy Star: 5.0
ErP Lot 6: 2,013
WEEE: Yes
RoHS: Yes | | Cables | Modular Cable Management: Fully modular
Flat Cables: Yes
Number of Cables: 15
Motherboard Cable (20 + 4 Pin): 1
Motherboard Cable Length (+/- 10 mm): 24" (61 cm)
4+4-Pin (CPU, Works as Either 4 or 8-Pin): 1
CPU Power Cable Length (+/- 10 mm): 25.6" (65.0 cm)
PCIe 6 +2 Pin: 8 GPU
PCIe Power Cable Length: (+/- 10 mm): 29.5" (75.0 cm)
4-Pin Peripheral Power Connector ("Molex", HDD): 11
SATA 5-Pin Connector: 12
Floppy Power: 2
Multi-GPU Ready: Yes | | Material | Steel | | Dimensions (L x W x D) | Without Cable: 7.1 x 5.9 x 3.4" / 18.0 x 15.0 x 8.6 cm
Fan Size: 5.5" (14.0 cm) | | Weight | 7.1 lb (3.2 kg) | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 15.7 x 9.0 x 5.9" | |
