User manual Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000

Operating instructions and pdf manual for use - Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000 User manual, User manual Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000, Creative, Labs, Sound, Blaster, Z, PCIe, VARpak, S


User manual for Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.
Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000
  • Manufacturer: Creative Labs
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Components - Sound Cards
  • Safety instructions
  • Startup and operation of the sound cards
  • Tips for setting up your Creative Labs
  • Settings and expert assistance
  • Contact Creative Labs service
  • Troubleshooting
  • Warranty information
  • Price: 90 USD
We recommend checking out our discussion threads on the Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000, which address similar problems with connecting and setting up Sound Cards Creative Labs.



User manual for the Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000

The user manual for the Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000 provides necessary instructions for the proper use of the product Computers & Solutions - Computer Components - Sound Cards.

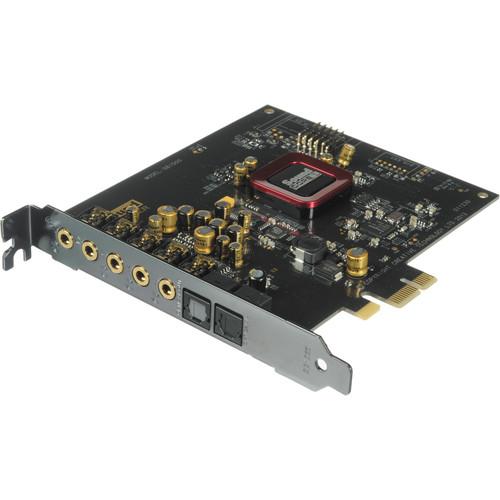

The Sound Blaster Z PCIe VARpak Soundcard from Creative Labs features a PCI Express 1x Bus connection for easy installation. Once installed, you benefit from speaker support for both 2.1 and 5.1 channels as well as headphones. The rear panel of the sound card contains a variety of ports including one 3.5mm headphone jack, one 3.5mm front-out mini jack, three 3.5mm line-out mini jacks, one 3.5mm rear-out mini jack, and one 3.5mm center / subwoofer mini jack. Along with the 3.5mm jacks, you can also take advantage of both optical in and out TOSLINK ports.

The Sound Blaster Z also supports enhanced communication through the integrated Crystal Voice suite of technologies. The gold plated connectors, speaker optimization technology, and digital content encoding capability all add to the enhanced sound quality provided by the Sound Blaster Z.
If you own a Creative Labs sound cards and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000:
Specifications
    Technical Information
    Audio Performance • Signal-to-Noise Ratio : 116dB
    • 24-bit Analog-to-Digital conversion of analog inputs at up to 96 kHz sample rate
    • 24-bit Digital-to-Analog conversion of digital sources at up to 192 kHz sample rate to analog outputs
    • 16-bit to 24-bit recording sampling rates:
    8,11.025,16, 22.05, 24, 32, 44.1, 48 and 96kHz
    • 16-bit to 24-bit playback sampling rates:
    8,11.025,16, 22.05, 24, 32, 44.1, 48, 96 and 192kHz
    Rear Panel Connectors • Line In / Microphone In: Shared 1/8" (3.5mm) mini jack
    • Headphone: 1 x 1/8" (3.5mm) mini jack
    • Front-Out: 1 x 1/8" (3.5mm) mini jacks
    • Line Out: 3 x 1/8" (3.5mm) mini jacks
    • Rear-Out: 1 x 1/8" (3.5mm) mini jacks
    • Center / Subwoofer: 1 x 1/8" (3.5mm) mini jacks
    • Optical Out: TOSLINK
    • Optical In: TOSLINK
    Speaker Support • Stereo/2.1 Speakers
    • 5.1 Speakers
    • Headphones
    Bus Connection • PCE Express 1x
    Front Panel Connectors • One 2x5 pin Intel HD Front Panel Audio standard header
    Other Specifications
    Software • Sound Blaster Z-Series Control Panel
    • SBX Pro Studio effects
    • CrystalVoice effects
    • Creative ALchemy
    • Creative Host OpenAL / EAX5.0 HD
    • Creative Diagnostics
    • Dolby Digital Live encoder
    • DTS Connect encoder
    • Sound Blaster Speaker Setup
    • Creative Software AutoUpdate
    • Creative Product Registration
    Minimum System Requirements • Intel Core 2 Duo or AMD equivalent processor, 2.2GHz or faster recommended
    • Intel, AMD or 100% compatible motherboard
    • Microsoft Windows 8 (32/64-bit), Windows 7 (32/64-bit)
    • 1 GB RAM
    • >600 MB of free hard disk space
    • Available PCI Express® (x1, x4 or x16) slot
    • Available CD-ROM or DVD-ROM drive
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
    Packaging Info
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 8.0 x 6.0 x 2.0"
    The user manual for the Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000 can be downloaded in .pdf format if it did not come with your new sound cards, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Creative Labs users keep a unique electronic library for Creative Labs sound cardss, where you can use our link to download the user manual for the Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000.

    The user manual lists all of the functions of the Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000, all the basic and advanced features and tells you how to use the sound cards. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Creative Labs service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Creative Labs Sound Blaster Z PCIe VARpak Sound 30SB150200000. User manuals are also available on the Creative Labs website under Computers & Solutions - Computer Components - Sound Cards.
