User manual for the D-Link 8-PORT 10/100/1000M PoE with 2 Combo SFP DGS-1210-10P
The user manual for the D-Link 8-PORT 10/100/1000M PoE with 2 Combo SFP DGS-1210-10P provides
necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

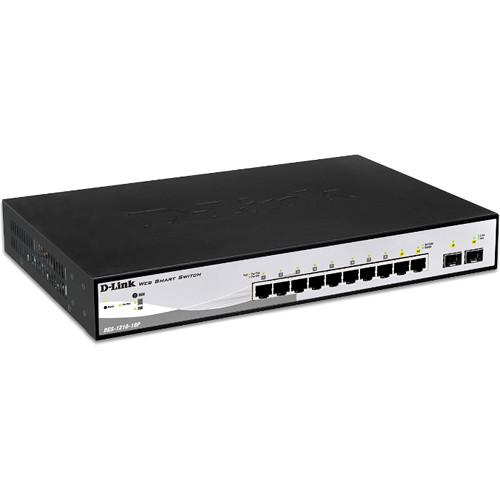

The 8-Port 10/100/1000M PoE with 2 Combo SFP Ports Web Smart Switch from D-Link integrates advanced management and security functions that provide performance and scalability. The switch features 10/100/1000 Mb/s ports, which are PoE-enabled. It offers ease-of-use and Green features like time-based PoE, which allows for the power to be shut off at a predetermined time, and Green Technology that saves power by detecting link status and cable length. Compliant with 802.3af and 802.3at Pre-Standard, this switch is capable of feeding power to devices up to 30W. Management options for the switch include SNMP, Web Management, SmartConsole Utility, and Compact Command Lines. The switch also supports ACL filtering and D-Link's Safeguard Engine. It uses Auto Voice VLAN, ensuring high priority for voice traffic. The switch comes with a fanless design in a compact 13" desktop enclosure which allows for a quiet operation.
|
If you own a D-Link network switches, bridges & hubs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the D-Link 8-PORT 10/100/1000M PoE with 2 Combo SFP DGS-1210-10P in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the D-Link 8-PORT 10/100/1000M PoE with 2 Combo SFP DGS-1210-10P:
| Port Standards & Functions | IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
Auto-negotiation
IEEE 802.3x Flow Control | | Number of Ports | 8 x PoE 10/100/1000 Mb/s
2 x Combo 10/100/1000BASE-T/SFP | | Network Cables | UTP Cat. 5, Cat. 5e (328' (100 m) maximum)
EIA/TIA-568 100-ohm STP (328' (100 m) maximum) | | Full/Half Duplex | Full/Half duplex for 10/100 Mb/s speeds
Full duplex for Gigabit speed | | Media Interface Exchange | Auto MDI/MDIX adjustment for all twisted-pair ports | | Switching Capacity | 40 Gb/s | | Transmission Method | Store-and-forward | | MAC Address Table | 16 K entries per device | | MAC Address Update | Up to 256 static MAC entries
Enable/disable auto-learning of MAC addresses | | Forwarding Rate | 14.88 Mp/s (maximum 64 bytes packet) | | RAM Buffer | 1.5 MB per device | | PoE Standard | 802.3af and pre-standard 802.3at | | PoE Capable Ports | Ports 1 to 8: 15.4 W or 30 W
Maximum 30 W on 2 10/100/1000 Mb/s ports
Maximum 15.4 W on 4 10/100/1000 Mb/s ports
Maximum 7.5 W on 8 10/100/1000 Mb/s ports | | PoE Power Budget | Maximum 78 W | | AC Input | 100 to 240 VAC 50/60 Hz internal universal power supply | | Maximum Power Consumption | 103.4 W (PoE on) / 17.9 W (PoE off) | | Standby Power Consumption | 10.3 W/110 V, 11.1 W/240 V | | Fan Quantity | None | | Acoustics | 0 dB(A) | | Heat Dissipation | 352.63 BTU/hr | | Diagnostic LEDs | Power (per device)
Fan error (per device, optional)
Link/Activity/Speed (per 10/100/1000 Mb/s port)
Link/Activity/Speed (per SFP port) | | Emission (EMI) | FCC Class A
CE Class A
IC Class A
VCCI Class A
C-Tick | | MTBF | 315,336 hours | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | 14 to 158°F (-10 to +70°C) | | Operating Humidity | 10 to 95% (non-condensing) | | Storage Humidity | 5 to 95% (non-condensing) | | Safety | cUL, LVD | | L2 Features | MAC Address Table: 8 K
Flow Control: 802.3x flow control, HOL blocking prevention
IGMP Snooping: IGMP v1/v2 Snooping, supports 256 IGMP groups, supports at least 64 static multicast addresses, IGMP per VLAN, supports IGMP Snooping Querier
Spanning Tree Protocol: 802.1D STP, 802.1w RSTP
Loopback Detection
802.3ad Link Aggregation: Maximum 5 groups per device/8 ports per group
Port Mirroring: One-to-one, many-to-one, supports Mirroring for Tx/Rx/both
Cable Diagnostics
Configurable Auto MDI/MDIX
Multicast Filtering: Forwards all unregistered groups, filters all unregistered groups | | VLAN | 802.1Q
VLAN Group: Maximum 256 static VLAN groups, maximum 4094 VIDs
Management VLAN
Asymmetric VLAN
Auto Voice VLAN: Maximum 10 user defined OUI, maximum 8 default OUI | | Quality of Service (QoS) | 802.1p Quality of Service
4 queues per port
Queue Handling: Strict, weighted Round Robin (WRR)
CoS Based On: 802.1p Priority Queues, DSCP
Bandwidth Control: Port-based (Ingress/Egress, min. granularity 64 Kb/s) | | Access Control List (ACL) | Maximum 50 profiles
Maximum 240 rules shared by profiles
ACL Based On: MAC Address, IPv4 Address (ICMP/IGMP/TCP/UDP), VLAN ID, 802.1p Priority, DSCP
ACL Actions: Permit, deny | | Security | 802.1X
Port Security: Supports up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
Static MAC
D-Link Safeguard Engine
DHCP Server Screening
ARP Spoofing Prevention: Maximum 64 entries
SSL: Supports v1/v2/v3, supports IPv4 | | MIB | 1213 MIB II
1493 Bridge MIB
1907 SNMP v2 MIB
1215 Trap Convention MIB
2233 Interface Group MIB
D-Link Private MIB | | RFC Standard Compliance | RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 Telnet Server
RFC 855 Telnet Server
RFC 856 Telnet Binary Transmission
RFC 858 Telnet Server
RFC 896 Congestion Control in TCP/IP Network
RFC 903 Reverse Address Resolution Protocol
RFC 951 BootP Client
RFC 1155 MIB
RFC 1157 SNMP v1
RFC 1191 Path MTU Discovery
RFC 1212 Concise MIB Definition
RFC 1213 MIB II, IF MIB
RFC 1215 Traps for use with the SNMP
RFC 1239 Standard MIB
RFC 1350 TFTP
RFC 1493 Bridge MIB
RFC 1519 CIDR
RFC 1945 HTTP/1.0
RFC 2131 DHCP
RFC 2132 DHCP Options and BOOTP Vendor Extensions
RFC 2138 Radius Authentication
RFC 2233 Interface MIB
RFC 2578 Structure of Management Information Version 2 (SMIv2)
RFC 2647 802.1p
RFC 3416 SNMP
RFC 3417 SNMP
RFC 3621 Power Ethernet | | Management | Web-based GUI
Compact CLI through Telnet
Telnet Server
TFTP Client
SNMP: Supports v1/v2/v3
SNMP Trap
Trap for SmartConsole Utility
System Log: Maximum 500 log entries, supports IPv4 log server
BootP/DHCP Client
Time Setting: SNTP
LLDP, LLDP-MED
Time-based PoE | | Dimensions | 11.02 x 7.08 x 1.73" / 280 x 180 x 44 mm | | Weight | 3.10 lb / 1.41 kg | | Package Weight | 5.45 lb | | Box Dimensions (LxWxH) | 15.6 x 11.0 x 3.2" | |
