User manual for Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P

Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P
  • Manufacturer: Dahua Technology
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Network Video Recorders (NVRs)
  • Safety instructions
  • Startup and operation of the network video recorders (nvrs)
  • Tips for setting up your Dahua Technology
  • Settings and expert assistance
  • Contact Dahua Technology service
  • Troubleshooting
  • Warranty information
  • Price: 800 USD
Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P

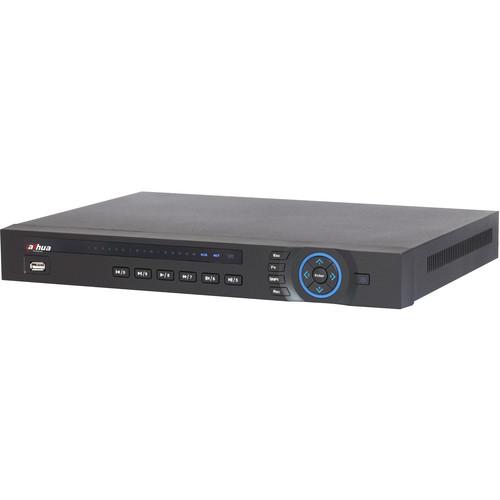

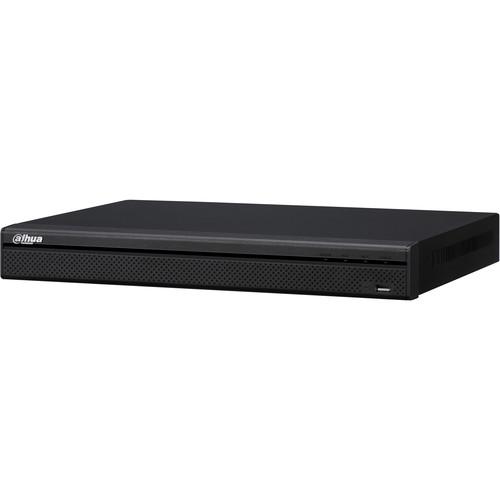

Click to enlarge image

We recommend checking out our discussion threads on the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P, which address similar problems with connecting and setting up Network Video Recorders (NVRs) Dahua Technology.



User manual for the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P

The user manual for the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Network Video Recorders (NVRs).

The NVR4216-8P PoE Network Video Recorder from Dahua Technology records video and audio from up to 16 network cameras at 200 Mb/s. With supports for up to 8TB HDD in all, the NVR can record images in real-time across all of its 16 channels and store them on-board. This NVR can be connected to an HDMI/VGA monitor. It comes with a PoE switch that allows 8 cameras to be connected directly to the NVR, eliminating the need for additional hardware.
If you own a Dahua Technology network video recorders (nvrs) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P:
Video & Audio
Max IP Camera Inputs 16
Two-Way Audio 1 x Input
1 x Output
RCA
Display
Interface 1 x HDMI, 1 x VGA
Resolution 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Display Split 1/4/8/9/16
OSD Camera title, time, video loss, camera lock, motion detection, recording
Recording
Compression H.264 / MJPEG
Resolution 5 MP (2560 x 1920) / 3 MP (2048 x 1536) / 1080p (1920 x 1080) / 720p (1280 x 720) / D1 (704 x 576 / 704 x 480)
Recording Rate 200 Mbps
Bit Rate 48 to 8192 kbps
Video Record Mode Manual, schedule (regular (continuous), MD, alarm), stop
Recording Intervals 1 to 120 min (default: 60 min)
Pre-Record: 1 to 30 sec
Post-Record: 10 to 300 sec
Video Detection & Alarm
Event Trigger Recording, PTZ, tour, video push, email, FTP, snapshot, buzzer, and screen tips
Video Detection Motion detection
MD Zones: 396 (22 x 18), video loss, and camera blank
Alarm Input 4
Relay Output 2
Playback & Backup
Playback 1/4/9/16
Search Modes Time/date, alarm, MD & exact search (accurate to second), smart search
Playback Function Play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, shuffle, backup selection, digital zoom
Backup Modes USB device / Network / Internal SATA burner
Network
Ethernet 1 x RJ-45 port (10/100Mbps)
PoE 8 (IEEE 802.3 af/at)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and more)
Maximum User Access 128 users
Smartphone Apps iPhone, iPad, Android, Windows Phone
System
Main Processor Dual-core embedded processor
Operating System Embedded Linux
General
Internal HDD 2 x SATA III ports; up to 8 TB
USB Interface 1 x USB 3.0 (rear); 1 x USB 2.0 (front)
RS232 1 port for PC communication and keyboard
RS485 1 port for PTZ control
Power Supply 100 to 240 VAC, 50/60 Hz
Power Consumption NVR: 60 W (without HDD)
PoE: Maximum 25.5 W for single port
Operating Environment Temperature: 14 to 131°F (-10 to 55°C)
Humidity: 10 to 90% RH
Pressure: 86 to 106 kpa
Dimensions 14.8 x 11.2 x 1.9" (37.5 x 28.5 x 5.0 cm); 1 U
Weight 2.0 lb (0.9 kg) without HDD
The user manual for the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P can be downloaded in .pdf format if it did not come with your new network video recorders (nvrs), although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Dahua Technology users keep a unique electronic library for Dahua Technology network video recorders (nvrs)s, where you can use our link to download the user manual for the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P.

The user manual lists all of the functions of the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P, all the basic and advanced features and tells you how to use the network video recorders (nvrs). The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Dahua Technology service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P. User manuals are also available on the Dahua Technology website under Surveillance - Surveillance Video - Network Video Recorders (NVRs).



Discussion Question and answer discussion forum concerning user instructions and resolving problems with the Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P

Post new comment to Dahua Technology NVR4216-8P PoE Network Video DHI-NVR4216-8P

Subject: Display of cameras
Date: 18.01.2017 04:01:18Author: Johannes Schulte
We can not use the display of more than 4 cams at one time, even the offer is 8 or even more cams on the monitot connected to the HDMI port. Why?
Reply
