dB Technologies  ES 802 Bi-Amped System ES 802
  • Manufacturer: dB Technologies
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Portable PA Systems
  • Safety instructions
  • Startup and operation of the portable pa systems
  • Tips for setting up your dB Technologies
  • Settings and expert assistance
  • Contact dB Technologies service
  • Troubleshooting
  • Warranty information
  • Price: 999 USD

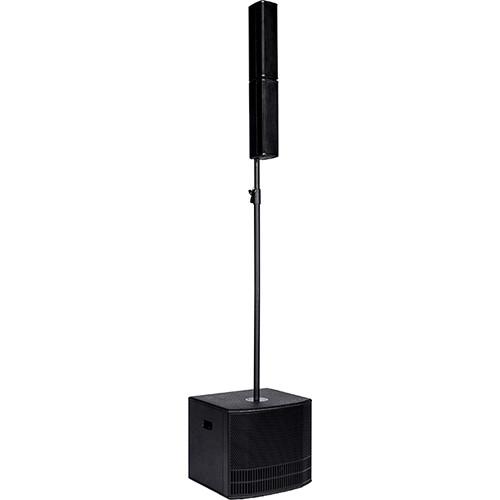

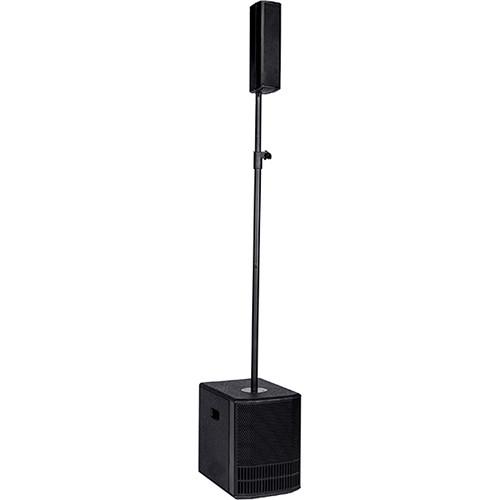

dB Technologies  ES 802 Bi-Amped System ES 802 dB Technologies  ES 802 Bi-Amped System ES 802
Click to enlarge image

We recommend checking out our discussion threads on the dB Technologies ES 802 Bi-Amped System ES 802, which address similar problems with connecting and setting up Portable PA Systems dB Technologies.



User manual for the dB Technologies ES 802 Bi-Amped System ES 802

The user manual for the dB Technologies ES 802 Bi-Amped System ES 802 provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

The ES 802 Bi-Amped System from dB Technologies is composed of two passive tops and one 12" subwoofer. The sub hosts an 1200W power amp module with auto-range PSU. A powerful DSP manages the functions of the system. The satellite is placed on the subwoofer through the supplied D25mm pole. The Class-D Digipro G3 amplifier provides high power with limited weight and dimension. The digital preamplifier controls the audio crossover of the acoustic components, the frequency response, the limiter, and the phase alignment.

The top is equipped with 8x 3" neodymium drivers. The internal design of the top allows an asymmetrical vertical coverage. A double ringed phase plug widens the horizontal coverage and assures suitable voice intelligibility. The bass-reflex subwoofer houses a 12" woofer and the amplifier module. The enclosure is made of birch plywood coated with a durable scratch-resistant black coat, which makes it road-ready. Two recessed handles (one per side) help easy transport. The metal grid with foam, in addition to protecting the woofer and gives a professional look, it helps the reflex effect. The lower part of the grid, placed right on the reflex ports, has holes with a larger diameter to enhance air flow.

The digital preamplifier with DSP (Digital Signal Processing) controls the audio crossover of the acoustic components, the frequency response, the limiter, and the phase alignment. In addition to the input connectors and controls of the user interface, there are two Speakon outputs and a VDE power connector.

The DSP allows you to choose among 8 different equalizations flat, bass boost, bass reduction, playback, club, vocal, monitor, and anti-feedback.
If you own a dB Technologies portable pa systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the dB Technologies ES 802 Bi-Amped System ES 802 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the dB Technologies ES 802 Bi-Amped System ES 802:
Specifications
Acoustical
Frequency Response 37 to 15,000 Hz (-10 dB)
Maximum SPL 124 dB
Type MF-HF: 8x 3", Neodymium
LF Detail 1 x 12"
Directivity 95 x 65°
Amplifier
Amplifier Technology Digipro G3
Amplifier Class Class-D
Power Amp 1200 W
Controls 1 x rotary (presets), 1 x audio signal monitoring LED, 1 x audio limiter LED
Power Supply SMPS with PSU auto-range
Power Connections VDE socket
Cooling Convection
Processor
Controller DSP 56-bit
Converter AD/DA: 24-bit / 48 kHz
Presets Flat, bass boost, bass reduction, playback, club, vocal, monitor, anti-feedback
Limiter Dual active, peak, RMS, thermal
Crossover Frequency LF-MF: 206 Hz
Inputs
Channel Mic/Instrument: 1 x combo XLR-1/4" balanced/unbalanced input
1 x RCA stereo input
Output Link: 1 x XLR balanced output
Mechanics
Housing Subwoofer: 15 mm black painted birch plywood
Tops: Polypropylene PP
Handles 2 x lateral side (subwoofer)
Dimensions (W x H x D) Top: 4 x 14 x 5.4" (10.5 x 35.5 x 14 cm)
Subwoofer: 18.3 x 16 x 17" (46.4 x 41 x 43 cm)
Weight Top: 4.2 lb (2 kg)
Subwoofer: 36.5 lb (16.5 kg)
The user manual for the dB Technologies ES 802 Bi-Amped System ES 802 can be downloaded in .pdf format if it did not come with your new portable pa systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other dB Technologies users keep a unique electronic library for dB Technologies portable pa systemss, where you can use our link to download the user manual for the dB Technologies ES 802 Bi-Amped System ES 802.

The user manual lists all of the functions of the dB Technologies ES 802 Bi-Amped System ES 802, all the basic and advanced features and tells you how to use the portable pa systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from dB Technologies service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the dB Technologies ES 802 Bi-Amped System ES 802. User manuals are also available on the dB Technologies website under Pro Audio - Live Sound - Portable PA Systems.
