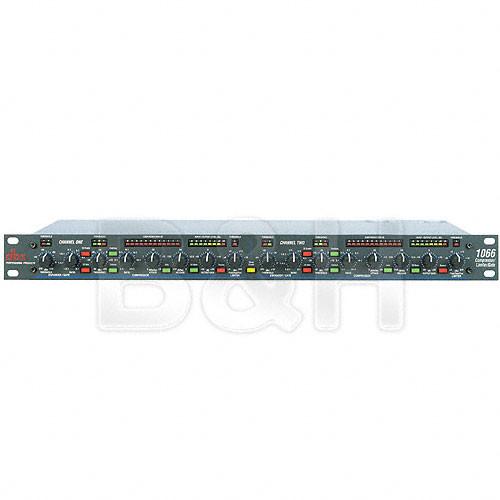

User manual for dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V
Overall Rating: 5.0
100% of respondents would recommend this to a friend.
- Manufacturer: dbx
- Basic description and contents of package
- Product classification: Pro Audio - Recording - Dynamics Processors
- Safety instructions
- Startup and operation of the dynamics processors
- Tips for setting up your dbx
- Settings and expert assistance
- Contact dbx service
- Warranty information
- Price: 430 USD
We recommend checking out our discussion threads on the dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V,
which address similar problems with connecting and setting up Dynamics Processors dbx.
User manual for the dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V
The user manual for the dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V provides
necessary instructions for the proper use of the product Pro Audio - Recording - Dynamics Processors.
Based on a new VCA, the 1066, a dual mono/stereo compressor/limiter with gate, carries both the classic dbx response, in addition to full manual control over the attack and release characteristics. Frequency dependent gain control is easy to set up and execute with the side chain, and the Side Chain Monitor button helps with setting up the required EQ.
If you own a dbx dynamics processors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V:
| Function || Compressor/Limiter with gate |
| Number of Channels || 2 |
| Inputs || 2 x XLR, 2 x 1/4" TRS phone |
2 x TS phone side chain
| Output || 2 x XLR, 2 x 1/4" TRS phone |
2 x TRS phone side chain
| Maximum Input Level || 24dBu |
| Compression Threshold || -40dB to +20dB |
| Compression Ratio || Variable 1:1 to infinity:1 |
| Attack Time || Auto |
Manual: Scalable program dependent
| Release Time || Auto |
Manual: Scalable program dependent
| Gate Threshold || OFF to + 15dB |
| Gate Rate || Attack: <100 usec |
Release: Program dependent
| Maximum Output Level || +21dBu |
| Make-up Gain || -20dB to +20dB |
| Frequency Response || 0.35Hz to 90kHz |
| Dynamic Range || >118dB |
| Noise || -96dBu |
| Dimensions || 1U rack mount, 9" deep |
| Specialties || Switchable +4dBu or -10dBV operation per channel |
| Package Weight || 10.05 lb |
| Box Dimensions (LxWxH) || 22.2 x 11.4 x 3.6" |
The user manual for the dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V can be downloaded in .pdf
format if it did not come with your new dynamics processors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other dbx users keep a unique electronic library
for dbx dynamics processorss,
where you can use our link to download the user manual for the dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V.
The user manual lists all of the functions of the dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V,
all the basic and advanced features and tells you how to use the dynamics processors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from dbx service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the dbx 1066 - Dual Mono/Stereo Compressor/Limiter/Gate DBX1066V. User manuals are also
available on the dbx website under Pro Audio - Recording - Dynamics Processors.
