User manual for the dbx 266xs - Compressor/Gate DBX266SV
The user manual for the dbx 266xs - Compressor/Gate DBX266SV provides
necessary instructions for the proper use of the product Pro Audio - Recording - Dynamics Processors.

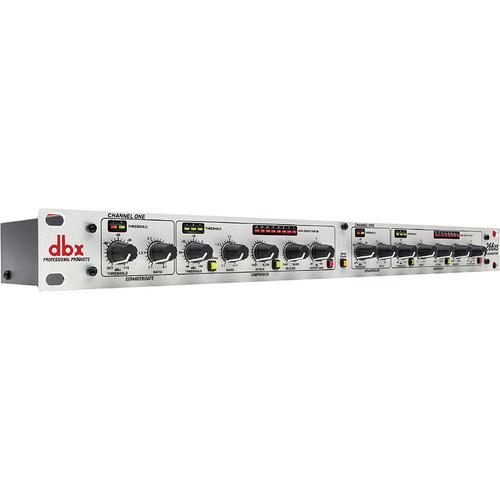

The 266xs from dbx is a dual channel compressor/gate that when added to a live sound rig or studio, will deliver more polished, professional sound. The unit can function either as a stereo processor or in dual mono mode and features all the usual controls required for this kind of processor.
If you own a dbx dynamics processors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the dbx 266xs - Compressor/Gate DBX266SV in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the dbx 266xs - Compressor/Gate DBX266SV:
>+21dBu balanced/unbalanced into 2kΩ or greater >+18dBm balanced/unbalanced into 600Ω
Other Connectors
Side Chain Type: 1/4" TRS phone, Normalled: Ring = Output (send); Tip = Input (return) Impedance: Tip = >10kΩ (input), Ring = 2kΩ (output) Maximum Levels: >+22dBu (tip/input), >+20dBU (ring/output)
Compression Threshold
-40dBu to +20dBu
Compression Ratio
1:1 to infinity:1, variable
Attack Time
Scalable program-dependent AutoDynamic
Release Time
Scalable program-dependent AutoDynamic
Slope
OverEasy or hard knee, selectable
Make-up Gain
-20dB to +20dB
Gate Threshold
-60dBu to +15dBu
Ratio
1:1 to 4:1 expansion
Gate Rate
Attack: <100µSec (from maximum depth) Release: Program dependent
Frequency Response
FR: 20Hz to 20kHz, +0/-0.5dB Bandwidth: 0.35Hz to 9okHz, +0/-3.0dB
Dynamic Range
>114dB, unweighted
Noise
<-93dBu, unweighted (22kHz measured bandwidth)
THD + N
<0.02% typical on any amount of compression @ 1kHz
The user manual for the dbx 266xs - Compressor/Gate DBX266SV can be downloaded in .pdf
format if it did not come with your new dynamics processors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other dbx users keep a unique electronic library
for dbx dynamics processorss,
where you can use our link to download the user manual for the dbx 266xs - Compressor/Gate DBX266SV.
The user manual lists all of the functions of the dbx 266xs - Compressor/Gate DBX266SV,
all the basic and advanced features and tells you how to use the dynamics processors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from dbx service.
