User manual for the dbx ZonePRO 1260m 12x6 Digital Zone Processor DBX1260MV

The user manual for the dbx ZonePRO 1260m 12x6 Digital Zone Processor DBX1260MV provides necessary instructions for the proper use of the product Pro Audio - Installation Sound - System Processors.

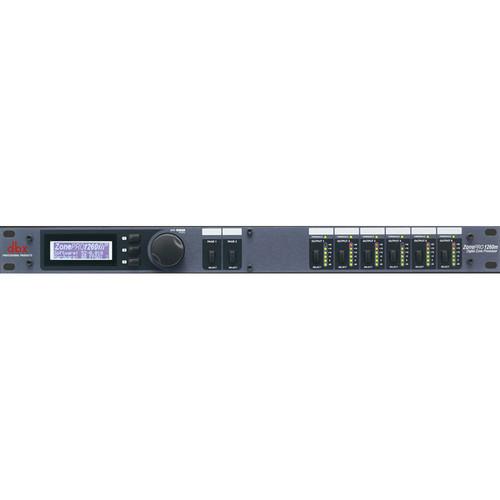

The dbx ZonePRO 1260m 12x6 Digital Zone Processor can distribute up to twelve audio sources across six mono output zones. The included software will allow you to adapt the input/outputs quickly to fit your needs. The ZonePRO 1260m features an interactive front panel with an LCD display, comprehensive signal metering, user-specified controls, and paging broadcast buttons. With versatile routing and plentiful connectivity, the 1260m will suit a banquet hall or house of worship.

The ZonePRO 1260m's pre-configured architecture keeps the input/output addresses fixed and simple. It has six balanced Euroblock mic/line inputs with gain control, four mono-summed unbalanced RCA input pairs, and a S/PDIF input for up to two channels of digital audio. Its six zones output from balanced, line-level Euroblock connectors.

Once the analog cables are connected, your audio system can be controlled and fine-tuned in the ZonePRO Designer software from your Windows-based PC. The output zones all have individual tone controls, including AutoWarmth and one DSP insert, for optimally tuning the speaker system to the room. To make the most of each source, the ZonePRO 1260m also has independent EQ and two selectable DSP inserts for each of the 12 inputs.

The front panel of the 1260m has Lightpipe metering for each output and lets you alter level settings in a moment's notice. It also has Threshold meters that light up as dynamics processing on the outputs is triggered.

The ZonePRO Designer software can be set and forgot, or it can be programmed with "Scene" changes that take effect automatically throughout the day. If you're using the ZonePRO 1260m in a restaurant that gets busier as the night goes on, an increased volume and bass response could be set to engage daily at 10pm. A subwoofer could be attached to its own zone output, and set to only be in use between 11pm and 1am.

In addition to programmed changes, the ZonePRO 1260m can be controlled manually with dbx ZC-series remote controls. Wallmounted within output zones, ZC controls vary from a simple volume control to a rotary input-source selector. The ZonePRO 1260m supports up to 12 remote controls.

The Link Bus allows the ZonePRO 1260m's inputs to be routed to another ZonePRO product to double its output zones. Up to 3 ZonePRO processors can be daisy-chained.
If you own a dbx system processors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the dbx ZonePRO 1260m 12x6 Digital Zone Processor DBX1260MV in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the dbx ZonePRO 1260m 12x6 Digital Zone Processor DBX1260MV:
Specifications
    Front Panel Six-segment Lightpipe output meters from -30 to +20 dBu
    Output threshold meters
    LCD display shows information on source, page steering, zone volume, and mute
    Inputs Euroblock mic/line x6
    Unbalanced, mono-summed RCA input pairs x4
    S/PDIF 2 channel input x1
    Input Impedance Euroblock:
    >50kΩ balanced
    >25kΩ unbalanced
    RCA:
    >25kΩ unbalanced
    Phantom Power +15VDC
    Maximum Input Level +20dBu mic/line, +12dBu RCA
    CMRR > 40dB, typically >55db @ 1kHz
    Mic Pre Gain 30 to 60dB
    Mic Input Noise (E.I.N.) < -118dBu, 22Hz-22kHz, 150Ω source impedance
    Outputs Balanced, RF filtered Euroblock x6
    Output Impedance 120Ω balanced
    60Ω unbalanced
    Maximum Output Level +20dBu
    A/D Conversion dbx Type IV conversion system

    Dynamic range line:
    >113dB, A-weighted, >110dB unweighted

    Type IV dynamic range:
    >119dB, A-weighted, 22kHz BW
    >117dB, unweighted, 22kHz BW
    Sample Rate 48kHz
    D/A Conversion Dynamic range:
    112dB A-weighted, 109dB unweighted, 22kHz BW
    DSP Effects Available on Input Inserts:
    Automatic gain control
    Notch filter
    Compressor
    Gate
    De-esser
    Advanced feedback suppression

    Available on Output Inserts:
    Automatic gain control
    Ambient noise compensation
    AutoWarmth
    Compressor
    Limiter
    Dynamic Range >110dB A-weighted
    >107dB unweighted
    THD + N 0.003% typical at +4dBu, 1kHz, 0dB gain
    Frequency Response 20 - 20,000 Hz, +/- 0.5dB
    Crosstalk Interchannel: >80dB typical
    Input to Output: >80dB
    Propagation Delay 0.8 msec
    Computer Connectivity Ethernet RJ45 x1
    RS-232 serial port x1
    Operating Systems Supported Windows 2000/XP/Vista/7
    No 64-bit support
    Remote Control Input RJ-45 x2
    Up to 6 ZC-series remotes can be connected to each input

    Wired in series: supports total distance of 300 ft (91.4 m) of CAT 5 cable
    Wired in parallel using ZC-BOB: up to 1,000 ft (304.8 m) each
    Operating Voltage 100-240 VAC, 50/60Hz
    Power Consumption 27 watts
    BTU <92.13
    Dimension (D x W x H) 1U rackmount: 7.75" x 19" x 1.75" (19.69 x 48.26 x 4.45 cm)
    Weight 6.2 lbs (2.81 kg)
    Packaging Info
    Package Weight 8.8 lb
    Box Dimensions (LxWxH) 22.0 x 11.5 x 3.5"
    The user manual for the dbx ZonePRO 1260m 12x6 Digital Zone Processor DBX1260MV can be downloaded in .pdf format if it did not come with your new system processors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other dbx users keep a unique electronic library for dbx system processorss, where you can use our link to download the user manual for the dbx ZonePRO 1260m 12x6 Digital Zone Processor DBX1260MV.
