User manual Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H

Operating instructions and pdf manual for use - Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H User manual, User manual Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H, Dell, U2414H, 23.8, Widescreen, LED, Backlit, IPS, Ultra,


User manual for Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Dell U2414H 23.8
  • Manufacturer: Dell
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Dell
  • Settings and expert assistance
  • Contact Dell service
  • Troubleshooting
  • Warranty information
  • Price: 232 USD
We recommend checking out our discussion threads on the Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H, which address similar problems with connecting and setting up Computer Monitors Dell.



User manual for the Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H

The user manual for the Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

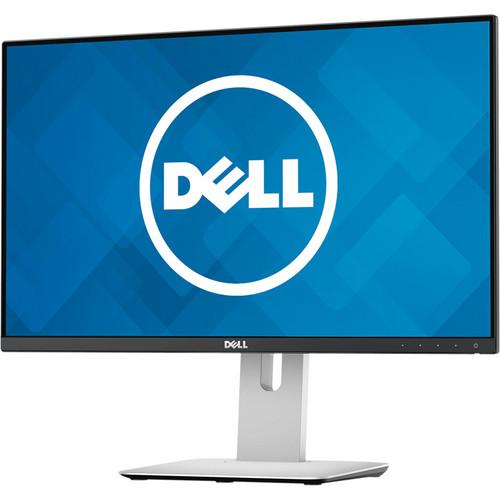

The U2414H 23.8" Widescreen LED Backlit IPS Ultra Sharp Monitor from Dell features a widescreen 23.8" LED-backlit IPS viewable display complete with a 1920 x 1080 resolution. Along with the Full HD resolution, you benefit from a 2,000,000:1 dynamic contrast ratio, an 8 ms response time, and 178° horizontal and vertical viewing angles. Additionally, this display provides enhanced color accuracy as it covers 96% of the sRGB color space along with support for up to 16.77 million colors.

The Dell U2414H comes equipped with two HDMI, one mini DisplayPort, one DisplayPort (version 1.2a), and one DisplayPort output to connect this monitor to a variety of computer configurations. You will also find four USB 3.0 downstream ports and one USB 3.0 upstream port to connect a variety of peripheral devices directly to the monitor. Once configured, you can tilt, pivot, swivel, and adjust the height of the monitor for enhanced viewing comfort.
If you own a Dell computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Dell U2414H 23.8Download user manual for Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H
(PDF file, 2.3 MB)
Additional parameters of the Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H:
Display
Diagonally Viewable Size 23.80" / 60.47 cm
(31.5-inch wide viewable image size)
Aspect Ratio 16:9
Panel Type/Surface In-plane switching, anti glare with hard coat 3H
Optimal Resolution 1920 x 1080 at 60 Hz
Contrast Ratio 1,000:1 (typical)
2,000,000:1 (max, dynamic contrast ratio)
Brightness 250 cd/m² (typical)
Response Time 8 ms (gray to gray)
Viewing Angles Horizontal: 178°
Vertical: 178°
Color Support Color Gamut (typical): 85% (CIE1976), sRGB 96% (average Delta E of>4)
16.77 Million colors
Pixel Pitch 0.274 mm
Backlight Technology LED
Stand Height-adjustable stand, tilt, pivot, swivel and built in cable-management
VESA Compatibility 100 mm
Security Security lock slot (cable sold separately)
Anti-theft stand lock slot (to panel)
Connectivity 2 x HDMI (MHL) connectors
1 x Mini DisplayPort
1 x DisplayPort (version 1.2a)
1 x DisplayPort out (MST)
1 x Audio line out (connect your speakers)
4 x USB 3.0 ports - downstream (4 at the back, 1 with battery charging)
1 x USB 3.0 port - upstream
Voltage Required 100 to 240 VAC / 50 or 60 Hz ± 3 Hz / 1.5 A (typical)
Power Consumption Operational: 16 W (typical), 74 W (maximum)
Standby / Sleep: Less than 0.5 W
Temperature Operating: 32 to 104°F / 0 to 40°C
Non-Operating: -4 to 140°F / -20 to 60°C
Humidity Operating: 10 to 80% (non-condensing)
Non-Operating: 5 to 90% (non-condensing)
Altitude Operating: 16,400 ft / 5,000 m
Non-Operating: 40,000 ft / 12,192 m
Compliance ENERGY STAR 6
EPEAT Gold
TCO Certified Displays
RoHS Compliant
Preset Display Area (HxV) 20.75 x 11.67" / 52.71 x 29.64 cm
Dimensions (HxWxD) With Stand: 19.12~14.00 x 21.23 x 7.28" / 48.56~35.56 x 53.92 x 18.49 cm
Without Stand: 12.64 x 21.23 x 1.80" / 32.11 x 53.92 x 4.57 cm
Weight Panel Only: 7.95 lb / 3.61 kg
Packaging Info
Package Weight 17.35 lb
Box Dimensions (LxWxH) 26.0 x 16.0 x 10.0"
The user manual for the Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Dell users keep a unique electronic library for Dell computer monitorss, where you can use our link to download the user manual for the Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H.

The user manual lists all of the functions of the Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Dell service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Dell U2414H 23.8" Widescreen LED Backlit IPS Ultra U2414H. User manuals are also available on the Dell website under Computers & Solutions - Monitors & Displays - Computer Monitors.
