User manual Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415

Operating instructions and pdf manual for use - Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415 User manual, User manual Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415, Dell, U2415, 24, Widescreen, LED, Backlit, IPS, Monitor, U2415


User manual for Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Dell U2415 24
  • Manufacturer: Dell
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your Dell
  • Settings and expert assistance
  • Contact Dell service
  • Troubleshooting
  • Warranty information
  • Price: 279 USD
We recommend checking out our discussion threads on the Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415, which address similar problems with connecting and setting up Computer Monitors Dell.



User manual for the Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415

The user manual for the Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415 provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

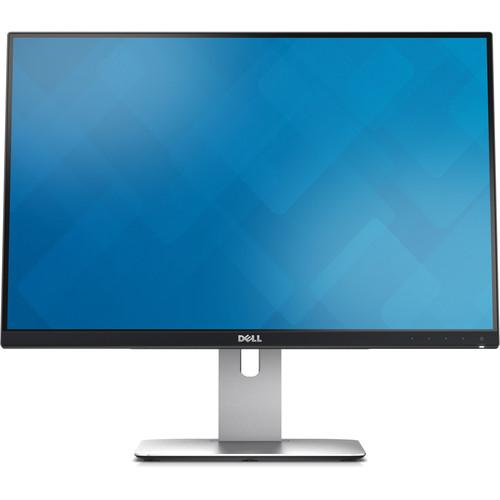

This UltraSharp U2415 24" Widescreen LED Backlit IPS Monitor from Dell utilizes in-plane switching technology to produce 178° horizontal and vertical viewing angles. The widescreen display features a 16:10 aspect ratio with a 1920 x 1200 resolution, a 1,000:1 contrast ratio, 300 cd/m² brightness rating, and a 6 ms response time for crisp, clear picture quality.

The U245 comes equipped with a variety of connectors including HDMI, DisplayPort, and Mini DisplayPort inputs to connect this monitor to a variety of computer configurations. Additionally, this Dell monitor features a USB 3.0 hub with five downstream and one upstream port to connect peripherals such as external hard drives, tablets, and more.
If you own a Dell computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Dell U2415 24Download user manual for Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415
(PDF file, 2.7 MB)
Additional parameters of the Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415:
Display
Viewable Size (diagonal) 24.1" / 61.1 cm
Aspect Ratio Widescreen 16:10
Panel Type/Surface In-plane switching, anti glare with hard coat 3H
Optimal Resolution 1920 x 1200 at 60 Hz
Contrast Ratio 1,000:1 (typical)
2,000,000:1 (max, dynamic contrast ratio)
Brightness 300 cd/m² (typical)
50 cd/m² (minimum)
Response Time Fast Mode: 6 ms gray-to-gray (typical)
Normal Mode: 8 ms gray-to-gray (typical)
On/Off: 19 ms black-to-white (typical)
Viewing Angles Horizontal: 178°
Vertical: 178°
Color Gamut 91% (CIE1976)
99% sRGB coverage
Colors Supported 16.78 million
Pixel Pitch 0.27 x 0.27 mm
Backlight Technology LED
Display Type Widescreen flat panel display
Display Screen Coating Antiglare with hard-coating 3H
Stand
Height Adjustment Range 4.5" / 115 mm
Tilt Yes
Pivot Clockwise and counter-clockwise
Swivel Yes
VESA Mount Standard 100 mm
Electrical
Voltage Required 100 to 240 VAC / 50 or 60 Hz ± 3 Hz / 1.5 A (typical)
Power Consumption Typical: 23 W
Maximum: 75 W
Standby/Sleep: Less than 0.5 W
Connectivity
HDMI 2 x HDMI (MHL) connectors
Mini DisplayPort 1
DisplayPort 1.2 1
DisplayPort Out (MST) 1
Audio Line Out 1 (connection to speakers)
USB Ports 5 x USB 3.0 downstream ports (1 powered port for charging mobile devices)
1 x USB 3.0 upstream port
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Non-Operating Temperature Storage: -4 to 140°F / -20 to 60°C
Shipping: -4 to 140°F / -20 to 60°C
Operating Humidity 10 to 80% (non-condensing)
Non-Operating Humidity Storage: 5 to 90% (non-condensing)
Shipping: 5 to 90% (non-condensing)
Operating Altitude 16,404 ft / 5,000 m
Non-Operating Altitude 40,000 ft / 12,192 m
Dimensions & Weight
Dimensions With Stand: 15.86-20.39 x 20.95 x 8.07" / 40.28-51.79 x 53.21 x 20.50 cm
Without Stand: 13.80 x 20.95 x 1.80" / 35.05 x 53.21 x 4.57 cm
Weight Panel Only (for VESA Mount): 9.35 lb / 4.25 kg
Packaging Info
Package Weight 19.4 lb
Box Dimensions (LxWxH) 27.0 x 18.0 x 10.0"
The user manual for the Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415 can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Dell users keep a unique electronic library for Dell computer monitorss, where you can use our link to download the user manual for the Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415.

The user manual lists all of the functions of the Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Dell service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Dell U2415 24" Widescreen LED Backlit IPS Monitor U2415. User manuals are also available on the Dell website under Computers & Solutions - Monitors & Displays - Computer Monitors.
